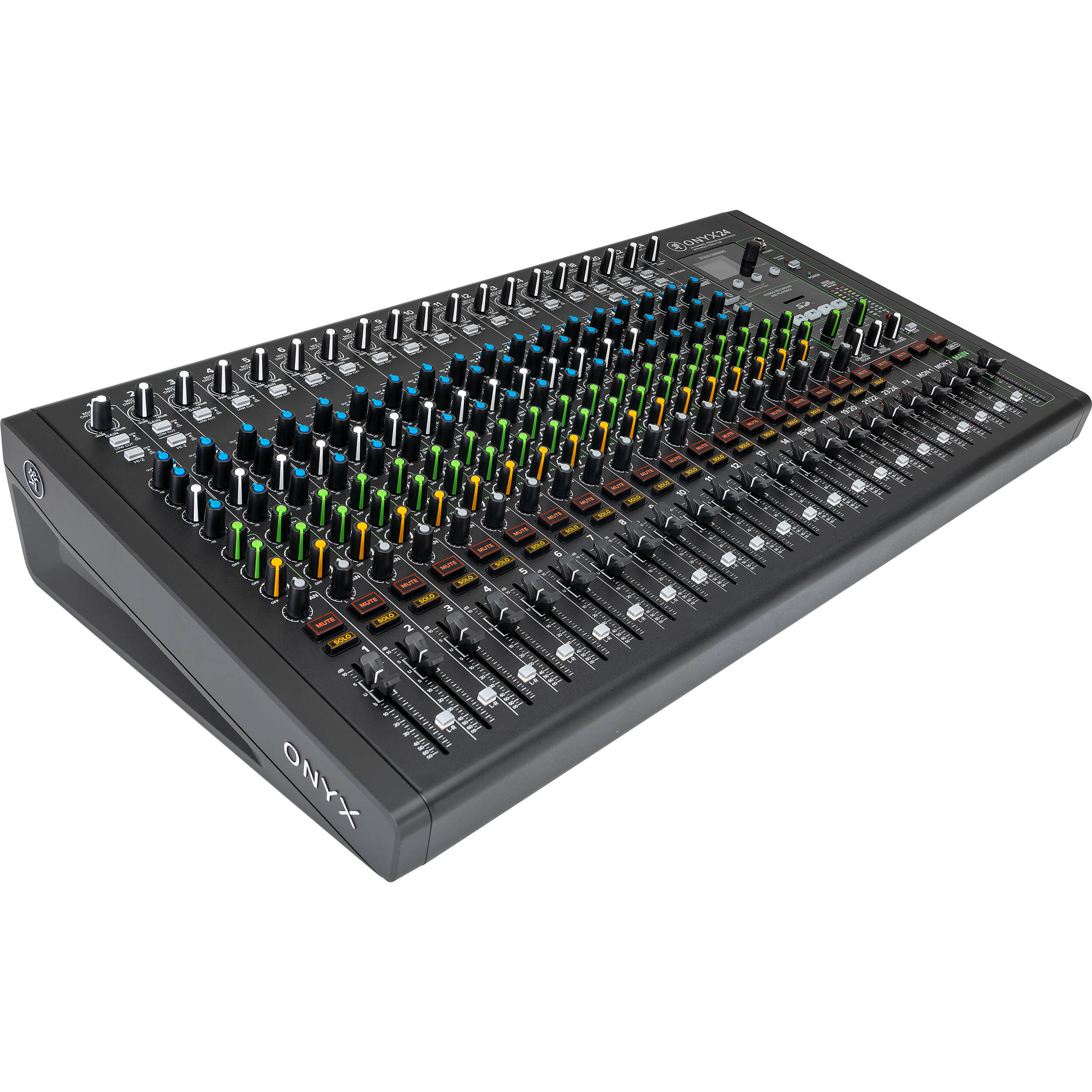

Mackie Onyx24 24-Channel Premium Analog Mixer with Multitrack USB

Model #ONYX24

Mackie Warranty
Mackie onyx24 1
Mackie onyx24 1
Mackie onyx24 4
Mackie onyx24 3
Mackie onyx24 2
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Coming Soon!

This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

Recording

Media Support SD
Max Multitrack Recording 24 Tracks

Power

Power Consumption 55 W
AC Power Connector 1 x IEC Input

Physical

Dimensions 25.2 x 14 x 4.5" / 640.1 x 355.6 x 114.3 mm
Rack Mountable No
Weight 21.5 lb / 9.8 kg

Mixer

Number of Analog Input Channels 24 (14 Mono / 5 Stereo)
Meters Main Meter:
2 x 12-Segment LED
Faders 19 x 2.4" / 60 mm Channel Fader
1 x 2.4" / 60 mm FX Fader
2 x 2.4" / 60 mm Bus/Subgroup Fader
1 x 2.4" / 60 mm Master Fader
Mix Routing 1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Analog Output Channels 2 x Stereo Master Output
2 x Stereo Control Room/Monitor Output
2 x Mono Aux Send Output
1 x Mono FX Send Output
1 x Stereo Headphone Output
Number of Mic Preamps 18
Built-In Effects None
Channel Output/Source Monitoring None
Solo/Mute Solo per Input Channel
Mute per Input Channel, Bus, FX Bus, Master
Filters Input Channels:
1 x High-Pass: 100 Hz
EQ Parameters Mono Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 100 Hz to 8 kHz
Low: ±15 dB at 80 Hz
Stereo Channels:
High: ±15 dB at 12 kHz
Mid: ±15 dB at 2.5 kHz
Low: ±15 dB at 80 Hz
EQ 3-Band Semi-Parametric (Mono Channels)
3-Band Shelving/Notch/Peak (Stereo Channels)
Sidechain Filters None
Dynamic Processing None
Input Polarity None
Input Pad None
Gain/Trim Range +60 dB
Meter Range -30 dB to +20 dB Peak/Clip

Digital Audio

Sample Rates 96 kHz

Connectivity

Phantom Power +48 V (Applied to All Inputs)
Analog Outputs 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output
1 x 1/4" TRS Balanced/Unbalanced FX Send
Analog Inputs 18 x XLR 3-Pin Balanced Mic Input
14 x 1/4" TRS Balanced/Unbalanced Line Input
4 x 1/4" TRS Unbalanced Line Insert
2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input
10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1 x 1/4" TRS Footswitch Input
USB 1 x USB Type-B (Audio Playback, Host Connection, Recording)
Product Highlights
  • Onyx Preamps
  • British-Style Perkins 3-Band EQ
  • Premium Analog Circuitry
  • Ultralow-Noise Design
  • Record & Playback to/from Mac/PC via USB
  • Studio Command Full-Color Display
  • Robust Digital Effects Engine
  • Dedicated Control Room Output
  • 12-Segment Stereo Meters
  • Includes Powerful Software and Plug-Ins
In The Box
  • Mackie Onyx24 24-Channel Premium Analog Mixer with Multitrack USB
  • Power Cord
  • Limited 1-Year Warranty
