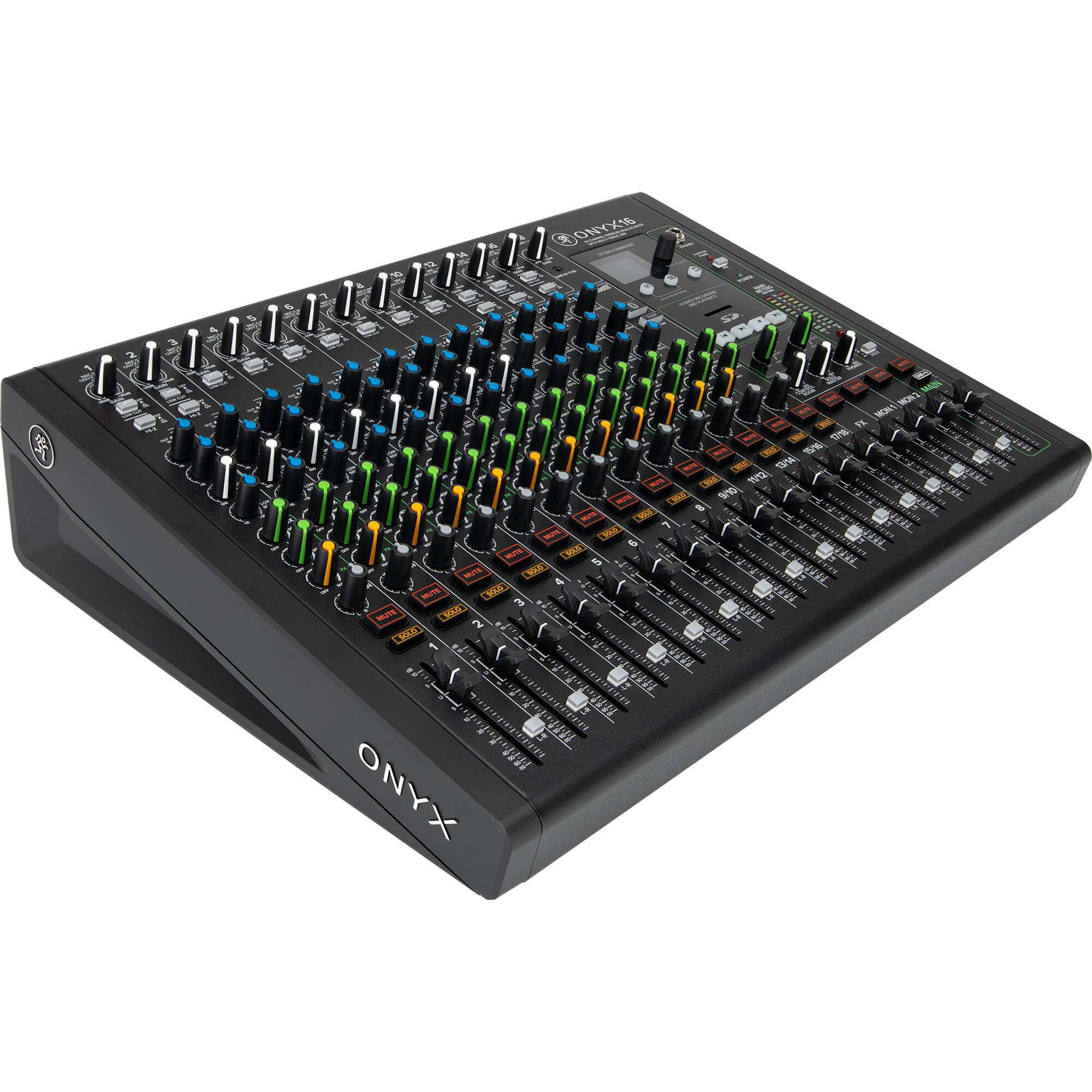

Mackie Onyx16 16-Channel Premium Analog Mixer with Multitrack USB

Name: MACKIE Onyx16 16-Channel Premium Analog Mixer with Multitrack USB
Brand: MACKIE
SKU: GT-0488110

Model #ONYX16

MACKIE Warranty

Greentoe Guarantee

Guaranteed Brand New Products
All Products Sold by Manufacturer Authorized Retailers
30 Day Return Policy
Free Shipping
No Additional Fees

Coming Soon!

This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.

Specifications

Specifications

Signal Processing

Solo/Mute	Solo per Input Channel Mute per Input Channel, Bus, FX Bus, Master
Gain/Trim Range	+60 dB
Dynamic Processing	None
EQ	3-Band Semi-Parametric 3-Band Shelving/Notch/Peak
EQ Parameters	Mono Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 100 Hz to 8 kHz Low: ±15 dB at 80 Hz Stereo Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 2.5 kHz Low: ±15 dB at 80 Hz
Filters	Input Channels: 1 x High-Pass: 100 Hz

Recording

Max Multitrack Recording	18 Tracks
Media Support	SD

Power

Power Consumption	45 W
AC Power Connector	1 x IEC Input

Physical

Weight	15.2 lb / 6.9 kg
Dimensions	18.7 x 14 x 4.5" / 475 x 355.6 x 114.3 mm

Mixer

Number of Analog Input Channels	18 (8 Mono / 5 Stereo)
Number of Mic Preamps	12
Analog Output Channels	2 x Stereo Master Output 2 x Stereo Control Room/Monitor Output 2 x Mono Aux Send Output 1 x Mono FX Send Output 1 x Stereo Headphone Output
Mix Routing	1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
Faders	13 x 2.4" / 60 mm Channel Fader 1 x 2.4" / 60 mm FX Fader 2 x 2.4" / 60 mm Bus/Subgroup Fader 1 x 2.4" / 60 mm Master Fader
Meters	Main Meter: 2 x 12-Segment LED
Meter Range	-30 dB to +20 dB Peak/Clip

Digital Audio

Bit Depth	24-Bit
Sample Rates	96 kHz

Connectivity

Phantom Power	+48 V (Applied to All Inputs)
Wireless Connectivity	Bluetooth
Analog Inputs	12 x XLR 3-Pin Balanced Mic Input 8 x 1/4" TRS Balanced/Unbalanced Line Input 4 x 1/4" TRS Unbalanced Line Insert 2 x 1/4" TRS Balanced/Unbalanced Hi-Z Input 10 x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs) 1 x 1/4" TRS Footswitch Input
Analog Outputs	2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair) 2 x 1/4" TRS Balanced/Unbalanced Mono Aux/Monitor Output 1 x 1/4" TRS Balanced/Unbalanced FX Send
USB	1 x USB Type-B (Audio Playback, Host Connection, Recording)

Product Highlights

Onyx Preamps
British-Style Perkins 3-Band EQs
Premium Analog Circuitry
Ultralow-Noise Design
Record & Playback to/from Mac/PC via USB
Studio Command Full-Color Display
Robust Digital Effects Engine
Dedicated Control Room Output
12-Segment Stereo Meters
Includes Powerful Software and Plugins

In The Box

Mackie Onyx16 16-Channel Premium Analog Mixer with Multitrack USB
Power Cord
Limited 1-Year Warranty
