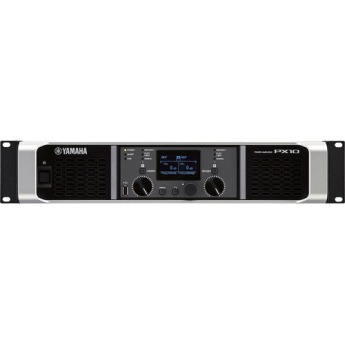

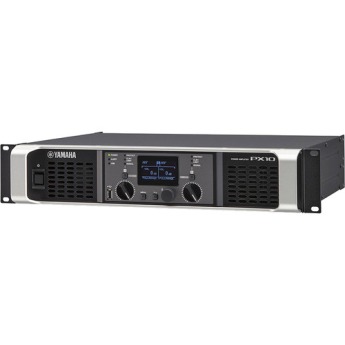

Yamaha PX10 Stereo Power Amplifier (1000W at 8 Ohms)

Name: Yamaha PX10 Stereo Power Amplifier (1000W at 8 Ohms)
Brand: Yamaha
SKU: GT-0147133
Price: 949.0 USD
Availability: OutOfStock

Model: PX10

1/1

1000W per Channel at 8 Ohms
Efficient Class-D Amplifier
Custom LSI Chip with PLL Technology
Digital Routing of Inputs & Outputs
XLR, 1/4", SpeakON & Binding Post
PEQ, Crossover, Filters, Delay
D-Contour Multi-Band Dynamic Processing

Authorized RetailersManufacturer warranty included

New Products OnlyWe never sell used merchandise

Free ShippingOn most items

30 Days Returns*Minimum return policy

"More Retailers See Haggling as a Price of Doing Business. "View article

Kevybean04

5/5

Best price, Brand New amd easy to oder

"Best price and very easy to order."View article

1ezbuyer

5/5

Great Prices and Great Experience

"I’ve purchased two TVs through Greentoe, and both experiences have been excellent. Best prices I could find anywhere, and both TVs were delivered right to my door without any issues. My only mistake was forgetting that Greentoe offers a lot more than just TVs! I recently purchased applioances elsewhere and afterward realized I should have checked Greentoe first. Greentoe will definitely be one of the first places I check before making a major purchase. Let's get the word out, and let the free market dictate prices. Craig Barton Scottsdale AZ"View article

Specifications

General Information

Output Power	1000 W per channel at 8 Ohms 1200 W per channel at 4 Ohms 700 W per channel at 2 Ohms
Amplifier Type	Class-D, balanced output circuit (BLT)
THD + N	0.1% at 1 kHz, 10 W 0.3% at 1 kHz, half power
Frequency Response	20 Hz to 20 kHz, ±1.0 dB (1 W at 8 Ohms)
Crosstalk	≤ -60 dB
S/N Ratio	101 dB
Voltage Gain / Sensitivity	At 8 Ohms, Maximum Volume: 32.0 dB / +9.3 dBu (Gain Setting: 32 dB) 26.0 dB / +15.3 dBu (Gain Setting: 26 dB) 37.3 dB / +4 dBu (Gain Setting: 4 dB) 27.3 dB / +14 dBu (Gain Setting: 14 dB)
Cooling	2 x 16-step variable-speed fan (front-to-rear flow)
Maximum Input Voltage	+24 dBu
Input Impedance	20 kOhms (Balanced) 10 kOhms (Unbalanced)
Sampling Frequency	48 kHz
Converters	A/D: 24-bit linear, 128 times over-sampling D/A: 24-bit linear, 128 times over-sampling
Signal Processing	Input summingD-contour: FOH / MAINMonitorOFFDelay: 0 to 74 msHPF / LPF: cutoff frequency 20 Hz to 20 kHz with polarity controlSpeaker Processor: 6-band PEQ / limiter / delay
Latency	1.5 ms (analog input to speaker)
User Presets	8 user presets
Factory Presets	Speaker presets for Yamaha passive speakers

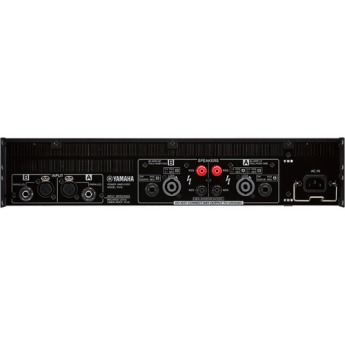

Connectors	Analog Input 2 x XLR-3-31 2 x 1/4 TRS Speakers 2 x Neutrik SpeakOn NL4 2 x pairs of binding posts 2 x 1/4" TS 1 x AC inlet with AC cord clamp 1 x USB 2.0 Type-A (female)
Power Requirements	120 VAC / 60 Hz
Power Consumption	310 W at 4 Ohms, 1/8 maximum power 60 W at 4 Ohms, Idle
Operating Temperature	32 to 104°F / 0 to +40°C
Storage Temperature	-4 to 140°F / -20 to +60°C
Dimensions (W × H × D)	18.90 x 3.46 x 15.25" / 480 x 88 x 387.4 mm
Weight	16.31 lb / 7.4 kg

1000W per Channel at 8 Ohms
Efficient Class-D Amplifier
Custom LSI Chip with PLL Technology
Digital Routing of Inputs & Outputs
XLR, 1/4", SpeakON & Binding Post
PEQ, Crossover, Filters, Delay
D-Contour Multi-Band Dynamic Processing
