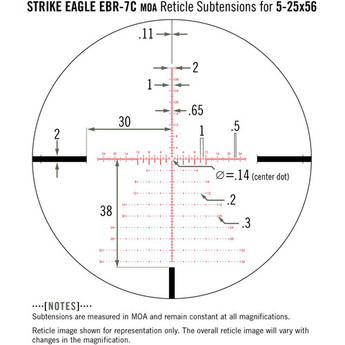

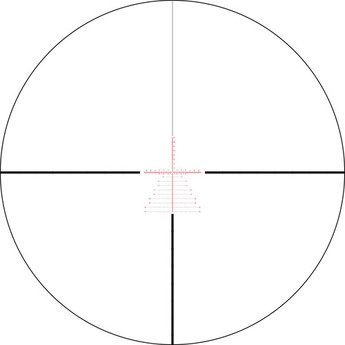

| Reticle Type | EBR-7C MOA Reticle (First Focal Plane) |
|---|---|
| Illumination | Illuminated |
| Brightness Settings | Adjustable Brightness (11 Levels) |
| Exit Pupil Diameter | 5x: 11.2 mm 25x: 2.2 mm |
|---|---|
| Magnification | 5 to 25x |
| Eye Relief | 3.7" / 94 mm |
| Objective Lens Diameter | 56 mm |
| Field of View | 5x: 24' @ 100 yd / 8 m @ 100 m 25x: 5.2' @ 100 yd / 1.7 m @ 100 m |
| Box Dimensions (LxWxH) | 18.6 x 4.6 x 3.8" |
|---|---|
| Package Weight | 3.03 lb |
| Battery | 1 x CR2032 |
|---|---|
| Material | Aluminum |
| Weight | 30.4 oz / 862 g |
| Dimensions | Length: 14.6" / 370.8 mm |
| Maintube Diameter | 34 mm |
| Windage Adjustment | 78 MOA |
|---|---|
| Parallax Correction | Yes, 15 yd / 13.7 m to Infinity |
| Impact Point Correction | 1/4 MOA per Click |
| Elevation Adjustment | 110 MOA |
| Fogproof | Yes, Nitrogen Filled |
|---|---|
| Water Resistance | Waterproof |
