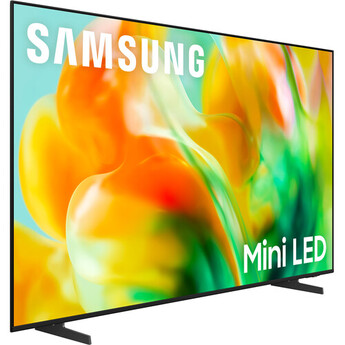

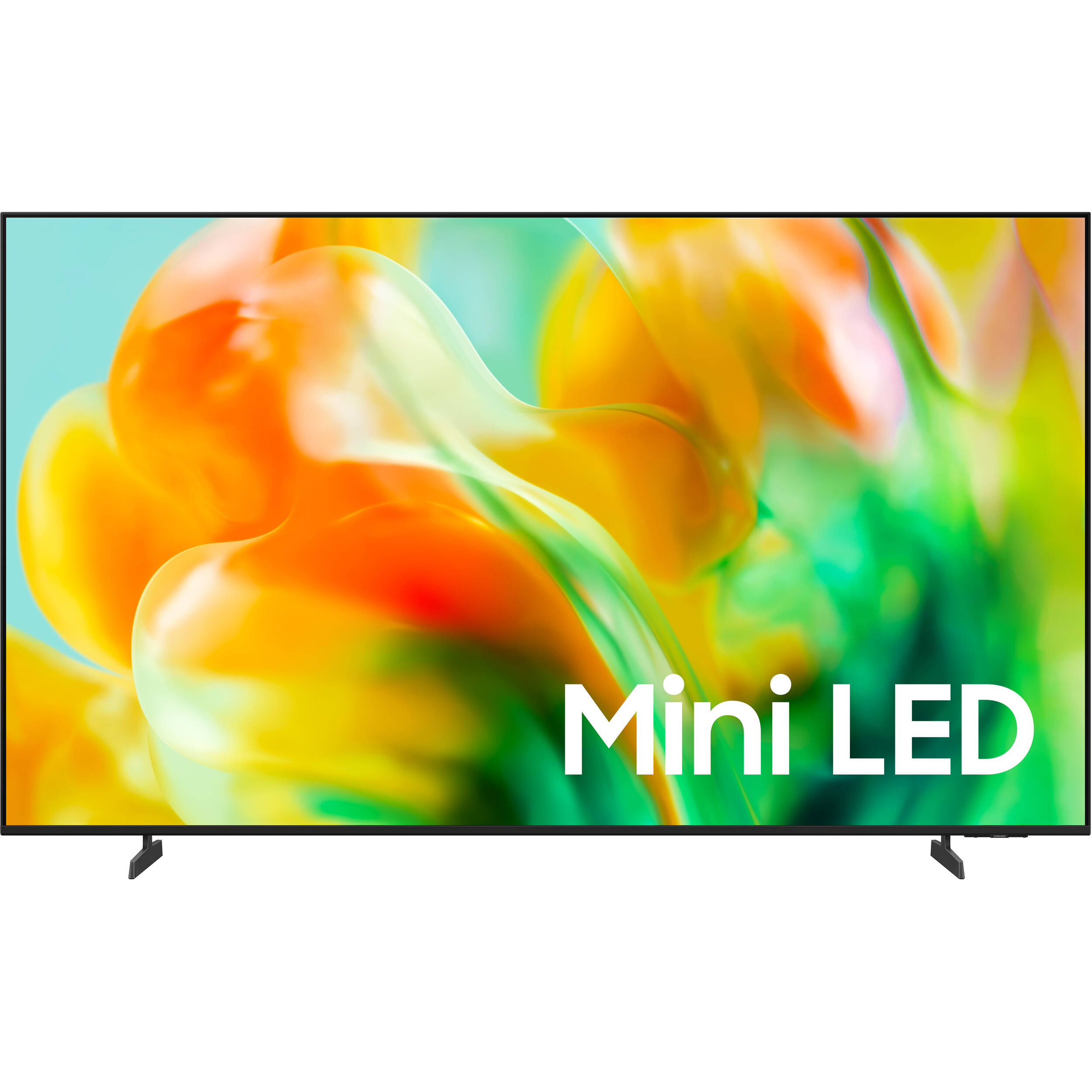

Samsung M80H 75" 4K HDR Smart Mini-LED TV
Model: UN75M80HAFXZA








| Video System | NTSC / ATSC |
|---|---|
| TV Tuner | Yes (ATSC) |
| Built-In Speakers | Yes: 2x 10 W |
|---|
| Box Dimensions (LxWxH) | 71 x 43 x 6" |
|---|---|
| Package Weight | 63.5 lb |
| A/V Inputs | Antenna / HDMI |
|---|---|
| A/V Outputs | No |
| HDCP Support | Yes |
| Wireless | Wi-Fi 5 (802.11ac) / Bluetooth 5.3 *Built-In |
| Ethernet I/O | 1x RJ45 (Unspecified Ethernet) |
| Virtual Assistant | Apple AirPlay, Alexa Built-in, Works with Google Assistant, Samsung Bixby, SmartThings |
| Smart TV | Yes: Tizen |
| Display Size | 74.5" |
| Native Resolution | 3840 x 2160 |
| Panel Type | LCD with Mini-LED Backlight |
| HDR Support | Yes: HDR10+/Hybrid Log Gamma |
| Variable Refresh Technology | FreeSync Premium, Variable Refresh Rate (VRR) |
| Certifications | CEC, FCC |
|---|---|
| Remote Included | Yes |
| VESA Mounting-Hole Pattern | 400 x 300 mm |

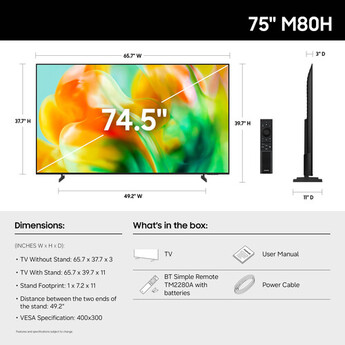

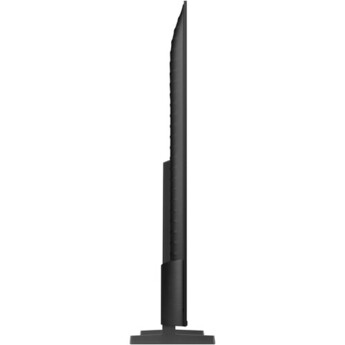

| Dimensions | 65.7 x 37.7 x 3" / 1668.8 x 957.6 x 76.2 mm (without Stand) 65.7 x 39.7 x 11" / 1668.8 x 1008.4 x 279.4 mm (without Stand) 49.2" / 1249.7 mm (Distance Between Stand Legs) 31.2" / 792.5 mm (with Stand in Narrow Position) |
| Weight | 48.5 lb / 22.0 kg (with Stand) 47.6 lb / 21.6 kg (without Stand) |
| Input Power | 110 to 120 VAC, 50 / 60 Hz |
|---|---|
| Power Consumption | Standby: 0.5 W |
| Lighting System | Mini-LED Backlight |
|---|---|
| Native Resolution | 3840 x 2160 |
| Display Orientation | Landscape |
| Panel Type | LCD with Mini-LED Backlight |
| Aspect Ratio | 16:9 |
| Size | 74.5" |
| HDR Support | Yes: HDR10+/Hybrid Log Gamma |
| Refresh Rate | 144 Hz |
| Variable Refresh Technology | FreeSync Premium, Variable Refresh Rate (VRR) |
| Auto Low Latency Mode (ALLM) | Yes |
| Smart TV | Yes: Tizen |
|---|---|
| Virtual Assistant | Apple AirPlay, Alexa Built-in, Works with Google Assistant, Samsung Bixby, SmartThings |
| HDCP Support | Yes |
|---|---|
| Audio Return Channel (ARC) | eARC |
| Wireless | Wi-Fi 5 (802.11ac) / Bluetooth 5.3 *Built-In |
| USB I/O | 1x USB-A (Unspecified Version) |
| Ethernet I/O | 1x RJ45 (Unspecified Ethernet) |
| Multi-Input Support (PIP/PBP) | No |

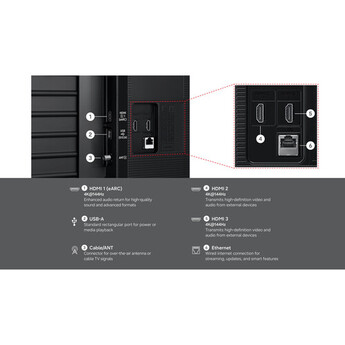

| A/V Inputs | 3x HDMI 1x Coaxial F-Type (RF Antenna) |
| A/V Outputs | No |
