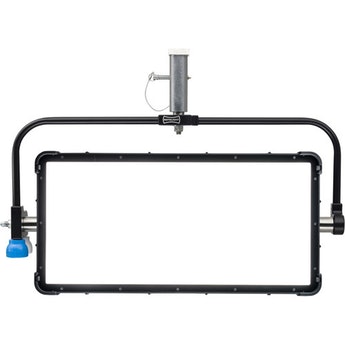

Rotolight Titan X2 LED DMX Light Panel (Pole Yoke)

Model #RL-TITAN-X2-P

Rotolight Warranty
Rotolight rl titan x2 p 1
Rotolight rl titan x2 p 1
Rotolight rl titan x2 p 2
Rotolight rl titan x2 p 3
Rotolight rl titan x2 p 4
Rotolight rl titan x2 p 5
Rotolight rl titan x2 p 6
Rotolight rl titan x2 p 7
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Coming Soon!

This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

Yoke

Yoke Type Pole Operated
Tilt 90°

Remote Operation

Remote Control Type DMX, Wired Remote
Wireless Range 30' / 9.1 m

Power

Power Supply Output 24 VDC
Max Power Consumption 420 W
Power Source AC Adapter, External Battery
DC Input Power 20.5 to 26 VDC
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Power Supply Dimensions 14.9 x 5.6 x 3.2" / 379.0 x 141.0 x 82.0 mm
Power Supply Weight 130.51 oz / 3.7 kg
Power Supply Power Connector powerCON Input

Physical

Operating Temperature -4 to 113°F / -20 to 45°C
Certifications CE, FCC, TUV, UL, as per Manufacturer
IP Rating IP20

Mounting

Fixture Mount 1-1/8" Stud

Light Fixture

Fixture Weight 23.37 lb / 10.6 kg
Fixture Dimensions Fixture: 27.8 x 13.8 x 5.9" / 705.0 x 350.0 x 150.0 mm
Expected Lamp Life 50000 Hours
Photometrics 3200K:
1442.3 fc / 15,525 lux at 3.28' / 1 m
206.2 fc / 2220 lux at 9.84' / 3 m
88.5 fc / 953 lux at 16.4' / 5 m
50.4 fc / 543 lux at 22.97' / 7 m
33.9 fc / 365 lux at 29.53' / 9 m
5600K:
1560.7 fc / 16,800 lux at 3.28' / 1 m
224.4 fc / 2415 lux at 9.84' / 3 m
91.3 fc / 983 lux at 16.4' / 5 m
48.7 fc / 524 lux at 22.97' / 7 m
32.6 fc / 351 lux at 29.53' / 9 m
Housing Material Metal
Display LCD Touchscreen
Dimming Yes, 0 to 100% (Continuous)
Color Accuracy Standard CRI 95 at 5600K
CRI 95 at 3200K
TLCI 98
Color Temperature 2800 to 10,000K
Beam Angle 68 to 150°

Connectors

DMX Connector 5-Pin XLR
Power Input Connector powerCON
Product Highlights
  • Panel Surface Area: 25.6 x 11.8"
  • Variable 68 to 150° Beam Spread
  • Variable Color Temperature: 2800-10,000K
  • CRI: 95, TCLI: 98, Skin Tone R15: 98
  • Full RGBWW Color Gamut
  • Hue, Saturation & Diffusion Control
  • On-Board & Wired DMX Dimming from 1-100%
  • Local and 5-Pin DMX Control
  • Integrated Elinchrom Skyport Receiver
  • 110-240 VAC Power Supply
In The Box
  • Rotolight Titan X2 LED DMX Light Panel (Pole Yoke)
  • 110-240V Power Supply
  • Limited 1-Year Warranty
