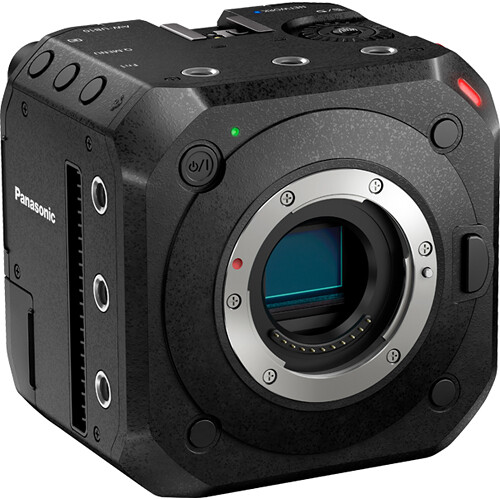

Panasonic AW-UB10 4K Multipurpose Box Camera
Model: AW-UB10P








| Type | Optional, Not Included |
|---|
| Internal Recording | 4096 x 2160 3328 x 2496 3840 x 2160 1920 x 1080p |
|---|---|
| Built-In Microphone | Stereo |
| Gamma Curve | HDR-HLG, Panasonic V-Gamut, Panasonic V-Log, Rec 2100 HLG, Rec709, V-Log |
| Fast-/Slow-Motion Support | Yes |
| Video Output | via HDMI / SDI/BNC 3840 x 2160 1920 x 1080p |
| Box Dimensions (LxWxH) | 9.4 x 7.7 x 7.3" |
|---|---|
| Package Weight | 3.435 lb |
| Mobile App Compatible | No |
|---|---|
| Image Sensor | Four Thirds |
| Lens Mount | Micro Four Thirds |
| Effective Sensor Resolution | 10.3 Megapixel |
| Image Stabilization | No |
| ISO/Gain Sensitivity | Native: 160 to 51,200 (80 to 204,800 Extended) |
| Max Video Output | via HDMI / SDI/BNC Up to UHD 4K |
| Max Recording Modes | Up to DCI 4K |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Mobile App Compatible | No |
|---|---|
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Internal Storage | No |
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O | 1x Barrel |
| Other I/O | 1x USB-C 1x BNC (Timecode) Input/Output 1x BNC (Genlock) Input/Output 1x RJ45 (LAN) Input/Output |
| Wireless | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Effective Sensor Resolution | Effective: 10.3 Megapixel Actual: 11.9 Megapixel |
|---|---|
| Lens Mount | Micro Four Thirds |
| Image Sensor | Four Thirds MOS |
| Image Stabilization | No |
| Capture Type | Stills & Video |
| Lens Communication | Yes |
| Shoe Mount | 1x Cold Shoe |
|---|---|
| Accessory Mounting Thread | 9x 3/8"-16 |
| Materials | Aluminum |
| Dimensions (W x H x D) | 3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions) |
| Weight | 1.2 lb / 545 g (Body Only) |
| Tripod Mount | 2x 3/8"-16 Female (Bottom) |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus |
|---|
| Shutter Speed | 1/8000 to 1 Second 1/16000 to 1/2 Second in Movie Mode |
|---|---|
| Shutter Type | Electronic Rolling Shutter |
| Advertised Dynamic Range | 13 Stops |
| ISO/Gain Sensitivity | Native: 160 to 51,200 (80 to 204,800 Extended) |
