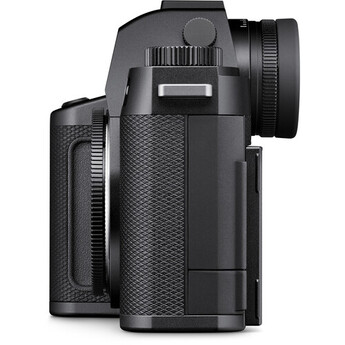

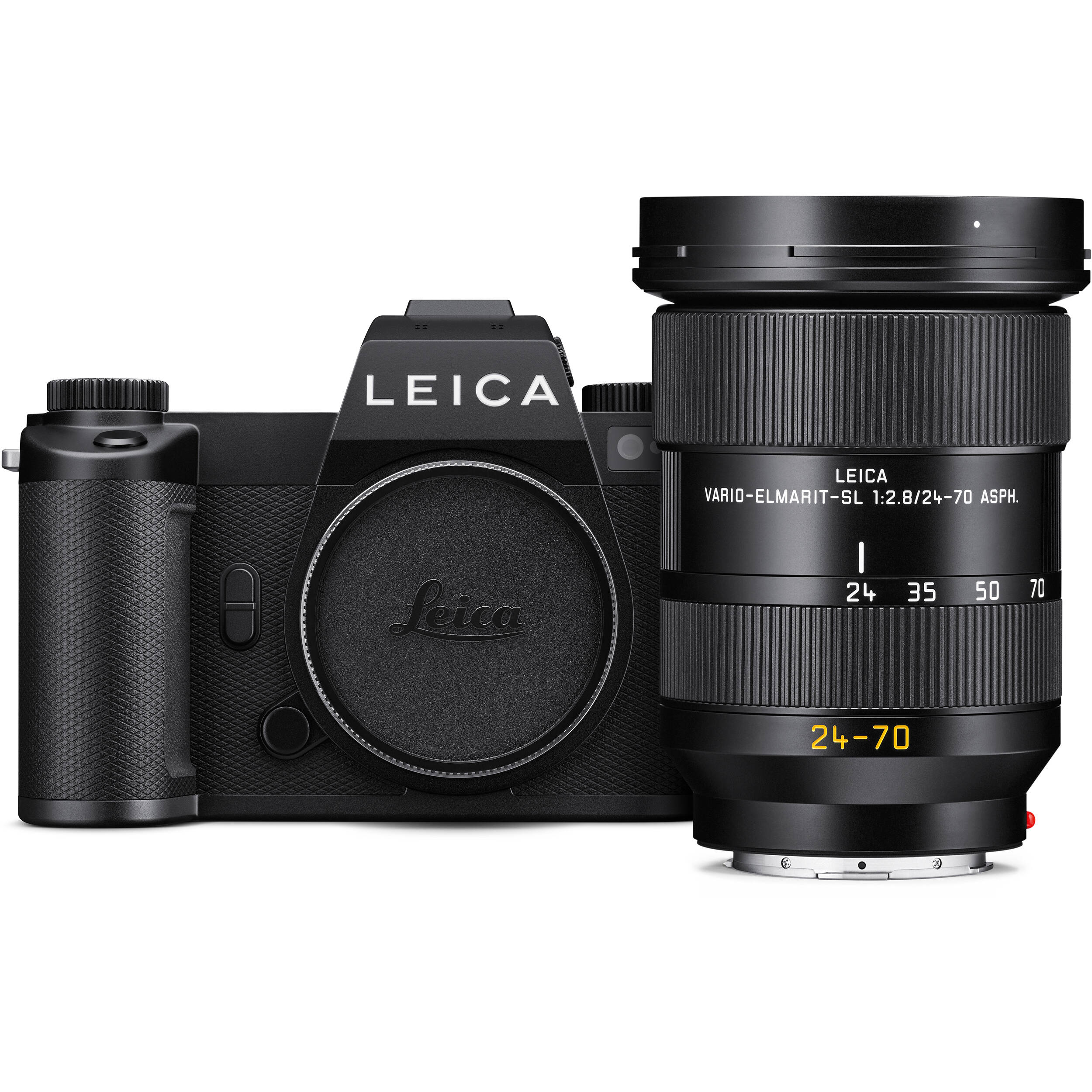

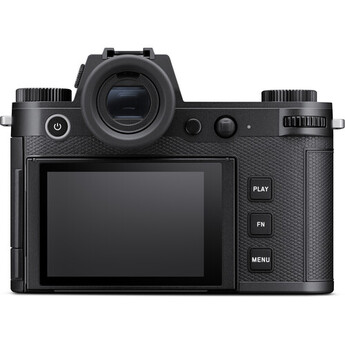

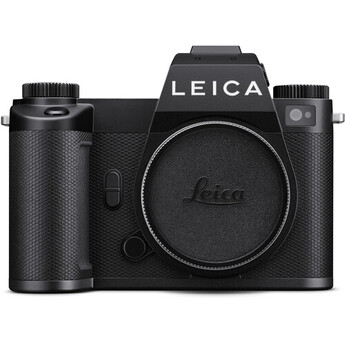

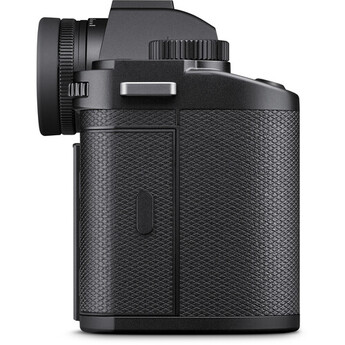

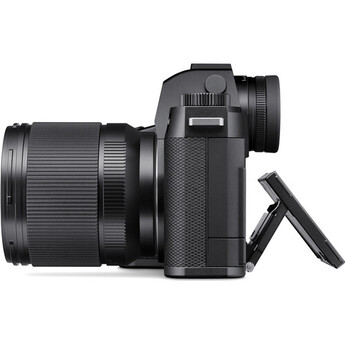

Leica SL3-P Mirrorless Camera with 24-70mm Lens
Model: 10692








| Resolution | 5,760,000 Dot |
|---|---|
| Type | Electronic |
| Diopter Adjustment | -4 to +2 |
| Magnification | Approx. 0.76x |
| Coverage | 100% |
| Eye Point | 21 mm |
| IP Streaming | No |
|---|---|
| Recording Limit | No |
| Gamma Curve | HDR-HLG |
| Fast-/Slow-Motion Support | Slow-Motion Only |
| Video Output | Raw via HDMI 8128 x 5418 at 23.98 fps 7232 x 4820 at 25/29.97 fps* 8128 x 4302 at 23.98/25/29.97 fps 4752 x 3568 at 23.98/25/29.97/50/59.94 fps *Sensor Crops During Output |
| Internal Recording | H.265 Long GOP/MOV 4:2:0 8/10-Bit 8064 x 5376 at 23.98/24.00 fps (300 Mb/s) 7200 x 4800 at 23.98/24.00/25/29.97 fps (300 Mb/s) 7680 x 4320 at 23.98/24.00/25/29.97 fps (300 Mb/s) 8128 x 4288 at 23.98/24.00/25/29.97 fps (300 Mb/s) 6432 x 4288 at 23.98/24.00/25/29.97 fps (300 Mb/s) 5888 x 3312 at 23.98/24.00/25/29.97 fps (200 to 300 Mb/s) 4096 x 2160 at 23.98/24.00/25/29.97/30.00/47.95/48.00/59.94/60.00/100/119.88/120 fps (200 to 300 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/30.00/47.95/48.00/59.94/60.00/100/119.88/120 fps (100 to 150 Mb/s) 1920 x 1440 at 23.98/24.00/25/29.97/50/59.94 fps (8.5 to 12.5 Mb/s) 1920 x 1280 at 23.98/24.00/25/29.97/50/59.94 fps (9.5 to 13.5 Mb/s) 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps (8.5 to 11.5 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps (7.5 to 10.5 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/30.00/47.95/48.00/59.94/60.00/100/119.88/120 fps (100 to 150 Mb/s) H.265 Long GOP/MP4 4:2:0 10-Bit 7680 x 4320 at 23.98/25/29.97 fps (300 Mb/s) 3840 x 2160 at 50/59.94 fps (100 Mb/s)* *Sensor Crops During Recording at Max Frame Rates ProRes 422 HQ 5760 x 3040 at 23.98/24.00/25/29.97 fps (1539 to 1924 Mb/s) 4736 x 3552 at 23.98/24.00/25/29.97 fps (1479 to 1848 Mb/s) 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps (788 to 1944 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/119.88/120 fps (788 to 1944 Mb/s) H.264 ALL-Intra/MOV 4:2:2 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (150 to 800 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/30.00/47.95/48.00/59.94/60.00/100/119.88/120 fps (100 to 150 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/30.00/47.95/48.00/59.94/60.00/100/119.88/120 fps (100 to 400 Mb/s) H.264 Long GOP/MP4 4:2:0 8/10-Bit 3840 x 2160 at 23.98/25/29.97 fps (100 Mb/s) 1920 x 1080 at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)* *Sensor Crops During Recording at Max Frame Rates |
| Audio Recording | MOV: 24-Bit 48 kHz LPCM Audio MP4: 16-Bit 48 kHz AAC Audio |
| Built-In Microphone | Stereo |
| Image File Format | DNG, JPEG |
|---|---|
| Bit Depth | 14-Bit |
| Aspect Ratio | 3:2 |
| Package Weight | 4.8 lb |
|---|---|
| Box Dimensions (LxWxH) | 10.8 x 8.1 x 6.6" |
| Resolution | 2,332,800 Dot |
|---|---|

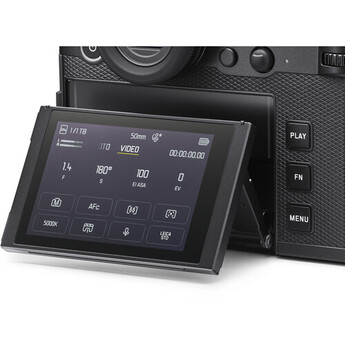

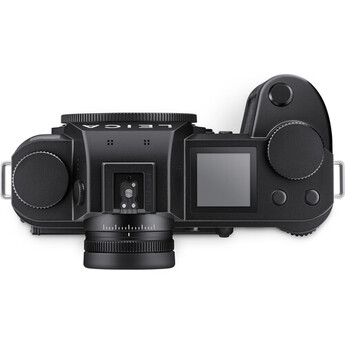

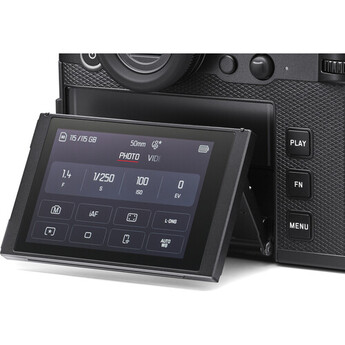

| Display Type | Tilting 3.2" Touchscreen LCD Status Display (Top): 1.2" LCD |
| Lens Mount | L-Mount |
|---|---|
| Effective Sensor Resolution | 44.9 Megapixel (8144 x 5424) |
| Image Sensor | Full-Frame |
| Image Stabilization | Sensor-Shift |
| ISO Sensitivity | Photo Dual Base: 400* Native in Manual Mode: 50 to 200,000 Native in Auto Mode: 100 to 200,000 *Base ISO Is Dependent on Selected Color Space Video Dual Base: 400* Native in Manual Mode: 50 to 100,000 Native in Auto Mode: 100 to 100,000 *Base ISO Is Dependent on Selected Color Space |
| Max Recording Modes | H.265 Long GOP/MOV 4:2:0 8/10-Bit Up to 8K at 23.98/24.00 fps H.265 Long GOP/MP4 4:2:0 10-Bit Up to UHD 8K at 23.98/25/29.97 fps ProRes 422 HQ Up to DCI 6K at 23.98/24.00/25/29.97 fps H.264 ALL-Intra/MOV 4:2:2 10-Bit Up to DCI 4K at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps H.264 Long GOP/MP4 4:2:0 8/10-Bit Up to UHD 4K at 23.98/25/29.97 fps |
| Max Video Output | Raw via HDMI Up to 8K at 23.98 fps |
| Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C 3.1/3.2 Gen 2 Data Output (Shared with Power Input) |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 5.0 |
| Display Type | Tilting 3.2" Touchscreen LCD Status Display (Top): 1.2" LCD |
| Battery | 1x BP-SCL6 Rechargeable Lithium-Ion (Included) |
| Mobile App Compatible | Yes: Android & iOS App Name: Leica FOTOS Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
|---|---|
| Video I/O | 1x HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C 3.1/3.2 Gen 2 Data Output (Shared with Power Input) |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 5.0 |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
| Internal Storage | No |
| Lens Mount | L-Mount |
|---|---|
| Sensor Resolution | Effective: 44.9 Megapixel (8144 x 5424) Actual: 45.8 Megapixel |
| Image Sensor | 36 x 24 mm (Full-Frame) BSI CMOS |
| Sensor Crop (35mm Equivalent) | Crop Factor: 1x |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Capture Type | Stills & Video |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
|---|---|
| Battery | 1x BP-SCL6 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Included) • Approx. 383 Shots |

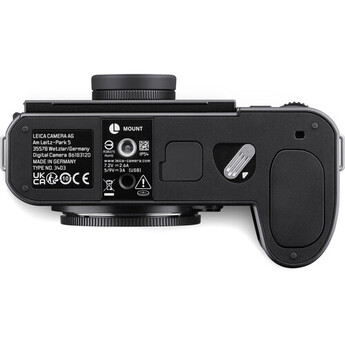

| Tripod Mount | 1x 1/4"-20 Female |
| Materials | Aluminum, Magnesium Alloy |
| Dimensions (W x H x D) | 5.96 x 4.25 x 3.3" / 151.45 x 108.05 x 84.6 mm |
| Weight | 2 lb / 768 g (Body Only) |
| Autofocus Points | Phase Detection: 819 Contrast Detection: 315 |
|---|---|
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus, Touch AF & Shutter, Subject Tracking (Auto-Tracking/Animals/Eyes/People/Vehicles) |
| Maximum Sync Speed | 1/200 Second |
|---|---|
| Dedicated Flash System | TTL |
| Non-Shoe Flash Connection | PC Sync Port |
| Shoe Mount | 1x Hot Shoe |
| Built-In Flash/Light | No |
| Flash Modes | Auto, Flash On |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
|---|---|
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Metering Method | Center-Weighted Average, Highlight Weighted, Multi-Zone, Spot |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| White Balance | 2000 to 11,500K Presets: Auto, Cloudy, Color Temperature, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Warm White), Manual, Shade, Tungsten |
| Interval Recording | Yes |
| Continuous Shooting | Up to 40 fps at Maximum Resolution for up to 70 Frames (Raw and JPEG) |
| Self-Timer | 2/6/12/30-Second Delay |
| ISO Sensitivity | Photo Dual Base: 400* Native in Manual Mode: 50 to 200,000 Native in Auto Mode: 100 to 200,000 *Base ISO Is Dependent on Selected Color Space Video Dual Base: 400* Native in Manual Mode: 50 to 100,000 Native in Auto Mode: 100 to 100,000 *Base ISO Is Dependent on Selected Color Space |
| Bulb/Time Mode | Bulb & Time Mode |
| Shutter Speed | Electronic Shutter 1/16000 to 30 Minutes Mechanical Shutter 1/8000 to 30 Minutes |
