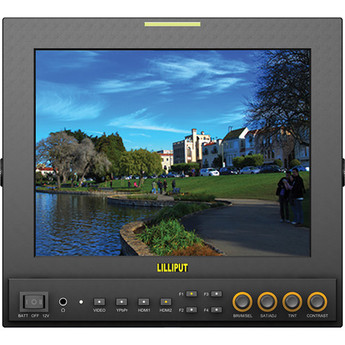

Lilliput 969A/O/P 9.7" Field Monitor
Model: 969A/O/P








| DC Input Power | 7 to 24 VDC |
|---|---|
| Power Consumption | 18 W (Maximum) |
| Operating Current | 1500 mA |
| Battery Type | 1 x LP-E6 or L-Series |
| Box Dimensions (LxWxH) | 15.95 x 13.1 x 4.6" |
|---|---|
| Package Weight | 5.6 lb |
| Other I/O | 1 x Tally (DE-15/DB-15) |
|---|---|

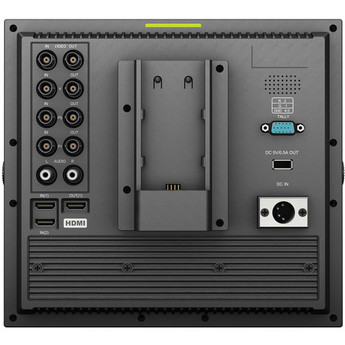

| Video | 1 x HDMI Type A Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output 2 x HDMI Type A Input 1 x 3BNC (Component) Input 1 x BNC (Composite) Input |
| Audio | 2 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x USB Type-A Input 1 x XLR 4-Pin Input |
| Media/Memory Card Slot | None |
| Dimensions | 9.8 x 6.7 x 1.2" / 25 x 22 x 3 cm |
|---|---|
| Weight | 2.4 lb / 1 kg |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
|---|---|
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
|---|---|
| Aspect Ratio | 4:3 |
| Image Controls | False Color, Focus Peaking |
| Panel Type | IPS-Type LCD |
| Resolution | 1024 x 768 |
| Display Size | 9.7" / 24.6 cm |
| Contrast Ratio | 600:1 |
| Maximum Brightness | 400 cd/m2 |
