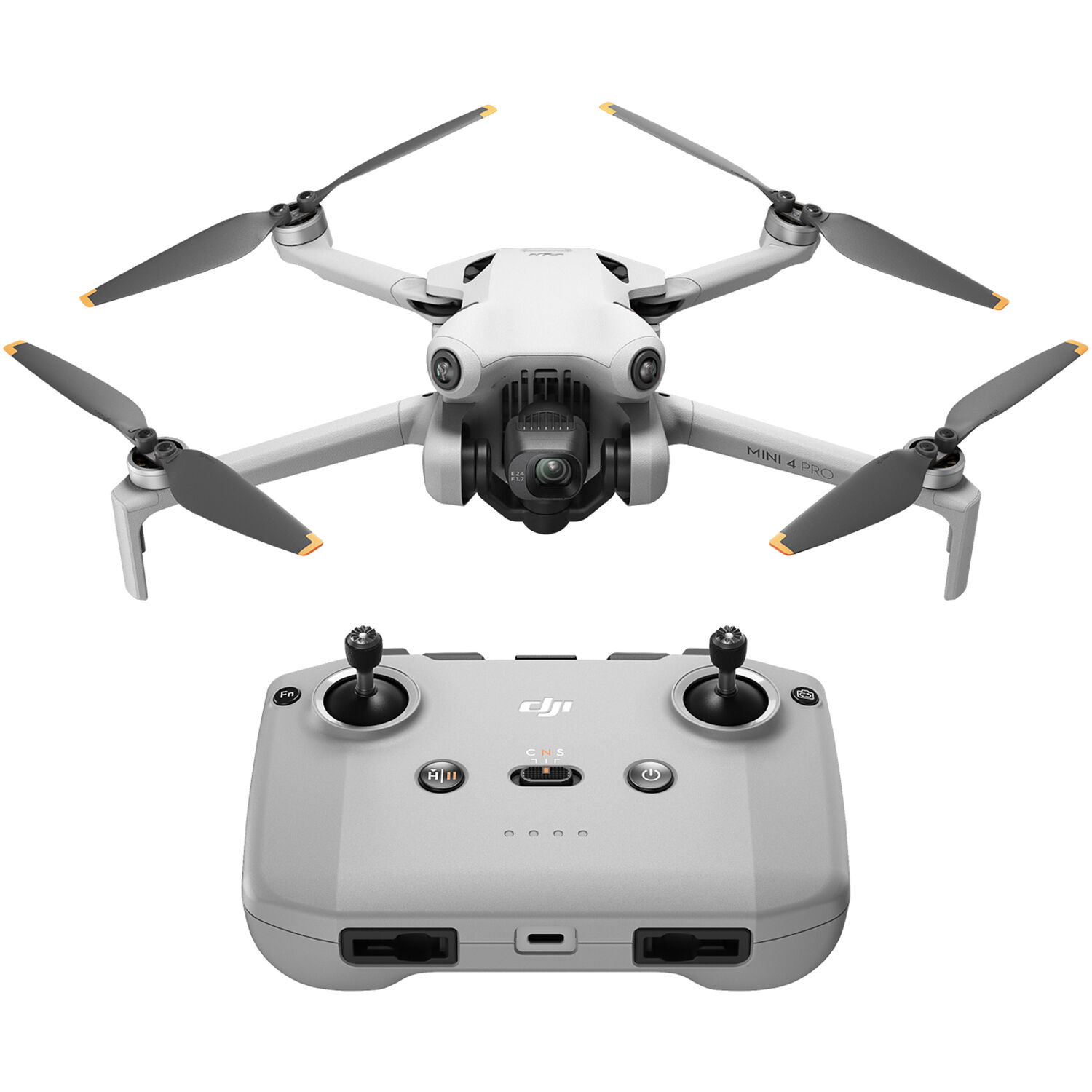

DJI Mini 4 Pro Drone with RC-N2 Controller
Model: CP.MA.00000731.01








| Operating Environment | Surface with Clear Patterns at >15 lux |
|---|---|
| Maximum Altitude | 13,123' / 4000 m |
| Vision System | Downward / Upward / Forward / Backward / Left / Right |
| Vision System Capabilities | Forward Measurement Range: 1.6 to 59.1' / 0.5 to 18 m Detection Range: 1.6 to 656.2' / 0.5 to 200 m Max Speed: 26.8 mph / 12 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Backward Measurement Range: 1.6 to 49.2' / 0.5 to 15 m Max Speed: 26.8 mph / 12 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Lateral Measurement Range: 1.6 to 39.4' / 0.5 to 12 m Max Speed: 26.8 mph / 12 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Upward Measurement Range: 1.6 to 49.2' / 0.5 to 15 m Max Speed: 11.2 mph / 5 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Downward Measurement Range: 1.0 to 39.4' / 0.3 to 12 m Max Speed: 11.2 mph / 5 m/s Field of View: 90° (Horizontal) / 106° (Vertical) |
| Transmitter Power | 2.4 G: 33 dBm (FCC), 20 dBm (CE, MIC, SRRC) 5.1 G: 23 dBm (CE) 5.8 G: 33 dBm (FCC), 14 dBm (CE), 30 dBm (SRRC) |
|---|---|
| Maximum Operating Distance | 12.4 Miles / 20 km |
| Operating Frequency | 2.4 GHz (2.400 to 2.4835) 5.2 GHz (5.170 to 5.250) 5.8 GHz (5.725 to 5.850) |
| Control Method | Included Transmitter with Smartphone/Mobile Device |
| Wi-Fi | None |
| Battery Capacity | 5200 mAh |
| Battery Chemistry | Lithium-Ion |
| Transmitter I/O | 1 x USB-C 1 x Micro-USB 1 x Lightning |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly *As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility | Devices up to 7.1" / 180 mm Wide and 0.39" / 9.91 mm Thick |
| Bluetooth | None |
| Maximum Flight Time | 34 Minutes |
|---|---|
| Maximum Hover Time | 30 Minutes |
| Hovering Accuracy | Horizontal: ±0.3' / 0.1 m Horizontal: ±1.6' / 0.5 m Vertical: ±0.3' / 0.1 m Vertical: ±1.6' / 0.5 m |
| Maximum Angular Velocity | 100°/s (Pitch) |
| Maximum Wind Resistance | 23.9 mph / 10.7 m/s |
| Flight Ceiling | 2.5 Miles / 4 km |
| Maximum Horizontal Speed | 35.8 mph / 16 m/s (S Mode) 26.8 mph / 12 m/s (N Mode) 26.8 mph / 12 m/s (C Mode) |
| Maximum Ascent Speed | 11.2 mph / 5 m/s (S Mode) 11.2 mph / 5 m/s (N Mode) 6.7 mph / 3 m/s (C Mode) |
| Maximum Descent Speed | 11.2 mph / 5 m/s (S Mode) 11.2 mph / 5 m/s (N Mode) 6.7 mph / 3 m/s (C Mode) |
| Box Dimensions (LxWxH) | 6.3 x 5.2 x 5.2" |
|---|---|
| Package Weight | 2.005 lb |
| Mobile Device Compatibility | Devices up to 7.1" / 180 mm Wide and 0.39" / 9.91 mm Thick |
|---|---|
| Maximum Flight Time | 34 Minutes |
| Image Sensor | 1/1.3"-Type CMOS |
| Internal Recording Modes | H.264/H.265 4:2:0 8/10-Bit UHD 4K (3840 x 2160) at 24.00/25/30.00/48.00/50/60.00/100 fps 1920 x 1080 at 24.00/25/30.00/48.00/50/60.00/100/200 fps |
| Still Image Support | DNG / JPEG / Raw 48 MP (8064 x 6048) |
| Vision System | Downward / Upward / Forward / Backward / Left / Right |
| Control Method | Included Transmitter with Smartphone/Mobile Device |
| Maximum Operating Distance | 12.4 Miles / 20 km |
| Maximum Horizontal Speed | 35.8 mph / 16 m/s (S Mode) 26.8 mph / 12 m/s (N Mode) 26.8 mph / 12 m/s (C Mode) |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly *As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
| Rotor Configuration | 4 |
| Weight | 8.8 oz / 249 g Takeoff |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
|---|---|
| Rotation Range | Yaw (Pan): -30 to 30°  Roll: -135 to 45°  Pitch (Tilt): -135 to 80°  |
| Rotor Configuration | 4 |
|---|---|
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Overall Dimensions | 3.7 x 2.5 x 5.8" / 94.0 x 64.0 x 148.0 mm (Folded) 14.7 x 4.0 x 11.7" / 373.0 x 101.0 x 298.0 mm (Unfolded) |
| Weight | 8.8 oz / 249 g Takeoff |
| GNSS Support | GPS, BeiDou, Galileo |
|---|
| Battery Chemistry | Lithium-Ion |
|---|---|
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 2.7 oz / 77.9 g |
| Battery Capacity | 2590 mAh / 18.96 Wh |
| Digital Zoom | 1 to 4x |
|---|---|
| Field of View | 82.1° |
| Sensor Resolution | Effective: 48 Megapixel (8064 x 6048) |
| Image Sensor | 1/1.3"-Type CMOS |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-III) [512 GB Maximum / V90 or Faster Recommended] |
| Internal Storage | 2 GB |
| Still Image Support | DNG / JPEG / Raw 48 MP (8064 x 6048) |
| Video Format | 3840 x 2160p at 24/25/30/48/50/60/100 fps (150 Mb/s MP4 via H.264/AVC, H.265/HEVC) |
| Internal Recording Modes | H.264/H.265 4:2:0 8/10-Bit UHD 4K (3840 x 2160) at 24.00/25/30.00/48.00/50/60.00/100 fps 1920 x 1080 at 24.00/25/30.00/48.00/50/60.00/100/200 fps |
| Shutter Speed | 1/16000 to 2 Seconds |
| ISO Sensitivity | Video 100 to 6400 Photo 100 to 6400 |
| Minimum Focus Distance | 3.3' / 1 m |
| Maximum Aperture | f/1.7 |
