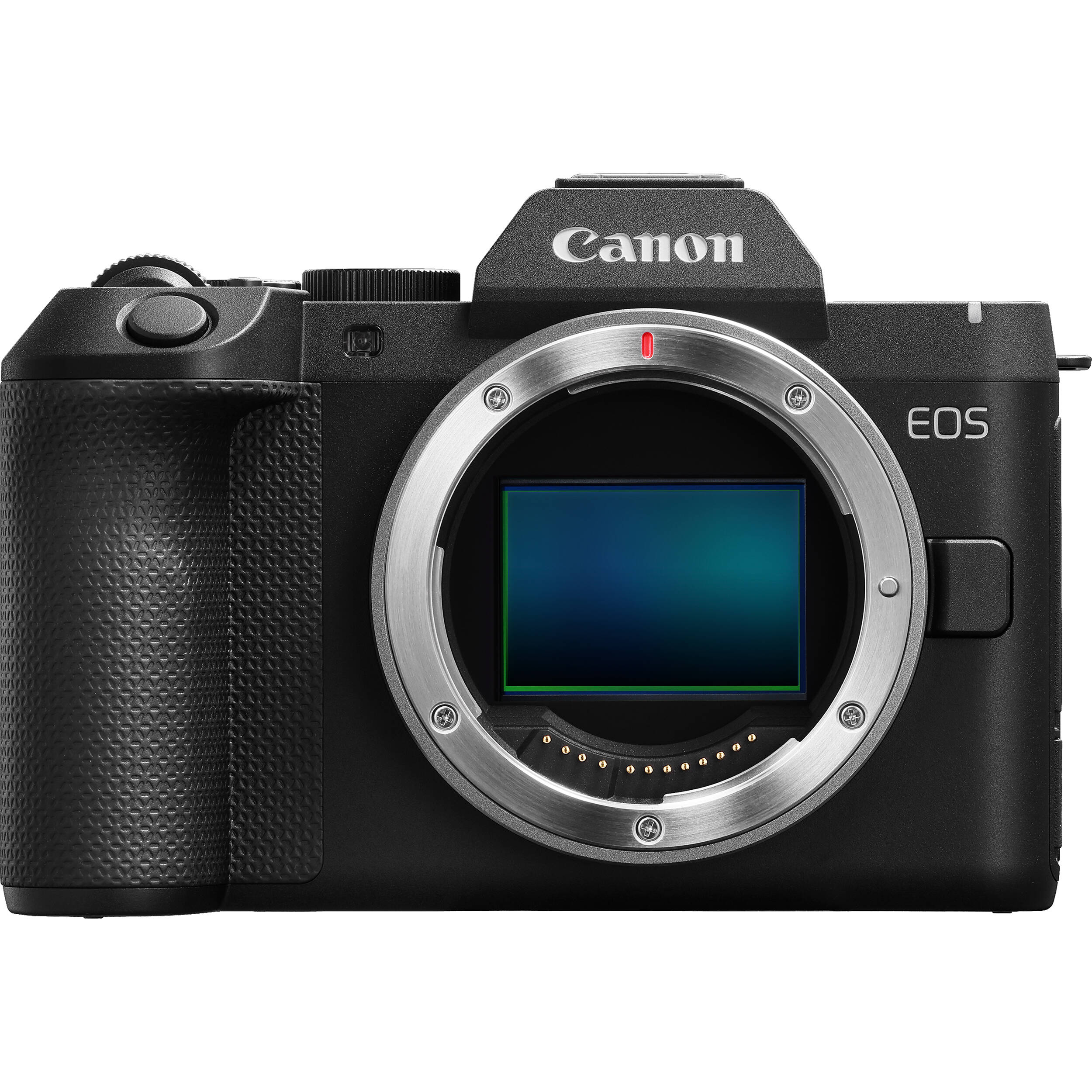

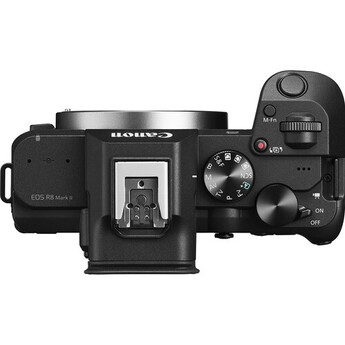

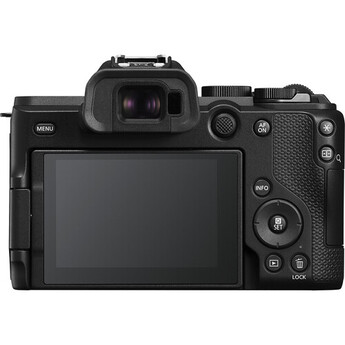

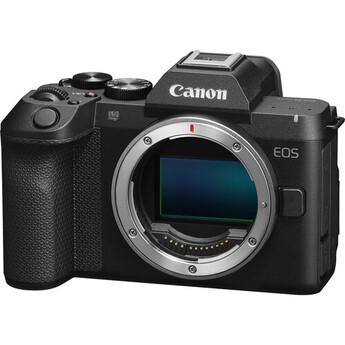

Canon EOS R8 Mark II Mirrorless Camera
Model: 7503C002








| Diopter Adjustment | -4 to +1 |
|---|---|
| Type | Electronic (OLED) |
| Size | 0.39" |
| Resolution | 2,360,000 Dot |
| Eye Point | 22 mm |
| Coverage | 100% |
| Magnification | Approx. 0.7x |
| Internal Recording | XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/150/180 fps |
|---|---|
| Audio Recording | AAC Audio LPCM Audio |
| Built-In Microphone | Stereo |
| IP Streaming | Yes |
| Recording Limit | 2-Hour Maximum in 1080p HFR 6-Hour Maximum in 4K |
| Gamma Curve | Canon Log 3, HDR-PQ |
| Fast-/Slow-Motion Support | Yes |
| Video Output | via HDMI 3840 x 2160 at 29.97/59.94 fps 1920 x 1080 at 29.97/59.94 fps |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
|---|---|
| Image File Format | C-RAW, HEIF, JPEG, Raw |
| Display Type | Articulating 3" Touchscreen LCD |
|---|---|
| Resolution | 1,620,000 Dot |
| Image Stabilization | Sensor-Shift |
|---|---|
| Image Sensor | Full-Frame |
| Effective Sensor Resolution | 24.2 Megapixel |
| Lens Mount | Canon RF |

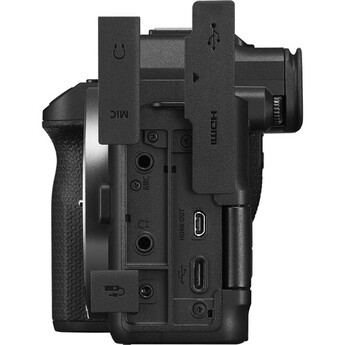

| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C 3.1/3.2 Gen 2 Data Output (Shared with Power Input) |
| Wireless | Wi-Fi 6 (802.11ax) / Bluetooth 5.3 |
| Display Type | Articulating 3" Touchscreen LCD |
| Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |

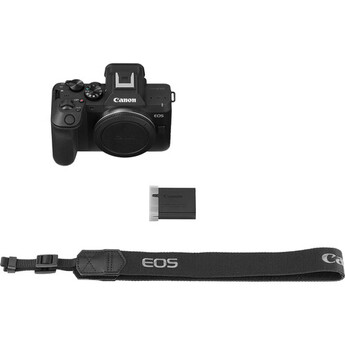

| Battery | 1x LP-E17 Rechargeable Lithium-Ion (Included) |
| Max Video Output | via HDMI Up to UHD 4K at 29.97/59.94 fps |
| Max Recording Modes | XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit Up to UHD 4K at 23.98/25/29.97/50/59.94 fps |
| ISO Sensitivity | Photo Native in Manual Mode: 100 to 102,400 (50 to 204,800 Extended) Video *Native in Manual Mode: 100 to 25,600 (32,000 to 102,400 Extended) *Base ISO Is Dependent on Selected Color Space |
| Other I/O | 1x USB-C 3.1/3.2 Gen 2 Data Output (Shared with Power Input) |
|---|---|
| Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Internal Storage | No |
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Wireless | Wi-Fi 6 (802.11ax) / Bluetooth 5.3 |
| Mobile App Compatible | Yes: Android & iOS App Name: Canon Camera Connect / Live Switcher Mobile Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Sensor Resolution | Effective: 24.2 Megapixel Actual: 25.6 Megapixel |
|---|---|
| Lens Mount | Canon RF |
| Capture Type | Stills & Video |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Sensor Crop (35mm Equivalent) | Crop Factor: 1x Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes |
| Image Sensor | 36 x 24 mm (Full-Frame) CMOS |
| Dimensions (W x H x D) | 5.17 x 3.54 x 3.14" / 13.13 x 8.99 x 7.98 cm |
|---|---|
| Weight | 18 oz / 499 g (Body Only) 19 oz / 546 g (With Battery, Recording Media) |
| Battery | 1x LP-E17 Rechargeable Lithium-Ion (Included) • Approx. 150 Shots |
| Tripod Mount | 1x 1/4"-20 Female |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 85% Humidity |
| Autofocus Sensitivity | -7.5 to +21 EV |
|---|---|
| Autofocus Points | Photo 4368 Video 3588 |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Focus Type | Auto and Manual Focus |
| Dedicated Flash System | eTTL |
|---|---|
| Non-Shoe Flash Connection | PC Sync Port |
| Built-In Flash/Light | No |
| Flash Modes | Auto |
| Maximum Sync Speed | 1/200 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Shoe Mount | 1x Intelligent Hot Shoe |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
|---|---|
| Exposure Modes | Auto, Manual |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Self-Timer | 2/10-Second Delay |
| Interval Recording | Yes |
| Continuous Shooting | Up to 40 fps at Maximum Resolution for up to 73 Frames (Raw) / 190 Frames (JPEG) |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 30 Seconds 1/8000 to 1/8 Second in Movie Mode |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity | Photo Native in Manual Mode: 100 to 102,400 (50 to 204,800 Extended) Video *Native in Manual Mode: 100 to 25,600 (32,000 to 102,400 Extended) *Base ISO Is Dependent on Selected Color Space |
| Metering Range | -3 to 20 EV |
