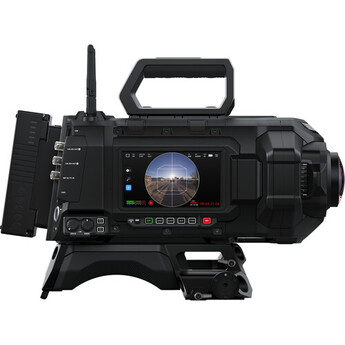

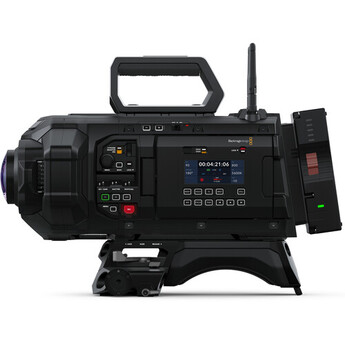

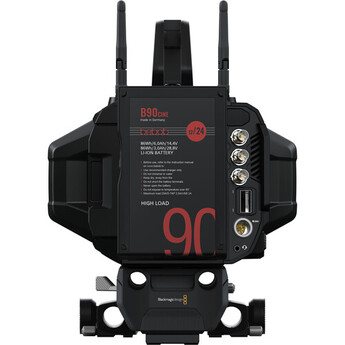

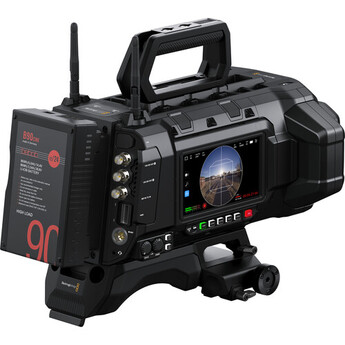

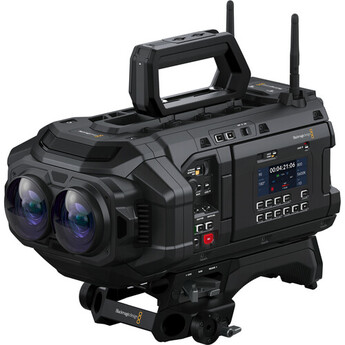

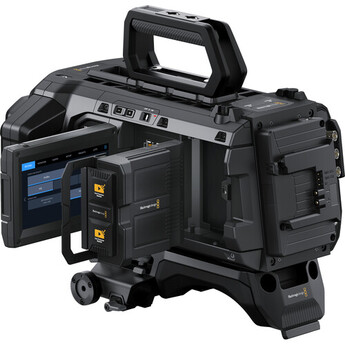

blackmagic design URSA Cine Immersive 100G Camera
Model: CINEURSAAF24DS/IMB1








| Resolution | 1920 x 1080 |
|---|---|
| Type | Optional, Not Included |
| Internal Recording | Blackmagic RAW 8160 x 7200 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/90 fps |
|---|---|
| IP Streaming | Yes |
| Audio Recording | 4-Channel |
| Built-In Microphone | Stereo |
| Fast-/Slow-Motion Support | Slow-Motion Only |
| Video Output | 3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps |
| Battery | B-Mount |
|---|
| Resolution | 1920 x 1080 |
|---|---|
| Display Type | Articulating 5" Touchscreen LCD |
| Still Image Support | No |
|---|---|
| Maximum Aperture | f/4.5 |
| ISO/Gain Sensitivity | Native in Manual Mode: 200 to 3200 |
|---|---|
| Max Recording Modes | Blackmagic RAW 8K at 23.98/24.00/25/29.97/30.00/50/59.94/60.00/90 fps |
| Max Video Output | Up to UHD 4K at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps |
| Battery | B-Mount |
| Media/Memory Card Slot | Single Slot: Blackmagic Media Module [16 TB Maximum] |
| Effective Sensor Resolution | 58.7 Megapixel |
| Image Sensor | Dual Large Format |
| Mobile App Compatible | No |
| Image Stabilization | Supplies Stabilization Metadata |
| Video I/O | 2x BNC (12G-SDI) Output 1x RJ45 LAN Output |
|---|---|
| Media/Memory Card Slot | Single Slot: Blackmagic Media Module [16 TB Maximum] |
| Internal Storage | No |
| Audio I/O | 2x XLR 3-Pin Input 1x 2.5 mm Submini TRS Stereo Headphone Output |
| Power I/O | 1x LEMO 8-Pin (24VDC) |
| Other I/O | 1x BNC (Reference, Timecode) Input 1x Fischer 3-Pin 3x USB-C |
| Wireless | Wi-Fi *Built-In |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Capture Type | Video Only |
|---|---|
| Built-In CC Filter | No |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256) ND Filters |
| Image Stabilization | Supplies Stabilization Metadata |
| Effective Sensor Resolution | 58.7 Megapixel |
| Image Sensor | Dual 23.66 x 20.88 mm (Large Format) CMOS |
| Weight | Not Specified by Manufacturer |
|---|---|
| Shoe Mount | No |
| Tripod Mount | No |
| Lens Accessory Thread | No |
| Accessory Mounting Thread | 4x 1/4"-20 on Camera Body 5x 3/8"-16 on Camera Body |
| Dimensions (W x H x D) | Not Specified by Manufacturer |
| Focus Mode | Fixed Focus |
|---|
| Advertised Dynamic Range | 16 Stops |
|---|---|
| Signal-to-Noise Ratio | Not Specified by Manufacturer |
| ISO/Gain Sensitivity | Native in Manual Mode: 200 to 3200 |
| Shutter Angle | 11.2 to 360° |
| Shutter Type | Electronic Rolling Shutter |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
|---|---|
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
