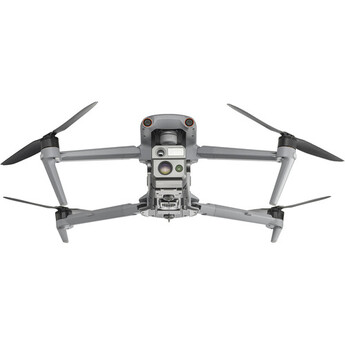

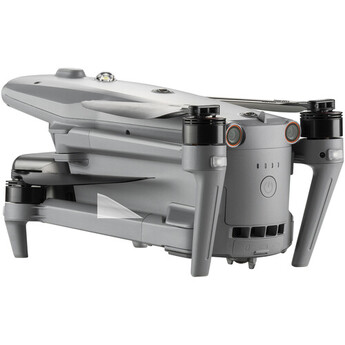

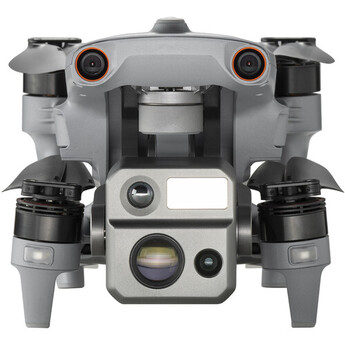

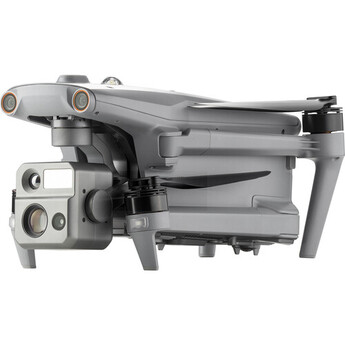

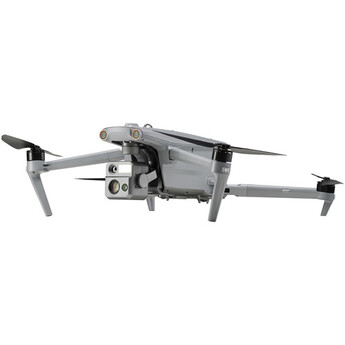

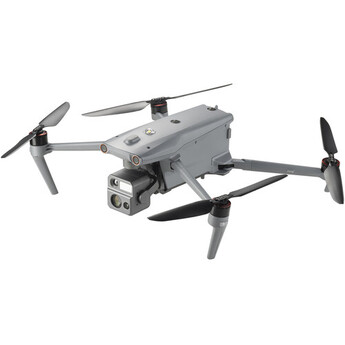

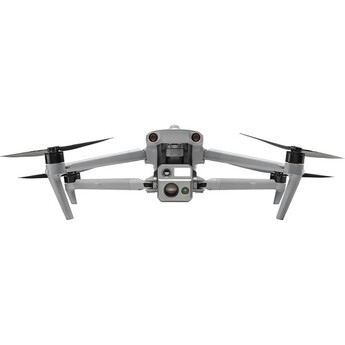

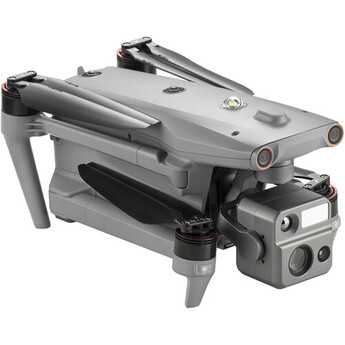

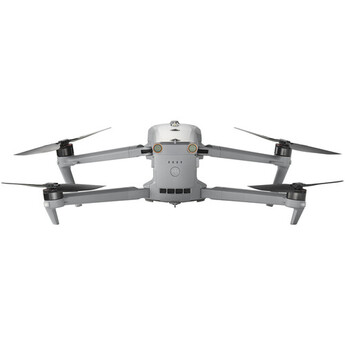

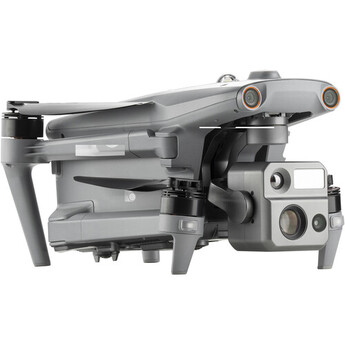

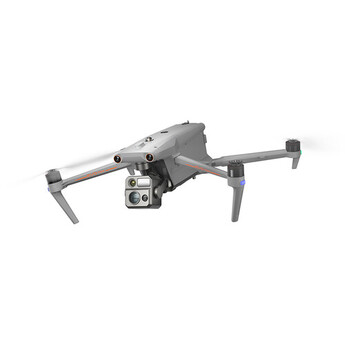

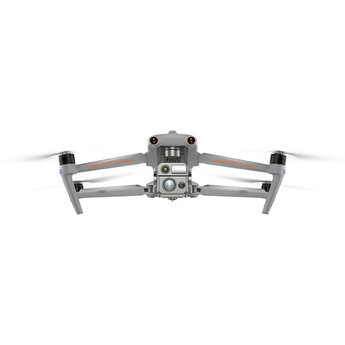

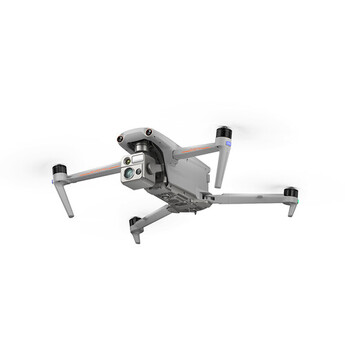

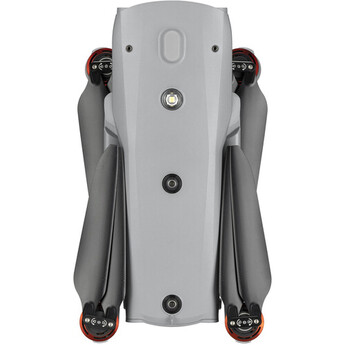

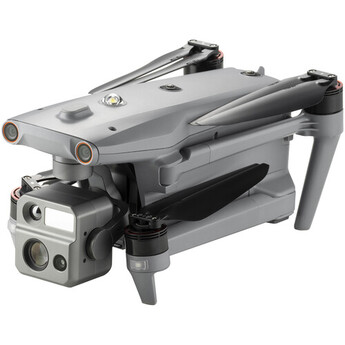

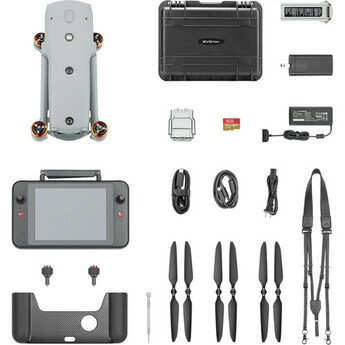

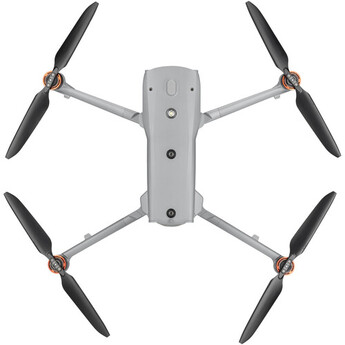

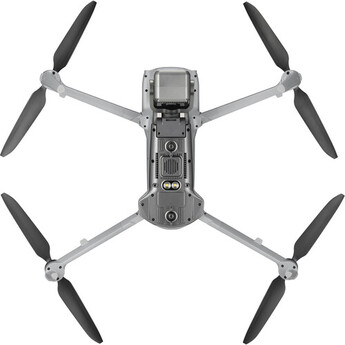

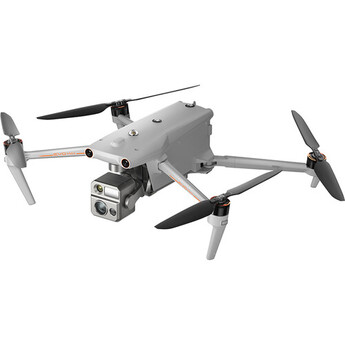

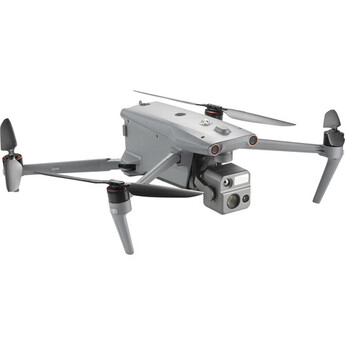

Autel robotics EVO Max 4N Industrial Drone
Model: 102002198








| Vision System | Downward / Upward / Forward / Backward / Left / Right |
|---|---|
| Vision System Capabilities | Forward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Upward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 360° (Horizontal) / 190° (Vertical) Downward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 360° (Horizontal) / 190° (Vertical) |
| Exposure Compensation | ±3 EV 0.3EV / step |
|---|---|
| ISO Range | Auto
Photo: ISO 100 to ISO 6400 Video: ISO 100 to ISO 64,000 (Night Scene Mode: up to ISO 64,000) Manual Photo: ISO 100 to 12,800 Video: ISO 100 to 6400 |
| Shutter Speed | Photo: 8 Seconds to 1/8000 Seconds Video: 1 Second to 1/8000 Seconds |
| Resolution | Maximum Video: 3840 x 2160 Photo Size: 4096 x 3072 |
| Sensor | 1/1.28 CMOS Effective Pixels: 50 MP |
| Lens | FOV: 85° Focal Length: 4.5 mm (Equivalent: 23 mm) Aperture: f/1.9 AF Motor: PDAF Focus |
| Camera Type | Wide-Angle |
| Lens | Sensor: Uncooled VOx Microbolometer FOV:61° Focal Length: 9.1 mm Aperture: f/1.0 Focusing Distance: 7.2' / 2.2 m |
|---|---|
| Temperature | Measurement Accuracy: +/-3% of Readign (Using the Larger Value) at Ambient Temperature Range from -4° F to 140° F (-20° C / -60° C) Measurement Method: Center, Pot, and Rectangular Measurement Range: -4° to 302° F and 32° to 1022° F / -20° C to 150° C and 0 to 550° C Temperature Alert: High and Low Temperature Alarm Thresholds, Reporting Coordinates, and Temperature Values Palette: White Hot/Black, Hot/Searing/Rainbox, Gray, Ironbow, Cold, and Hot |
| Resolution | Video: 640 x 512 at 30 FPS Photo: 640 x 512 |
| Pixel Pitch | 12 um |
| Camera Type | Thermal |
| Mobile App Compatible | No *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
|---|---|
| Bluetooth | None |
| Wi-Fi | Wi-Fi 5 (802.11ac) (2 x 2) |
| Battery Capacity | 5800 mAh |
| Battery Chemistry | Lithium-Ion |
| Battery Type | 1 x Built-In |
| Transmitter Power | 23 dBm (2.4 G) 17 dBm (5.1 G) 22 dBm (5.8 G) |
| Maximum Operating Distance | 12.4 Miles / 20.0 km |
| Operating Frequency | 2.4 GHz (2.400 to 2.4835) 5.1 GHz (5.150 to 5.250) 5.8 GHz (5.725 to 5.850) |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Display Brightness | 2000 nits / cd/m2 |
| Display Resolution | 2048 x 1536 |
| Built-In Display Size / Type | 7.9" / LCD |
| Maximum Horizontal Speed | 51.4 mph / 23 m/s |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 8 m/s |
| Maximum Descent Speed | 13.4 mph / 6 m/s |
| Maximum Wind Resistance | 27 mph / 12.1 m/s |
| Flight Ceiling | 4.3 Miles / 7000 m |
| Maximum Flight Time | 42 Minutes |
| Maximum Hover Time | 38 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m GNSS Vertical: ±1.0' / 0.3 m Horizontal: ±1.0' / 0.3 m RTK Vertical: ±0.49' / 0.15 m Horizontal: ±0.3' / 0.1 m |
| Maximum Angular Velocity | 300°/s (Pitch) 120°/s (Yaw) |
| Stabilization Accuracy | ±0.005° |
|---|---|
| Follow Speed | Tilt: 200°/s |
| Rotation Range | Mechanical Range Yaw (Pan): 180° (-135 to 45°)  Pitch (Tilt): 90° (-45 to 45°)  Roll: 90° (-45 to 45°)  Controllable Range Pitch (Tilt): 120° (-90 to 30°)  |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotor Configuration | 4 |
|---|---|
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Weight | 3.5 lb / 1600 g (WithBattery, Gimbal) |
| Overall Dimensions | 22.7 x 5.9 x 26.0" / 576.0 x 149.0 x 660.0 mm (Folded) 10.1 x 5.2 x 5.4" / 257.0 x 133.0 x 136.0 mm (Unfolded) |
| Diagonal Size | 1.5' / 464 mm |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
|---|
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
|---|---|
| Battery Capacity | 8070 mAh / 120 Wh |
| Battery Configuration | 4 S / 14.88 V |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 1.1 lb / 520 g |
| Image Sensor | Size-Unspecified CMOS |
|---|---|
| Video Format | 1920 x 1200 (MP4) |
| Broadcast Resolution | None |
| Still Image Support | JPEG (1920 x 2001) |
| Media/Memory Card Slot | None |
| Internal Recording Modes | 1920 x 1200 |
| Photo Modes | Burst Shooting, Single Shot |
| ISO Sensitivity | Photo/Video 100 to 450,000 in Auto Mode |
| Field of View | 52° |
| Focal Length | 41.4mm (35mm Equivalent) |
| Sensor Resolution | Effective: 2.3 Megapixel |
