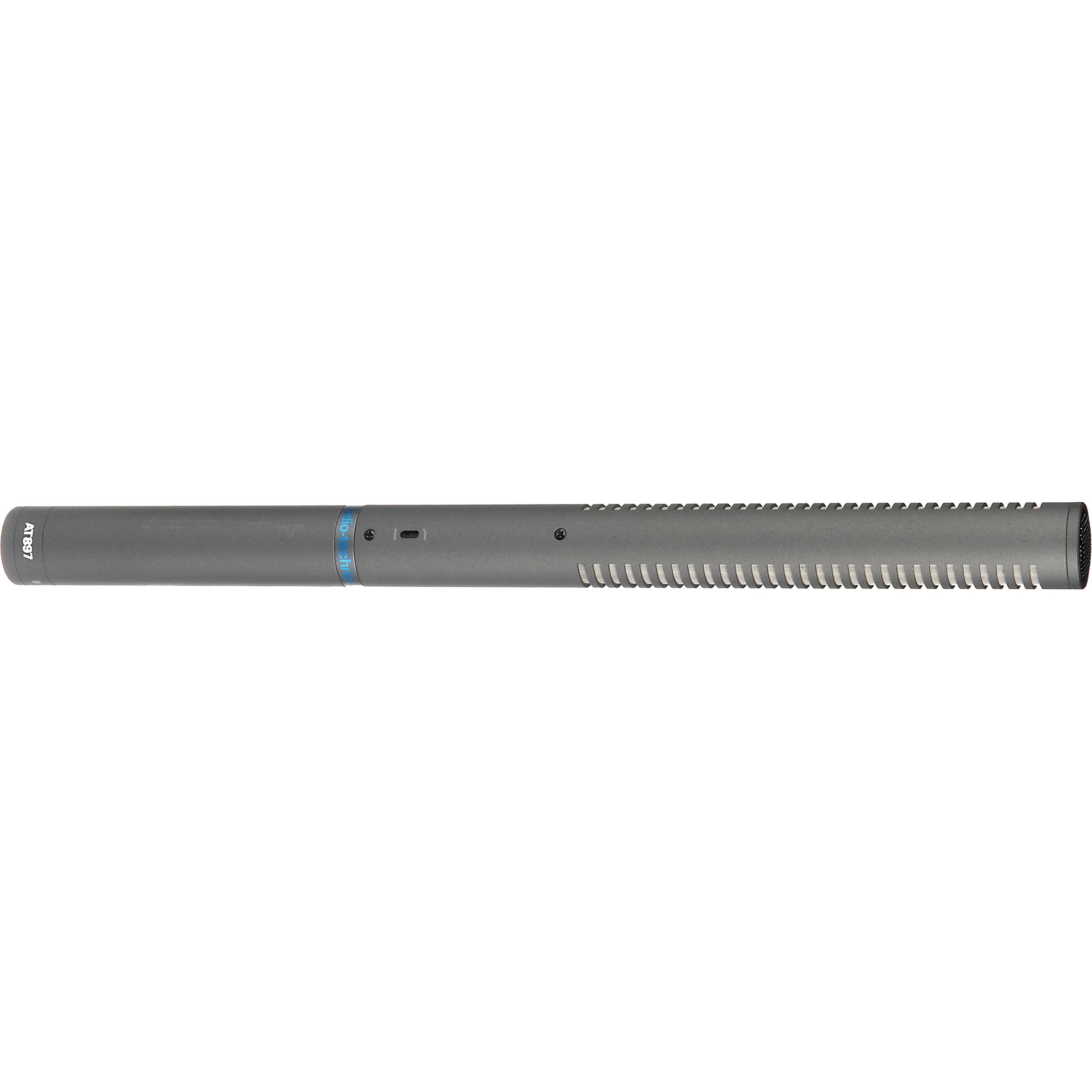

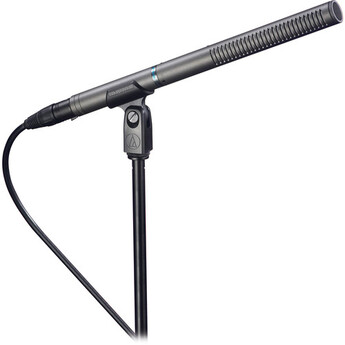

Audio-Technica AT897 Line and Gradient Condenser Microphone
Model: AT897








| Box Dimensions (LxWxH) | 19.5 x 4.5 x 2.5" |
|---|---|
| Package Weight | 1.65 lb |
| Frequency Range | 20 Hz to 20 kHz |
|---|---|
| Signal to Noise Ratio | 77 dB |
| Maximum SPL | 129 dB SPL 1% |
| Impedance | 200 ohms |
| Sensitivity | -40 dB, re: 1 V/Pa |
| Power Requirements | 11-52 V Microphone can also be powered by a 1.5 AA/UM3 battery. Please see attached PDF for microphone specifications when powered using battery. |
| Operating Principle | Line Gradient |
| Output Connectors | 3-Pin XLR |
| Operating Current Consumption | 2.0 mA |
| Dynamic Range | 112 dB |
| Low-Cut Filter | Yes, 12 dB/Octave @ 80 Hz |
| Transducer | Condenser |
| Weight | 5.11 oz (145 g) |
|---|---|
| Diameter | 0.83" (21 mm) |
| Length | 10.98" (279 mm) |
