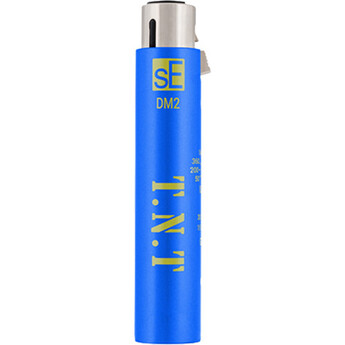

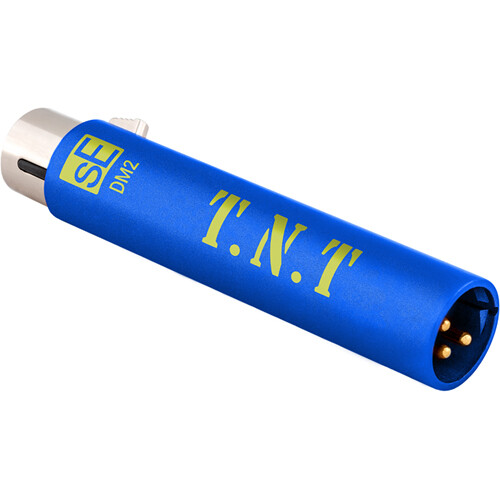

Se electronics DM2 TNT Active In-Line Microphone Preamplifier
Model: DM2-MIC-PRE








| Package Weight | 0.22 lb |
|---|---|
| Box Dimensions (LxWxH) | 6.4 x 1.25 x 1.2" |
| Gain | 15 / 30 dB (Switchable) |
|---|---|
| Maximum Output Level | 9.5 dBV / 3.0 V (0.5% THD) |
| Output Noise | Level: 1 μV at 15 dB / 6.6 μV at 30 dB |
| Powering | 48 V According to IEC 61938 |
| Impedance | 135 Ohms |
| System Requirements | Input: Passive Microphone (Ribbon/Dynamic) Output: Preamp/Mixer or Audio Interface Providing 48 V Phantom Power Limitations: Not Suitable for Phantom-Powered Microphones (Condenser Microphones, Active Ribbon Microphones) |
| Current Consumption | 3.1 mA |
| Connectors | 3-Pin Male XLR 3-Pin Female XLR |
| Dimensions | 0.75 x 3.76" / 19 x 95 mm |
| Weight | 2.8 oz / 80 g |
| Load Impedance | Recommended: >1 Kilohm |
| Frequency Range | 10 Hz to 120 kHz (-0.3 dB) |
