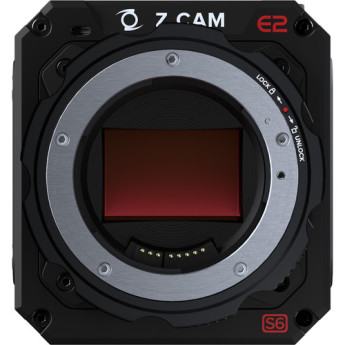

Z cam E2-S6 Super 35 6K Cinema Camera (PL Mount)

Name: Z cam E2-S6 Super 35 6K Cinema Camera (PL Mount)
Brand: Z cam
SKU: GT-0355093

Model #E2-S6 PL

Z cam Warranty

How it works

You name the price you want to pay for a product.
We send your offer to a network of Certified Retailers.
If the retailer likes your offer, you get that price for the product.

Greentoe Guarantee

All Products are New and from Manufacturer Authorized Retailers
30 day return policy
Free Shipping
No Additional Fees

Coming Soon!

This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.

Specifications

Specifications

Power

Power Connectors	1 x 2-Pin LEMO (12 VDC) Input 1 x 2-Pin LEMO (12 VDC) Output
Battery Type	Sony L-Series

Internal Recording

Raw Recording	Raw 10-Bit: 4096 x 2160 at 30 fps (300 Mb/s)
Recording Modes	H.265/MOV/MP4 4:2:0 10-Bit: 6244 x 4168p up to 30 fps (300 Mb/s) 6144 x 3240p up to 48 fps (300 Mb/s) 6144 x 2592p up to 75 fps (300 Mb/s) 5760 x 3240p up to 48 fps (300 Mb/s) 5552 x 4164p up to 30 fps (300 Mb/s) 4992 x 4160p up to 30 fps (300 Mb/s) 4096 x 2160p up to 75 fps (300 Mb/s) 4096 x 1728p up to 120 fps (300 Mb/s) 3840 x 2160p up to 75 fps (300 Mb/s) 1920 x 1080p up to 120 fps (300 Mb/s) H.264/MOV/MP4 4:2:0 8-Bit: 6244 x 4168p up to 30 fps (300 Mb/s) 6144 x 3240p up to 48 fps (300 Mb/s) 6144 x 2592p up to 75 fps (300 Mb/s) 5760 x 3240p up to 48 fps (300 Mb/s) 5552 x 4164p up to 30 fps (300 Mb/s) 4992 x 4160p up to 30 fps (300 Mb/s) 4096 x 2160p up to 75 fps (300 Mb/s) 4096 x 1728p up to 120 fps (300 Mb/s) 3840 x 2160p up to 75 fps (300 Mb/s) 3840 x 1620p up to 90 fps (300 Mb/s) 1920 x 1080p up to 120 fps (300 Mb/s)
Audio Recording	MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 24-Bit 48 kHz AAC Audio MOV: 2-Channel 24-Bit 48 kHz AAC Audio

Interfaces

Other I/O	1 x USB Type-C Camera Interface Data, Control Input/Output 1 x 2.5 mm LANC Control Input 1 x RJ45 GIG-E 1000BASE-T, LAN Data, Control, Monitor, Video Input/Output 2 x 4-Pin LEMO Camera Interface Control Input/Output
Video Connectors	1 x HDMI (HDMI 2.0) Output
Wireless Interfaces	2.4 GHz, 5 GHz Wi-Fi Control
Audio Connectors	1 x 1/8" / 3.5 mm Stereo Input 1 x 5-Pin LEMO Input 1 x 1/8" / 3.5 mm Stereo Output

Image Sensor

Image Sensor Size	35.97 x 23.98 mm (Full-Frame)
Sensor Type	CMOS
Effective Sensor Resolution	26.00 MP
ISO	400 to 125,000 (Expanded) 400 to 1250 (Native)
Advertised Dynamic Range	14 Stops

General

Accessory Mount	11 x 1/4"-20 Female
Dimensions	3.91 x 3.9 x 3.59" / 99.2 x 99.1 x 91.2 mm (Without Protrusions)
Material of Construction	Aluminum

External Recording

Video Output

4:2:2 10-Bit via HDMI: 3840 x 2160p at 60 fps

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Display

Display Type

Status Display

Camera

Built-In ND Filter	None
Built-In Microphone Type	Stereo
Shutter Angle	1 to 360°
Recording Media	1 x CFast 2.0 Card Slot
Shutter Speed	1/1 to 1/8000 sec
Lens Mount	PL Mount

Product Highlights

Record up to 6K75 Video
ZRAW Recording
14 Stops of Dynamic Range
Super 35 CMOS Sensor
PL Lens Mount
10-Bit Color Recording
5G Wireless Support, Timecode Support
Gigabit Ethernet for Data and Control
Live Streaming via Ethernet
iOS App for Control and Live Preview

In The Box

Z CAM E2-S6 Super 35 6K Cinema Camera (PL Mount)
LEMO Power Cable
AC/DC Power Adapter
Lens Mount Cap
Limited 1-Year Warranty
