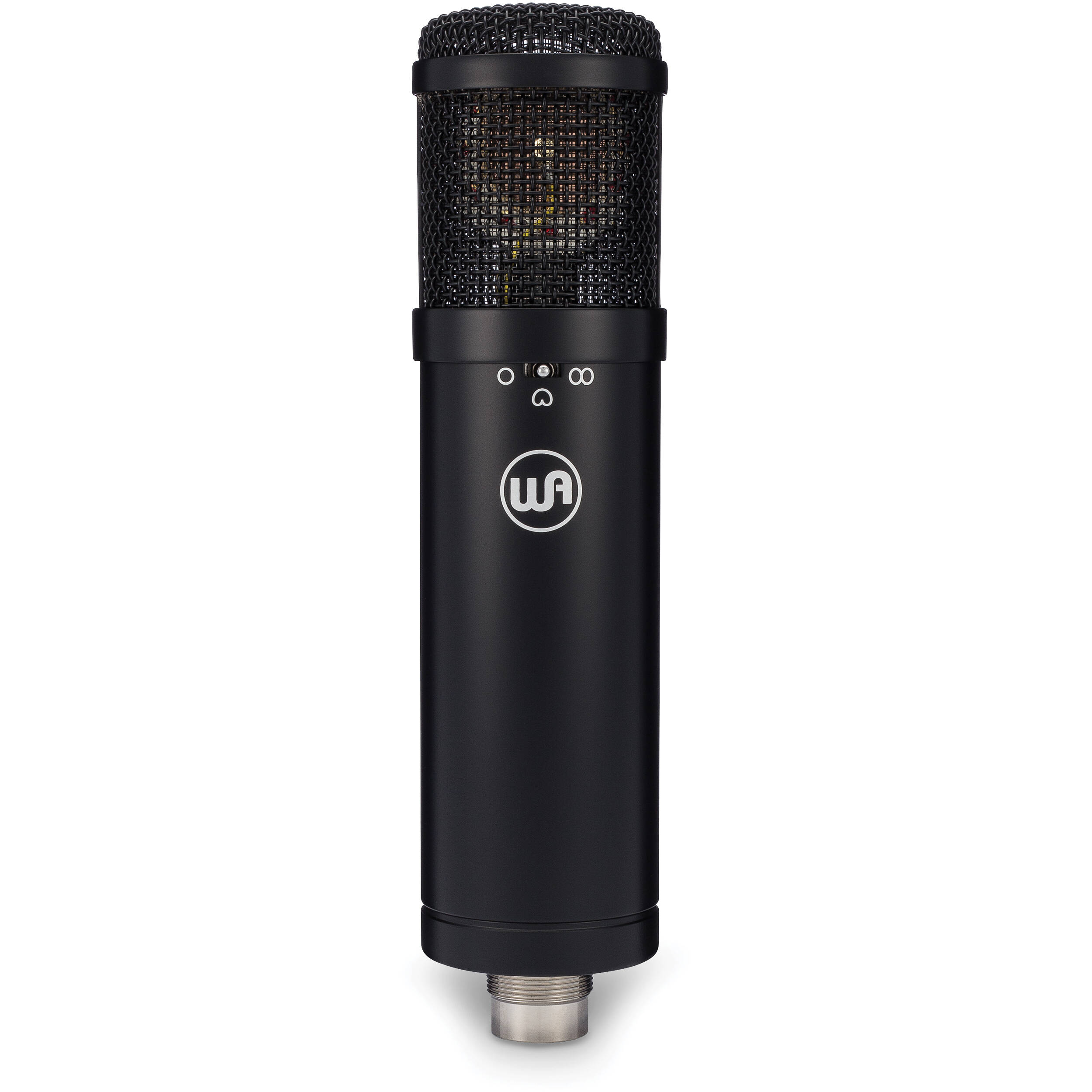

Warm audio WA-47jr Large-Diaphragm FET Condenser Microphone (Black)
Model: WA-47JR BLACK








| Operating Voltage | 48 V |
|---|
| Mounting | Mic Clip, Shockmount (Included) |
|---|---|
| Color | Black |
| Weight | 1.1 lb / 0.5 kg |
| Dimensions | ø: 2.05 x L: 8.27" / ø: 52 x L: 210 mm |
| Load Impedance | 1 Kilohms |
|---|---|
| Frequency Range | 20 Hz to 20 kHz |
| Impedance | 100 Ohms |
| Maximum SPL | 147 dB SPL 157 dB SPL (with Pad) |
| Equivalent Noise Level | 9 dB A-Weighted |
| Signal-to-Noise Ratio | 85 dB A-Weighted |
| Dynamic Range | 138 dB A-Weighted |
| Sensitivity | 10 mV/Pa |
| Box Dimensions (LxWxH) | 11.1 x 10 x 6" |
|---|---|
| Package Weight | 3.76 lb |
| On-Board Controls | Polar Pattern, High-Pass Filter, Pad |
|---|---|
| Pad | -10 dB |
| Circuitry | Solid-State |
| Orientation | Side Address |
| High-Pass Filter | 70 Hz |
| Pattern Selection | Switched |
| Polar Pattern | Cardioid, Figure-8, Omnidirectional |
| Capsule | Condenser |
| Operating Principle | Pressure Gradient |
| Sound Field | Mono |
| Form Factor | Stand/Boom Mount |
| Output Connectors (Analog) | 1 x XLR 3-Pin (on Mic) |
|---|
