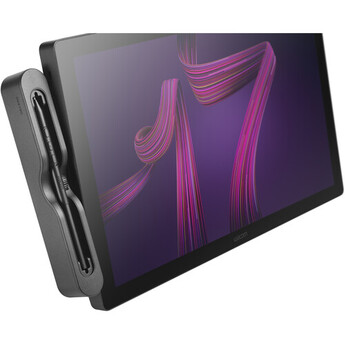

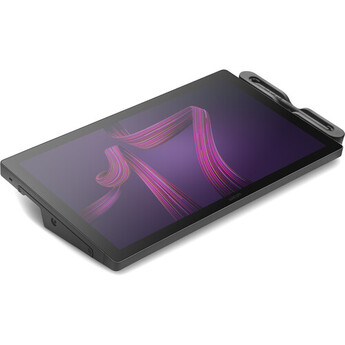

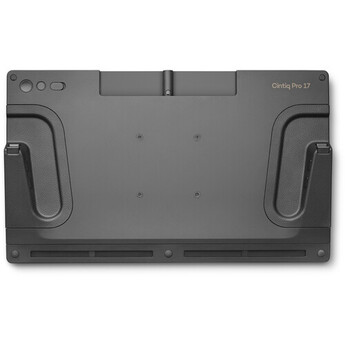

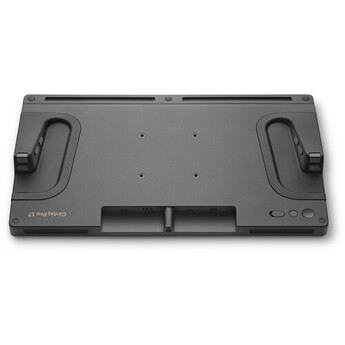

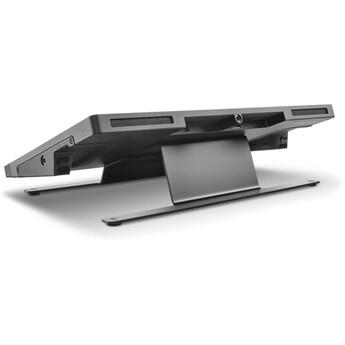

Wacom Cintiq Pro 17 Creative Pen & Touch Display
Model: DTH172K0A








| Active Area | 15.0 x 8.5" / 382 x 215 mm |
|---|---|
| Dimensions | 16.7 x 10 x 0.8" / 424.2 x 254 x 20.3 mm |
| Connectivity Cable | USB-C |
| Inputs/Outputs | 1x USB-C (Unspecified Interface) / Supports Video Alt Mode 1x Mini DisplayPort 1x HDMI |
| Buttons Customizable | Yes |
| Number of Buttons | 8 |
| Tilt | 60° |
|---|---|
| Pressure Sensitivity | Yes: 8192 Levels |
| Dimensions (L x D) | 6.3 x 0.3" / 160.0 x 8.4 mm |
| Technology | Electromagnetic Resonance (EMR) |
| Resolution | 5080 lpi |
| Report Rate | 240 pps |
| Number of Switches | 3 |
| Box Dimensions (LxWxH) | 18.3 x 13.5 x 3.4" |
|---|---|
| Package Weight | 11.715 lb |
| Native Resolution | 3840 x 2160 |
|---|---|
| Aspect Ratio | 16:9 |
| Display Size | 17.3" |
| Active Area | 15.0 x 8.5" / 382 x 215 mm |
| OS Compatibility | Windows 10 or Later / macOS 11 or Later / Linux |
|---|---|
| Multi-Touch | Yes |
| Input Power | 20 VDC at 3.25 A 100 to 240 VAC, 60 / 50 Hz |
| Power Consumption | ≤50 W |
| Weight | 4.9 lb / 2.2 kg |
| Wireless | No |
| Cable Length | 5.9' / 1.8 m |
| Viewing Angle (H x V) | 170 x 170° |
|---|---|
| Response Time | 8 ms |
| Pixel Pitch | 0.09945 mm |
| Maximum Brightness | 400 nits / cd/m2 |
| Color Gamut | 99% DCI-P3 88% Adobe RGB |
| Contrast Ratio | 1000:1 |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Size | 17.3" |
| Panel Type | IPS-Type LCD |
| Display Colors | 1.07 Billion |
