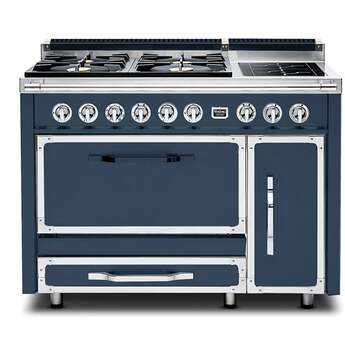

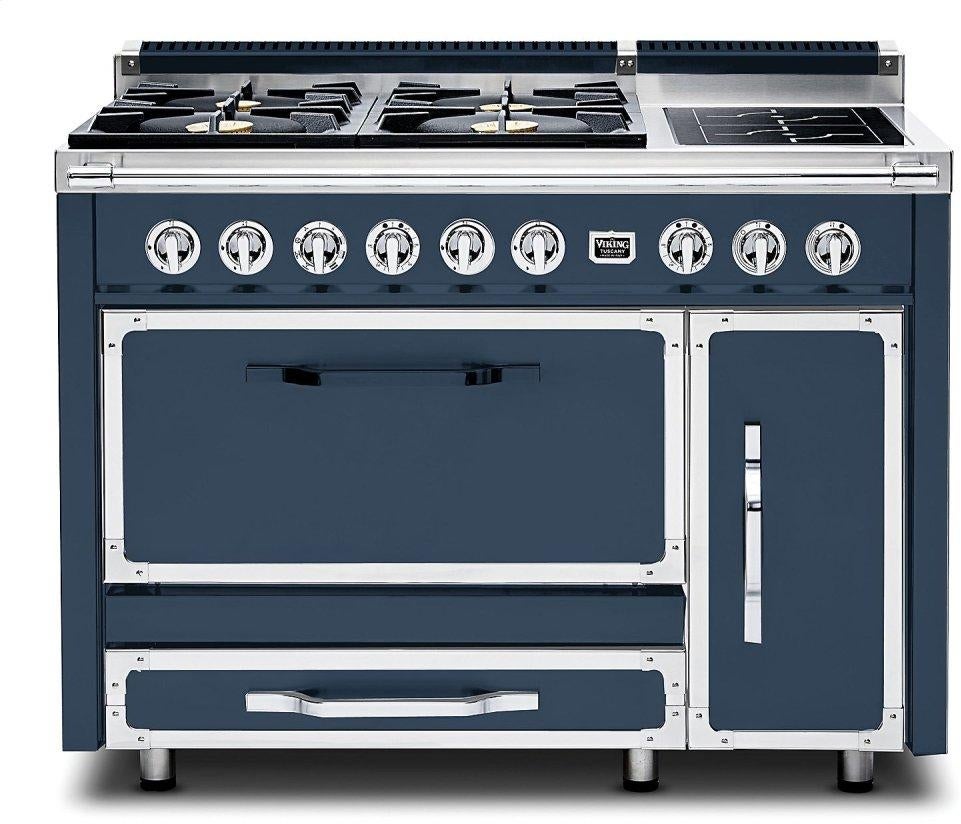

Viking TVDR4814ISB 48 Inch Induction Dual Fuel Convection Double Oven Freestanding Range
Model: TVDR4814ISB








| Stainless Steel Handle | Yes |
|---|---|
| Cutout Width | 48" |
| LP Conversion | Sold Separately |
| Ignition Type | Electronic Spark |
| Weight | 510.00 lbs |
| Number of Left Oven Lights | 2 |
| Burner Pan | Stainless Steel |
| Oven Cavity Material | Stainless Steel |
| Height Clearance from Hood | 30" - 36" |
| Amps at 208 Volts | 49 Amps |
| Minimum Volts | 208 Volts |
| Height without Backguard | 35.875" |
| Left Oven Rack Positions | 6 |
| Grate Type | Porcelain Coated Cast Iron |
| Knob Type | Polished Chrome Die Cast |
| Depth with Door at 90 Degrees | 40" |
| Depth without Handle | 27.5" |
| Burner Configuration | 4 Burners and 2 Induction Elements |
| Frequency | 60 Hz. |
| Broiler Element Location | Top |
| Secondary Oven Capacity | 2.4 cu. ft. |
|---|---|
| Secondary Interior Width | 11.625" |
| Secondary Interior Height | 18.25" |
| Secondary Interior Depth | 19.625" |
| Dual Door | Yes |
| Oven Racks | 3 |
| Steam-Clean | No |
| Broiler | Yes |
| Sabbath Mode | No |
| Self-Cleaning | No |
| Convection | Yes |
| Delay Bake | No |
| Digital Temperature Display | No |
| Interior Width | 23.75" |
| Interior Height | 13" |
| Interior Depth | 19.625" |
| Oven Control Type | Knobs |
| Steam Oven | No |
| Double Oven | Yes |
| Timer | No |
| Proofing | No |
| Temperature Probe | No |
| Interior Oven Light | Yes |
| Removable Door | No |
| Total Capacity | 6.2 cu. ft. |
| Primary Oven Capacity | 3.8 cu. ft. |
| Brand | Viking |
|---|---|
| UPC | 800284043782 |
| Warranty Info | 2 Year Complete Product Warranty Two-year full â complete product;Ninety-day fullâÂÂcosmetic parts such as glass,painted items,and decorative items;Five-year limitedâÂÂall gas burners,electric elements(Dual Fuel) |
| Exterior Width | 48" |
|---|---|
| Width | 47.875" |
| Height | 39.75" |
| Depth | 30.375" |
| Cast Iron Grates | Yes |
|---|---|
| Storage Drawer | Yes |
| TruGlide Oven Racks | Yes |
| Volts | 240 Volts |
|---|---|
| Amps | 30 Amps |
| Grill | No |
|---|---|
| Highest Burner Output | 20500 BTU |
| French Top | No |
| Cast Iron Grates | Yes |
| Griddle | No |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| Brass Burners | Yes |
| Elements | 2 |
| Burners | 4 |
| Burners / Elements | 6 |
| Induction | Yes |
| ADA Compliant | No |
|---|---|
| Star-K Certified | No |
| Front Left Output | 20500 |
|---|---|
| Front Right Output | 8500 |
| Middle Back Output | 13650 |
| Middle Front Output | 20500 |
| Back Right Output | 2500 |
| Back Left Output | 2500 |
| Style | Freestanding |
|---|---|
| Digital Clock | No |
| Gas Type | Natural Gas |
| Fuel Type | Dual Fuel |
| Viewing Window | No |
| Continuous Grates | Yes |
| Drawer | Storage |
| Cooktop | Sealed Burner |
