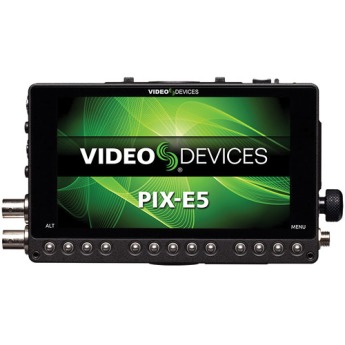

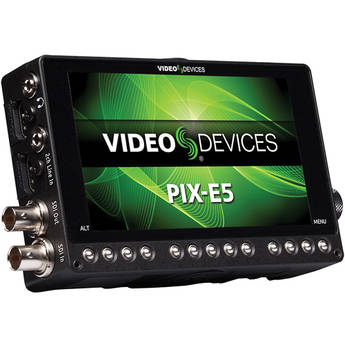

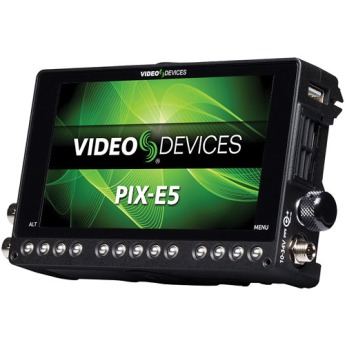

Video devices PIX-E5 5" 4K Recording Video Monitor
Model: PIX-E5
Video devices Warranty
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Unavailable
We are sorry. At this time, we are not accepting offers on this product.
Specifications
Recorder
| Recording Media | SpeedDrive SSD slot SD Card slot |
| Number of Audio Tracks | 8 maximum |
| Recording | HD (720p, 1080i, 1080p): up to 120 fps UHD 4K (3840 x 2160): up to 30 fps DCI 4K (4096 x 2160): up to 30 fps Apple ProRes Proxy to 4444 XQ H.264 (VBR ~ 10 Mb/s) Simultaneous 4K ProRes (MOV) and 1080p H.264 (MP4) |
Packaging Info
| Box Dimensions (LxWxH) | 8.85 x 8.0 x 4.5" |
| Package Weight | 2.85 lb |
Other
| Power | DC Input: 10 to 34 V 2 x Sony L-series battery |
| Dimensions | 5.4 x 3.4 x 1.6" / 137 x 86 x 41 mm |
| Weight | 1 lb / 454 g |

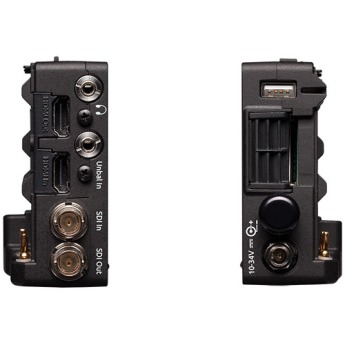

I/O
| Timecode | HDMI/SDI: Record run and Time of Day supported, also accepts start/stop control |
| Video | In: 1 x 6G-SDI 1 x HDMI Out: 1 x 3G-SDI 1 x HDMI Note: 4K video will be downconverted to 1080p at output |
| Audio | Analog In: 2 x 3.5 mm unbalanced line level Digital In: 8-channel SDI embedded audio 2-channel HDMI embedded audio 1 x 3.5 mm headphone out |
Display
| Angle of View | 179° |
| Contrast Ratio | 1000:1 |
| Brightness | 500 nits |
| Resolution | 1920 x 1080 441 ppi |
| Size | 5" / 13 cm |
| Panel Type | IPS |
- 5" 1920 x 1080 Touchscreen Display
- Record DCI 4K (4096 x 2160) up to 30 fps
- Record 1080p up to 120 fps
- Simultaneous 4K ProRes and 1080p H.264
- ProRes 4:2:2 and 4:4:4 Encoding
- Uses mSATA SpeedDrive Media
- 4K-Capable HDMI Input with Loop-Through
- SDI Input with Loop-Through
- Analog Audio Input
- Physical Button and Jog-Dial Controls
- Video Devices PIX-E5 5" 4K Recording Video Monitor
- AC to DC Power Supply (100 - 240V)
- USB Cable
- Limited 1-Year Warranty
