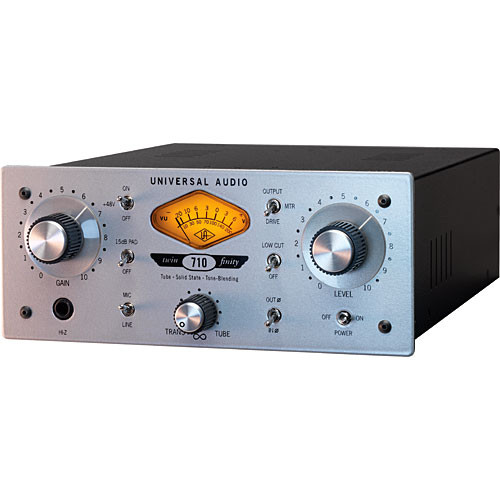

Universal Audio 710 Twin-Finity - Microphone/Line Preamplifier
Model: 710








| Package Weight | 9.25 lb |
|---|---|
| Box Dimensions (LxWxH) | 14.8 x 11.5 x 5.8" |
| Output | 1 x XLR Line (pin hot switchable with phase switch) |
|---|---|
| Phantom Power | +48V |
| Multi Function | No |
| Gain Range | Infinity to 70dB |
| Maximum Output Level | +18dBu into 600Ω+28dBu into 100kΩ |
| Number of Channels | Single |
| THD + Noise | Tube @ +4dBu: 0.1%Solid-State @ +4dBu: 0.005% |
| Power Requirements | 100V to 240V, auto-sensing power supply |
| Dimensions (WxDxH) | 8.45 x 10.25 x 3.5" (215 x 260 x 89mm) |
| Weight | 5.25 lbs (2.4kg) |
| Specialties | -15dB pad75Hz Bessel low-cut filter |
| Frequency Response | 20Hz to 100kHz, +/-0.2dBu |
| Inputs | 1 x XLR Microphone (2-pin hot)1 x XLR Line (2-pin hot) |
