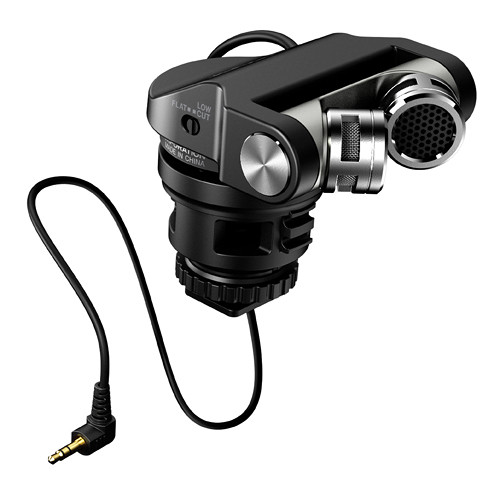

Tascam TM-2X Stereo XY Condenser DSLR Microphone
Model: TM-2X








| Package Weight | 0.6 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.5 x 6.2 x 2.3" |
| Frequency Response | 50 Hz to 20 kHz |
|---|---|
| Maximum Input Level | 120 dB SPL (@ 1 kHz with sensitivity set to H and low-cut filter set to FLAT) |
| Output Impedance | 1.6 kΩ (RL = 2.2 kΩ, Vcc = 2.5 V ) |
| Signal to Noise Ratio | 74 dB typical (RL = 2.2 kΩ, Vcc = 2.5 V ) |
| Sensitivity | H Setting: −37 dB (1 kHz, 0 dB = 1 V/Pa), (RL = 2.2 kΩ, Vcc = 2.5 V )L Setting: −52 dB (1 kHz, 0 dB = 1 V/Pa), (RL = 2.2 kΩ, Vcc = 2.5 V ) |
| Low Cut Filters | 130 Hz (RL = 2.2 kΩ, Vcc = 2.5 V ) |
| Type | Condenser |
| Connector | 1/8" (3.5 mm) TRS stereo mini plug (Tip: left channel, Ring: right channel, Sleeve: ground) |
| Power Requirement | Plug-in power (JEITA standard CP-1203A) |
| Operating Temperature Range | 41 to 95°F (5 to 35°C) |
| Dimensions (WxHxD) | 2.2 x 2.3 x 2.7" (57 x 59 x 69 mm), excluding cable and accessories) |
| Weight | 2.6 oz (75.0 g) |
| Cable Length | 13" (33 cm) |
| Polar Pattern | Cardioid |
