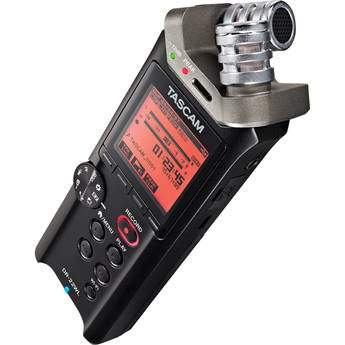

Tascam DR-22WL Portable Handheld Recorder with Wi-Fi

Model #DR-22WL

Tascam Warranty
Tascam dr 22wl 1
Tascam dr 22wl 1
Tascam dr 22wl 2
Tascam dr 22wl 3
Tascam dr 22wl 4
Tascam dr 22wl 5
Tascam dr 22wl 6
Tascam dr 22wl 7
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.

Specifications

Wi-Fi

Compliance IEEE 802.11b/g/n (2.4 GHz only)
Security WPA2-PSK (WPS 2.0-supported)
Communication Mode Simple access point (Limited AP)

USB

Connector Micro-B type, 4-pin
Format USB 2.0 High-Speed mass storage class

Recording Media

Recording Media microSD card (64 MB to 2 GB)
microSDHC card (4 to 32 GB)
microSDXC card(48 to 128 GB)

Recording Format

MP3 Sampling Frequency: 44.1, 48 kHz
Recording Bit Rate: 32, 64, 96, 128, 192, 256, 320 kbps
Playback Bit Rate: 32 to 320 kbps
WAV/BWF Sampling Frequency: 44.1, 48, 96 kHz
Quantization Bit Rate: 16- or 24-bit

Power Supply

Battery Life Alkaline Batteries:
Recording: About 17.5 hours (with built-in mic)
Playback: About 19 hours (with built-in speaker)
Ni-MH Batteries:
Recording: About 13.5 hours (with built-in mic)
Playback: About 14.5 hours (with built-in speaker)
Power Supply 2x AA batteries (alkaline or NiMH),
USB bus power from a computer
Optional AC Adapter
Power Consumption 1.7 W (maximum)

Dimensions & Weight

Weight 6 oz (170 g) with batteries
4.3 oz (123 g) without batteries
Dimensions (H x W x D) 6.1 x 2.1 x 1.4" (155 x 52.2 x 36.6 mm)

Computer Requirements

Windows Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
Mac OS 10.2 to 10.9

Channel

Channels 2 channels (stereo)

Audio Performance

Signal to Noise Ratio 92 dB or more (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)
Frequency Response 20 Hz to 20 kHz +1/-3 dB (Fs 44.1 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 22 kHz +1/-3 dB (Fs 48 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 40 kHz +1/-3 dB (Fs 96 kHz, EXT IN to LINE OUT, JEITA)
Distortion 0.05% or less (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)

Attachment

Attachment Tripod Attachment Screw Hole: 1/4" (6.3 mm) tripod attachment screw hole

Analog Input

Maximum Input Level -4 dBV
Nominal Input Level -20 dBV
Input Impedance 10 kΩ or more
Mic/Line Inputs 1/8" (3.5 mm) stereo mini jack, plug-in power compatible

Analog Audio Outputs

Connector 1/8" (3.5 mm) stereo mini jack
Maximum Output Level Line Output: +2 dBV(10 kΩ load)
Headphone Output: 20 mW + 20 mW(32 Ω load)
Nominal Output Level -14 dBV(10 kΩ load)
Product Highlights
  • Wi-Fi Enabled Control and File Transfers
  • Stereo XY Condenser Microphone
  • 24-bit/96kHz Recording
  • Scene Dial for Common Recording Modes
  • Dual-Format Recording
  • LCD Menu Screen
  • Record to microSD Cards
In The Box
  • Tascam DR-22WL Portable Handheld Recorder with Wi-Fi
  • 4GB microSD Card
  • USB Cable
  • 2 x AA Batteries
  • Limited 1-Year Warranty
