SUMMIT brings quality and value under the counter with the industry's largest collection of ADA compliant built-in refrigeration.
The FFRF36IFADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. The two doors feature an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 7/8" H x 17 9/16" W; 3/4" thick with a maximum weight of 10 lbs.). Users must supply their own door handle. A stainless steel kickplate adds elegance to any space. Its white interior makes viewing interior contents easy, and a jet black cabinet completes the look. The sealed back simplifies cleanup and offers space savings, while its frost-free operation ensures minimal user maintenance.
Each compartment has LED lighting to provide an attractive, energy-efficient presentation. Internal fans help to evenly cool each compartment. The user-friendly front digital display makes temperature control easy with a readout in either Fahrenheit or Celsius.

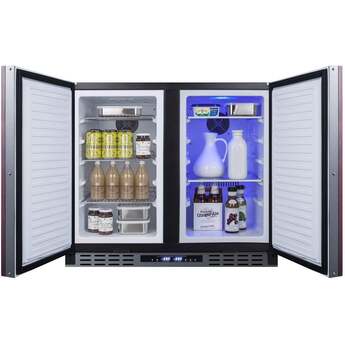

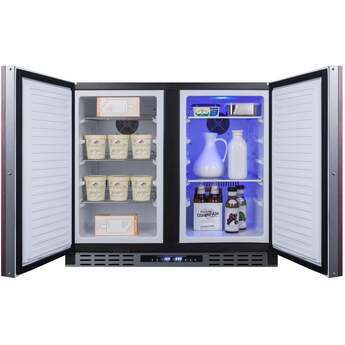

Inside, the FFRF36IFADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button.
The FFRF36ADA is sized at 31 5/8 inches high to fit under lower ADA compliant counters. For this unit in standard height, see the FFRF36IF.
NOTE: Due to its larger commercial design, the FFRF36IFADA requires an additional 5/8" of width for each door to open to a full 90 degree. If placing this unit against a right angle wall, be sure to accommodate this extra space.
Features:
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
ADA compliant design
31 5/8 height for use under lower ADA compliant counters
Built-in capable
Front-breathing system allows the unit to be used built-in
All-in-one design
Separate refrigerator and freezer sections with single compressor operation

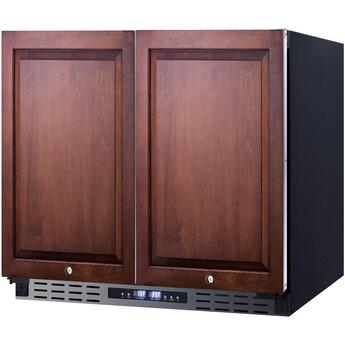

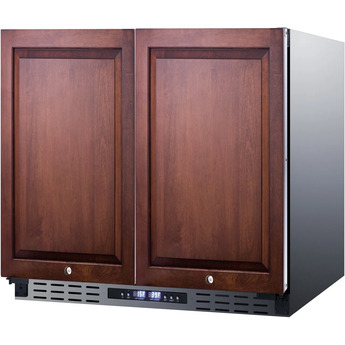

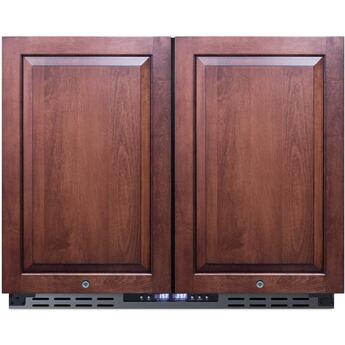

Panel-ready doors
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 17 9/16" W x 27 7/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
Frost-free operation
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
Digital thermostat
Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
LED lighting
Interior LED lighting in both sections offers an attractive and energy efficient presentation

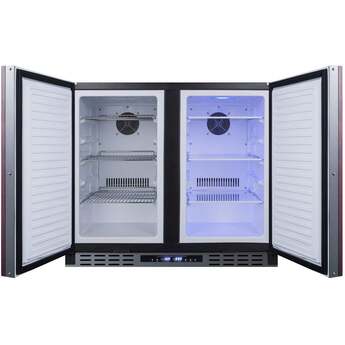

Adjustable shelves (5 placement options)
Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
Convertible freezer
Freezer compartment temperature can be set to serve as a second refrigerator as needed
Internal fans
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability
Temperature memory function
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Fully finished cabinet
Allows the unit to be used freestanding
Leveling legs
Two leveling legs ensure the unit is even when placed on uneven surfaces
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Interior Dimensions - Refrigerator
Refrigerator - Interior Height: 23.5" (60 cm)
Refrigerator - Interior Width: 12.75" (32 cm)
Refrigerator - Interior Depth: 16.75" (43 cm)
Shelf Details - Refrigerator
Shelf Type: Glass
Shelf Qty: 3
Adjustable Shelves: Yes
Refrigerant Details - Refrigerator
Refrigerator - Refrigerant Type: R600a
Refrigerator - Refrigerant Amount: 1.59 oz.
Interior Dimensions - Freezer
Freezer - Interior Height: 23.5" (60 cm)
Freezer - Interior Width: 12.75" (32 cm)
Freezer - Interior Depth: 16.75" (43 cm)
Shelf Details - Freezer
Shelf Type: Chrome
Shelf Qty: 3
Adjustable Shelves: Yes
Refrigerant Details - Freezer
Freezer - Refrigerant Type: R600a
Freezer - Refrigerant Amount: 1.59 oz.
Compressor Details
Compressor Step Height: 4.75" (12 cm)
Compressor Step Width: 12.75" (32 cm)
Compressor Step Depth: 4.25" (11 cm)
Other Features
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.59 oz.
High Side PSI: 150.0
Low Side PSI: 50.0
Level Legs: 2
Freezer - Temperature Range: -22 degree Fahrenheit to 46 degree Fahrenheit
Refrigerator - Temperature Range: 36 degree Fahrenheit to 46 degree Fahrenheit
Door Swing: French
Adjustable Shelves: Yes
Interior Light: Yes
Energy Usage: 504.0kWh/year
