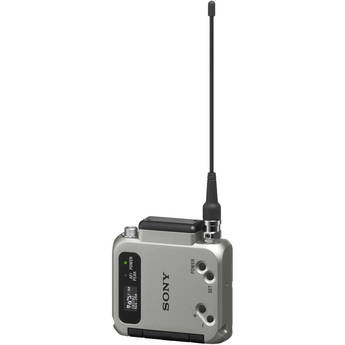

Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter
Model #DWT-B03R
Sony Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- All Products are New and from Manufacturer Authorized Retailers
- 30 day return policy
- Free Shipping
No Additional Fees
Coming Soon!
This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.
Thank you! We will be in touch.
Something went wrong. Please try again later.
Specifications
General Information
| Weight | 3.5 oz / 99.0 g |
| Dimensions (W x H x D) | 2.09 x 2.36 x 0.67" / 5.30 x 6.00 x 1.70 cm 2.36 x 2.36 x 0.67" / 6.00 x 6.00 x 1.70 cm with the projection parts) (excluding the antennas) |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Battery Operating Time | Approximately 7 hours with Sony's NP-BX1 at 77°F / 25°C at 10 mW output (with the wireless remote control function off and dimmer mode set to auto off) |
| Power Requirements | 3.6 VDC (with rechargeable battery pack NP-BX1) |
| Display | OLED |
| Wireless Remote | Cross Remote (2.4-GHz IEEE802.15.4 compliant) |
| Audio Delay | Mode 1: 0.8 ms (total: 2.7 ms) Mode 2: 0.7 ms (total: 1.2 ms) Mode 3: 1.8 ms (total 3.7 ms) *Analog output |
| Total Harmonic Distortion (THD) | Mode 1, Mode 2: 0.03% or less Mode 3: 0.3% or less |
| Dynamic Range | 106 dB or more typical (A-weighted, T.H.D. = 1%) |
| Frequency Response | 20 Hz to 22 kHz (typical) |
| Attenuator | Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, Mic input mode only) |
| Maximum Input Level | Mic: -22 dBu (with 0 dB attenuator) Line: +24 dBu |
| Reference Input Level | Mic: -60 dBV (-58 dBu), 1 kHz (at 0 dB attenuator level) Line: +4 dBu, 1 kHz |
| Input Connector | Small 3-pin connector with lock |
| RF Power | 2/10/25 mW (e.r.p) selectable |
| Audio Carrier Frequencies | UC7: 470.125 to 607.875 MHz and 614.125 to 615.875 MHz, 25 kHz steps |
| Emission | G1E or G1D |
| Antenna Type | λ/4 flexible wire |
| Oscillator Type | Crystal-controlled PLL Synthesizer |
| Wireless Interface | WiDIF-HP |
- 470.125 to 607.875 MHz, 25 kHz Steps
- 614.125 to 615.875 MHz, 25 kHz Steps
- High-Quality Wireless Audio
- AES 256-Bit Encryption
- OLED Display
- Small 3-Pin Connector with Lock
- Selectable RF Output Power
- Easy, Versatile Remote Operation
- NP-BX1 Battery and CD Rom
- Includes Belt Clip and Carrying Case
- Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter
- Belt Clip
- Carrying Case
- NP-BX1 Lithium-Ion Battery
- Scribble Sheet
- CD-ROM
- Limited 1-Year Warranty
