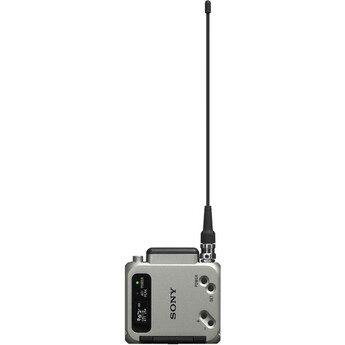

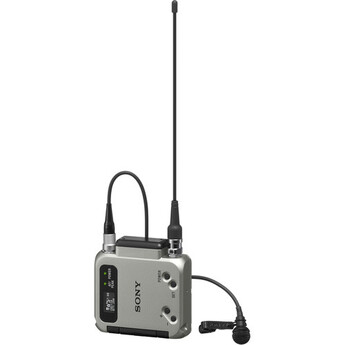

Sony DWT-B03R DWX Series Digital Wireless Microphone Bodypack Transmitter
Model: DWT-B03R








| Wireless Interface | WiDIF-HP |
|---|---|
| Oscillator Type | Crystal-controlled PLL Synthesizer |
| Antenna Type | λ/4 flexible wire |
| Emission | G1E or G1D |
| Audio Carrier Frequencies | UC7: 470.125 to 607.875 MHz and 614.125 to 615.875 MHz, 25 kHz steps |
| RF Power | 2/10/25 mW (e.r.p) selectable |
| Input Connector | Small 3-pin connector with lock |
| Reference Input Level | Mic: -60 dBV (-58 dBu), 1 kHz (at 0 dB attenuator level) Line: +4 dBu, 1 kHz |
| Maximum Input Level | Mic: -22 dBu (with 0 dB attenuator) Line: +24 dBu |
| Attenuator | Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, Mic input mode only) |
| Frequency Response | 20 Hz to 22 kHz (typical) |
| Dynamic Range | 106 dB or more typical (A-weighted, T.H.D. = 1%) |
| Total Harmonic Distortion (THD) | Mode 1, Mode 2: 0.03% or less Mode 3: 0.3% or less |
| Audio Delay | Mode 1: 0.8 ms (total: 2.7 ms) Mode 2: 0.7 ms (total: 1.2 ms) Mode 3: 1.8 ms (total 3.7 ms) *Analog output |
| Wireless Remote | Cross Remote (2.4-GHz IEEE802.15.4 compliant) |
| Display | OLED |

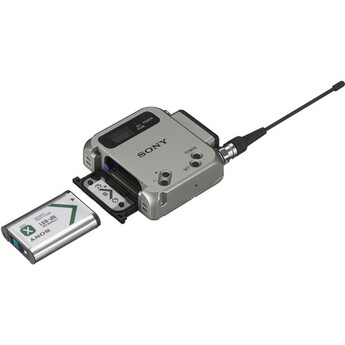

| Power Requirements | 3.6 VDC (with rechargeable battery pack NP-BX1) |
| Battery Operating Time | Approximately 7 hours with Sony's NP-BX1 at 77°F / 25°C at 10 mW output (with the wireless remote control function off and dimmer mode set to auto off) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions (W x H x D) | 2.09 x 2.36 x 0.67" / 5.30 x 6.00 x 1.70 cm 2.36 x 2.36 x 0.67" / 6.00 x 6.00 x 1.70 cm with the projection parts) (excluding the antennas) |
| Weight | 3.5 oz / 99.0 g |
