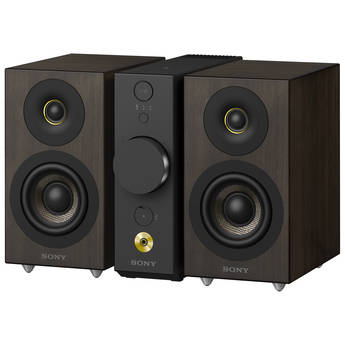

Sony CAS-1 High-Resolution Desktop Audio System with Headphone Amplifier
Model: CAS-1
Sony Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Unavailable
We are sorry. At this time, we are not accepting offers on this product.
Specifications
USB
| Supported Formats | USB type-A port: MP3: 16 / 22.05 / 24 / 32 / 44.1 / 48 kHz, 32 to 320 kbps (CBR/VBR) AAC: 16 / 22.05 / 24 /32 / 44.1 / 48 / 88.2 / 96 kHz, 40 to 320 kbps (CBR/VBR) WMA: 32 / 44.1 / 48 kHz, 16 to 320 kbps (CBR/VBR) WAV: 16 / 22.05 / 24 / 32 /44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit) AIFF: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit) FLAC: 44.1 / 48/ 88.2 / 96 / 176.4 / 192 kHz (16/24-bit) ALAC: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16/24-bit) DSD (DSF / DSDIFF): 2.8 MHz (1-bit) This port supports USB flash drives and compatible Walkmen USB type-B port: PCM: 44.1 / 48 / 88.2 / 96 /176.4 / 192 kHz (16/24/32-bit) DSD (DSF / DSDIFF): 2.8 MHz (1-bit) This port supports compatible PC and other devices via included USB cable |
| Speaker Impedance | Rated: 5 Ohms |
| Speaker Size | Tweeter: 1 x 0.6" / 14 mm, soft dome type Woofer: 1 x 2.4" / 62 mm, cone type |
| Speaker System | 2-way, 2-drivers, Bass reflex |
| Headphones | 2 x 250 mW (8 Ohms, THD 1%) 2 x 180 mW (32 Ohms, THD 1%) 2 x 35 mW (300 Ohms, THD 1%) |
| Supported File Systems | Type-A: FAT, FAT32, exFAT |
| Maximum Output Current | Type-A: 1 A Max (Depending on the device, the charge current might be limited to 500 mA) |
| USB Device Support | Type-A: Mass Storage Class (MSC) |
| Transfer Speed | Type-A: High-speed |
Packaging Info
| Box Dimensions (LxWxH) | 16.0 x 10.6 x 10.0" |
| Package Weight | 16.65 lb |
General
| Weight | Amplifier: 2.9 lb / 1.3 kg Speaker: 3.3 lb / 1.5 kg |
| Dimensions (W x H x D) | Amplifier: 2.2 x 7.0 x 8.3" / 5.5 x 17.8 x 21.0 cm Speaker system: 3.7 x 7.0 x 6.8" / 9.5 x 17.8 x 17.2 cm |
| Power Requirements | 19.5 VDC (using the supplied AC adapter connected to 100 - 240 VAC, 50 Hz/60 Hz power supply) |
| Power Consumption | 29 W with supplied AC adapter 0.5 W (Standby mode with Bluetooth standby set to off) 2 W (Standby mode with Bluetooth standby set to on) |
Bluetooth
| Bluetooth Pairing | Up to 9 devices Please note: When the unit has been already been paired with 9 Bluetooth devices and you attempt to pair with an additional device, the pairing information of the oldest connected device is deleted automatically |
| Maximum Range | Approximately 32.8' / 10.0 m, line of sight |
| Output | Bluetooth specification power class 2 |
| Content Protection | SCMS-T method |
| Bluetooth Profiles | A2DP, AVRCP |
| Bluetooth Specification | Version 3.0 |
| Radio Frequency | 2.4 GHz band (2.4 to 2.48 GHz) |
| Transmission | Bandwidth: 20 Hz to 20 kHz (at 44.1 kHz) 20 Hz to 40 kHz (at LDAC 96 kHz, 990 kbps) |
Amplifier
| Frequency Response | 10 Hz to 40 kHz (+0 and -3 dB) |
| Power Output | Reference: 2 X 24 W (5 Ohms, 1 kHz, THD 10%) Rated: 2 x 20 W (5 Ohms, 20 Hz to 20 kHz, THD 10%) |
| Impedance Matching | 5 to 16 Ohms |
User Reviews
Great little device dont get me wrong it has powerfull amplification of headphones if you have large collection of ripped sacd its perfect companion for music enthusiastic price might put u offf but its a great gear for small studio or office or lounge it will fill up your room with exquisite music
- 2 x 20W RMS Power
- Separate Headphone Amp with On-Board DAC
- Bluetooth Audio Streaming with NFC
- DSD With Up-Scaling Technology
- 2-Way Speaker System with Bass Reflex
- 2 x 0.6" Tweeters / 2 x 2.4" Woofers
- Compatible with WAVs, MP3s, FLACs & More
- On-Board USB Type-A & Type-B Ports
- Selectable Impedance on Headphone Amp
- Includes Power Cord, Cables & Remote
