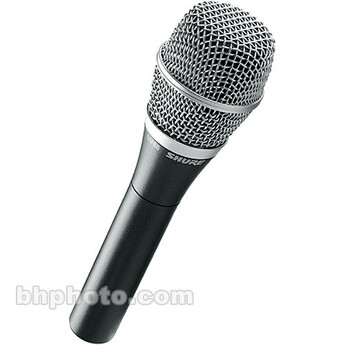

Shure SM86 - Cardioid Condenser Handheld Microphone
Model: SM86








| Package Weight | 1.3 lb |
|---|---|
| Box Dimensions (LxWxH) | 10.2 x 5.0 x 3.4" |
| Frequency Response | 50Hz to 18,000Hz |
|---|---|
| Maximum Input Sound Level | (at 1,000 Hz) 1,000 ohm load (1%THD): 147dB |
| Power Requirements | 11 to 52 Vdc Phantom Power |
| Transducer | (Electret Bias) Condenser |
| Output Connectors | Balanced 3-pin XLR |
| Dimensions | 7.2 x .95" (183 x 24mm) (Length x Diameter) |
| Weight | 278 grams (9.8 oz) |
| Output Impedance | 150 ohms at 1kHz Recommended minimum load impedance: 600 ohms |
| Polar Pattern | Cardioid |
