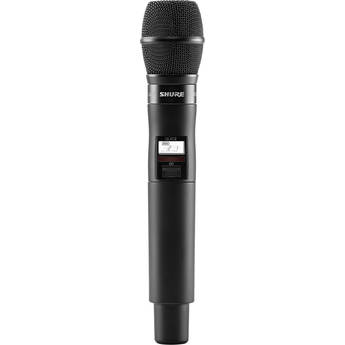

Shure QLXD2/KSM9HS VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz)

Model #QLXD2/K9HS-V50

Shure Warranty
Shure qlxd2 k9hs v50 1
Shure qlxd2 k9hs v50 1
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Coming Soon!

This is a new item and not yet available for sale from anyone in our network. Click the button below and we will notify you when it becomes available.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

General Information

RF Carrier Frequency Range V50: 174 to 216 MHz
Working Range 328' (100 m)
RF Tuning Step Size: 25 kHz, varies by region
Image Rejection Better than 70 dB, typical
RF Sensitivity −97 dBm at 10−5 BER
Latency Less than 2.9 ms
Frequency Response 20 Hz to 20 kHz
Audio Dynamic Range System Gain @ +10: Better than 120 dB, A-weighted, typical
Total Harmonic Distortion (THD) −12 dBFS input, System Gain @ +10: Less than 0.1%
Polarity System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range 0° to 122°F (-18° to 50°C) Note: Battery characteristics may limit this range.
Storage Temperature Range -20° to 165°F (-29° to 74°C) Note: Battery characteristics may limit this range.
Mic Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime At 10 mW Shure SB900: up to 10 hours Alkaline: up to 9 hours
Audio Input Configuration: unbalanced Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type
Capsule KSM9HS
RF Output Antenna Type: Integrated single band helical Occupied Bandwidth: Less than 200 kHz Modulation Type: Shure proprietary digital Power: 1 mW or 10 mW (varies by region)
Housing Machined aluminum
Dimensions (L x Diam) 10.1 x 1.5" (256 x 37 mm)
Weight 12.2 oz (347 g) without batteries
Product Highlights
  • Works with Shure QLX-D Wireless Systems
  • For Broadcast, EFP and ENG Applications
  • 20 Hz to 20 kHz Frequency Response
  • Over 60 Preset Compatible Channels
  • Runs on AA Alkaline Batteries
  • Microphone Clip is Included
  • Includes 2 AA Batteries
  • Battery Contact Cover is Included
In The Box
  • Shure QLXD2/KSM9HS VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz)
  • 2 x AA Batteries
  • Battery Contact Cover
  • Microphone Clip
  • Limited 2-Year Warranty
