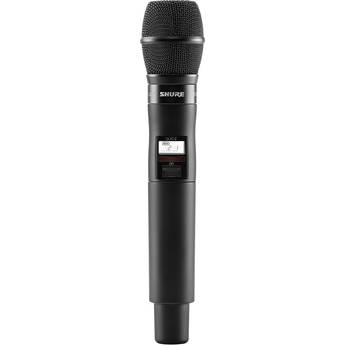

Shure QLXD2/KSM9HS Handheld Wireless Transmitter (G50: 470 to 534 MHz)
Model #QLXD2/KSM9HS-G50
Shure Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- All Products are New and from Manufacturer Authorized Retailers
- 30 day return policy
-
Free Shipping
No Additional Fees
Product Back-Ordered
We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.
Thank you! We will be in touch.
Something went wrong. Please try again later.
Specifications
General Information
| RF Carrier Frequency Range | G50: 470 to 534 MHz |
| Working Range | 328' (100 m) |
| RF | Tuning Step Size: 25 kHz, varies by region |
| Image Rejection | Better than 70 dB, typical |
| RF Sensitivity | −97 dBm at 10−5 BER |
| Latency | Less than 2.9 ms |
| Frequency Response | 20 Hz to 20 kHz |
| Audio Dynamic Range | System Gain @ +10: Better than 120 dB, A-weighted, typical |
| Total Harmonic Distortion (THD) | −12 dBFS input, System Gain @ +10: Less than 0.1% |
| Polarity | System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output. |
| Operating Temperature Range | 0° to 122°F (-18° to 50°C) Note: Battery characteristics may limit this range. |
| Storage Temperature Range | -20° to 165°F (-29° to 74°C) Note: Battery characteristics may limit this range. |
| Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| Battery Type | Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V |
| Battery Runtime | At 10 mW Shure SB900: up to 10 hours Alkaline: up to 9 hours |
| Audio Input | Configuration: unbalanced Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type |
| Maximum Input Level | 1 kHz at 1% THD: 145 dB SPL (SM58), typical Note: Dependent on microphone type |
| Capsule | KSM9HS |
| RF Output | Antenna Type: Integrated single band helical Occupied Bandwidth: Less than 200 kHz Modulation Type: Shure proprietary digital Power: 1 mW or 10 mW (varies by region) |
| Housing | Machined aluminum |
| Dimensions (L x Diam) | 10.1 x 1.5" (256 x 37 mm) |
| Weight | 12.2 oz (347 g) without batteries |
- Works with Shure QLX-D Wireless Systems
- For Broadcast, EFP and ENG Applications
- 20 Hz to 20 kHz Frequency Response
- Over 60 Preset Compatible Channels
- Runs on AA Alkaline Batteries
- Microphone Clip is Included
- Includes 2 AA Batteries
- Battery Contact Cover is Included
- Shure QLXD2/KSM9HS Handheld Wireless Transmitter (G50: 470 to 534 MHz)
- 2 x AA Batteries
- Battery Contact Cover
- Microphone Clip
- Limited 2-Year Warranty
