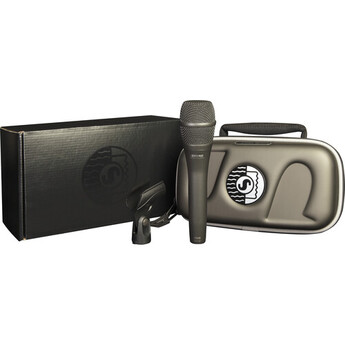

Shure KSM9 Cardioid & Supercardioid Handheld Condenser Microphone (Charcoal Gray)
Model: KSM9/CG








| Package Weight | 2.85 lb |
|---|---|
| Box Dimensions (LxWxH) | 10.8 x 6.3 x 5.0" |
| Frequency Response | 50Hz to 20kHz |
|---|---|
| Dynamic Range (Typical) | 2500 ohm load: 130 dB 1000 ohm load: 130 dB |
| Signal-to-Noise Ratio | 72dB |
| Maximum Input Sound Level | 2500 ohm load: 152 dB 1000 ohm load: 152 dB |
| Power Requirements | 48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3 |
| Transducer | Condenser (Electret Biased) |
| Output Connectors | 3-pin XLR |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | 1.92 x 7.51" (49 x 191mm) (Length x Diameter) |
| Weight | not specified by manufacturer |
| Output Impedance | 150 ohms (actual) |
| Polar Pattern | Cardioid / Supercardioid switchable |
