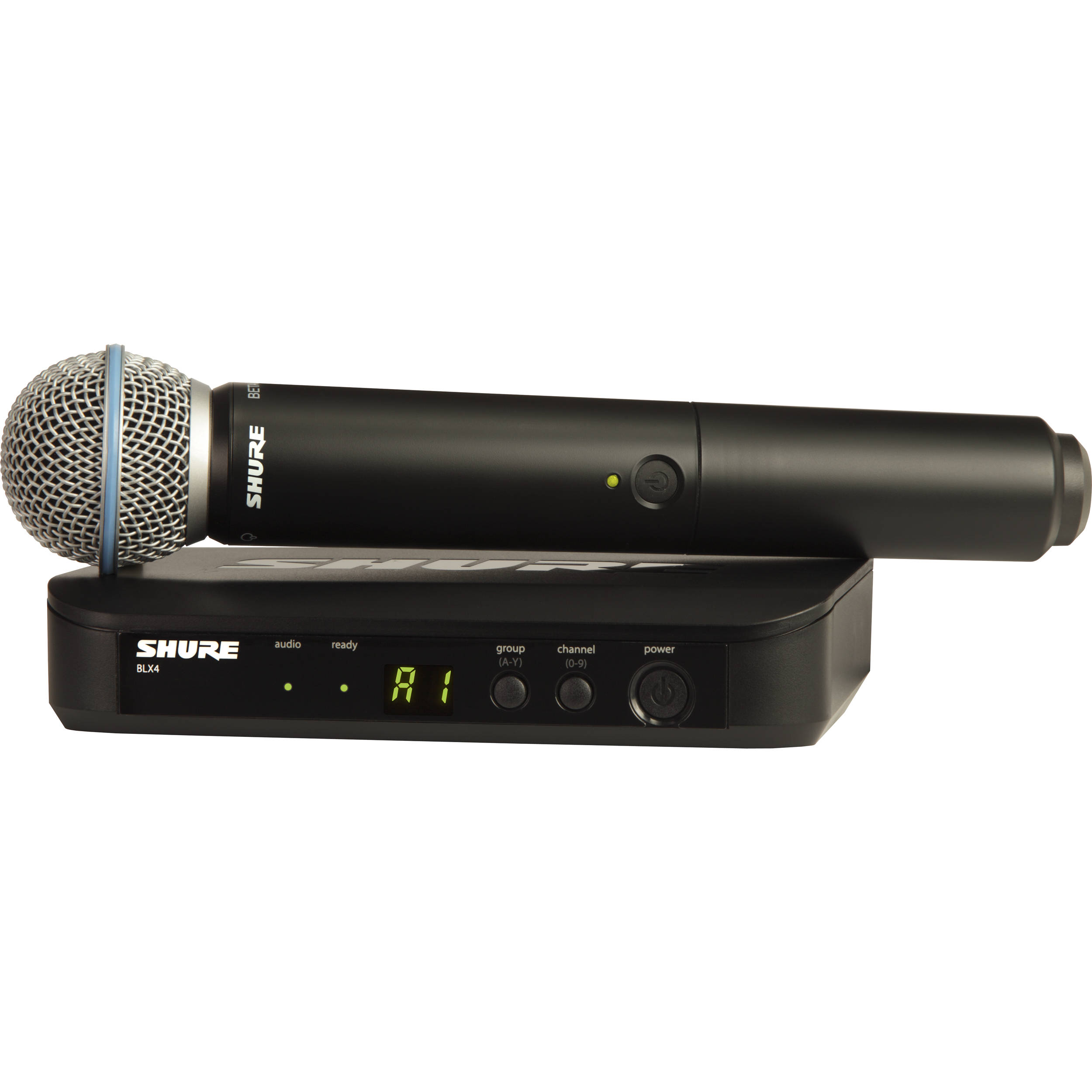

Shure BLX24 Handheld Wireless System With Beta 58A Mic (H9: 512 - 542 MHz)
Model: BLX24/B58-H9








| Audio Input Level | 0 dB Gain: -20 dBV Maximum -10 dB Gain: -10 dBV Maximum |
|---|---|
| Weight | 7.7 oz (218 g) |
| Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) |
| Housing | Molded ABS |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| RF Output | 10 mW, Typical (Varies by Region) |
| Gain Adjustment Range | 10 dB |
| Box Dimensions (LxWxH) | 11.1 x 5.2 x 3.1" |
|---|---|
| Box Dimensions (LxWxH) | 13.5 x 12.0 x 3.8" |
| Polar Pattern | Cardioid |
|---|---|
| Output Level | -54.5 dBV/PA (1.85 mV) |
| Frequency Response | 50 Hz to 15 kHz |
| Housing | Molded ABS |
|---|---|
| Image Rejection | >50 dB, Typical |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Audio Output Level | XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) |
| Output Impedance | XLR: 200 ohms 1/4": 50 ohms |
| Output | 1x XLR Output 1x 1/4" (6.35 mm) Output |
| Weight | 8.5 oz (241 g) |
| Dimensions (H x W x D) | 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm) |
| Power Requirement | 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive) |
