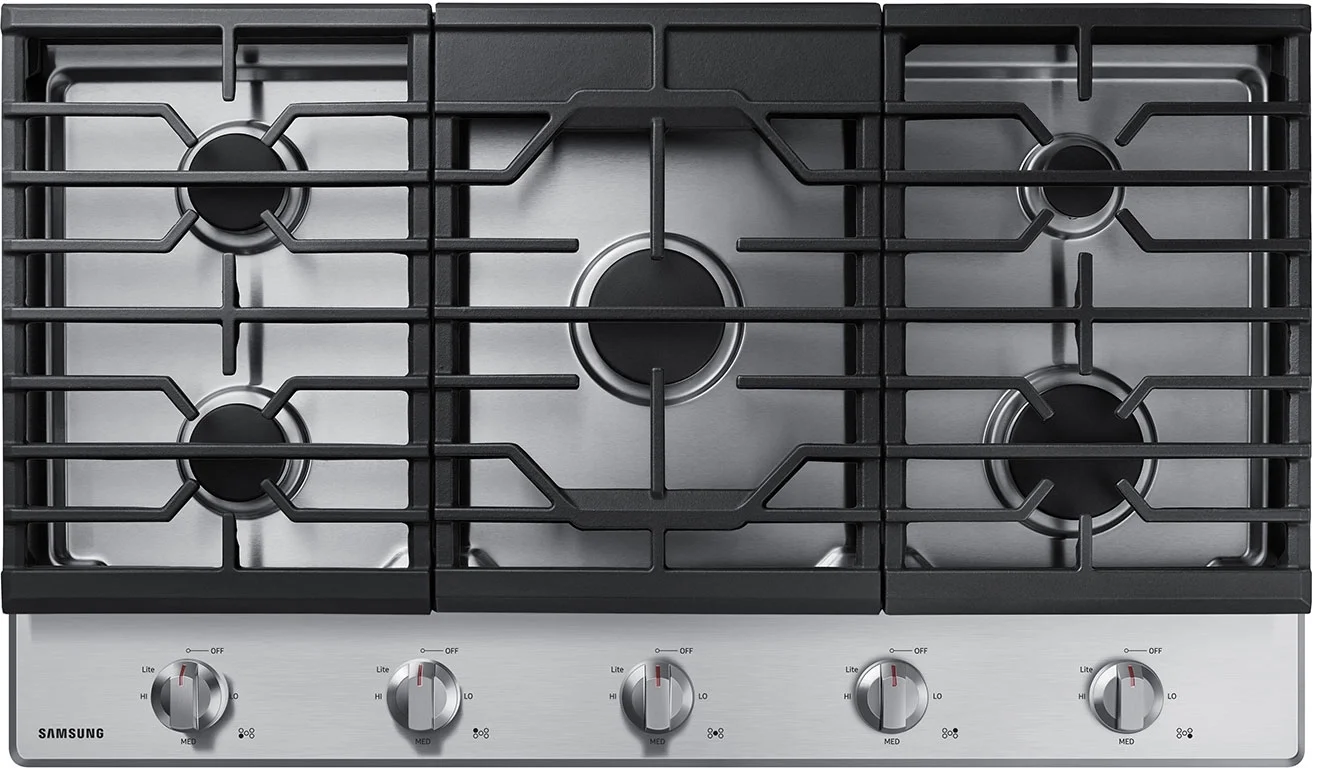

Samsung NA36R5310FS 36 Inch Gas Sealed Burner Cooktop
Model: NA36R5310FS








| Weight | 66.5 lbs. |
|---|---|
| Highest Burner Output | 17000 BTU |
| Warranty Terms | 1 Year Parts and Labor |
| UPC | 887276298948 |
|---|---|
| Warranty Info | 1 Year Warranty* One (1) year * Warranty coverage can differ by model/year, please look at the user manual for your unit to check your coverage. Eight (8) years for Magnetron *Varies by model Ten (10) years for Magnetron *Varies by mode |
| Brand | Samsung |
| Light | No |
|---|---|
| Sealed Burners | Yes |
| Cast Iron Grates | Yes |
| Volts | 120 Volts |
|---|---|
| Amps | 15 Amps |
| Cutout Height | 3.125" |
|---|---|
| Cutout Width | 33.875" |
| Exterior Width | 36" |
| Height | 5.6875" |
| Depth | 21" |
| Width | 36" |
| Cutout Depth | 19.125" |
| Convertible to Liquid Propane | Yes |
|---|---|
| Control Location | Front |
| Gas Type | Natural Gas |
| Sabbath Mode | No |
| Timer | No |
| ADA Compliant | Yes |
|---|
| Middle Center Burner | 17000 |
|---|---|
| Front Left Output | 10000 |
| Back Left Output | 10000 |
| Back Right Output | 5000 |
| Front Right Output | 13000 |
| Burners | 5 |
|---|---|
| Griddle | No |
| Grill | No |
| French Top | No |
| Style | Sealed Burner |
| Fuel Type | Gas |
| Installs Over Oven | Yes |
| Type | Cooktop |
| Reversible Grates | No |
| Control Type | Knobs |
| Color | Stainless Steel |
| Downdraft Venting | No |
