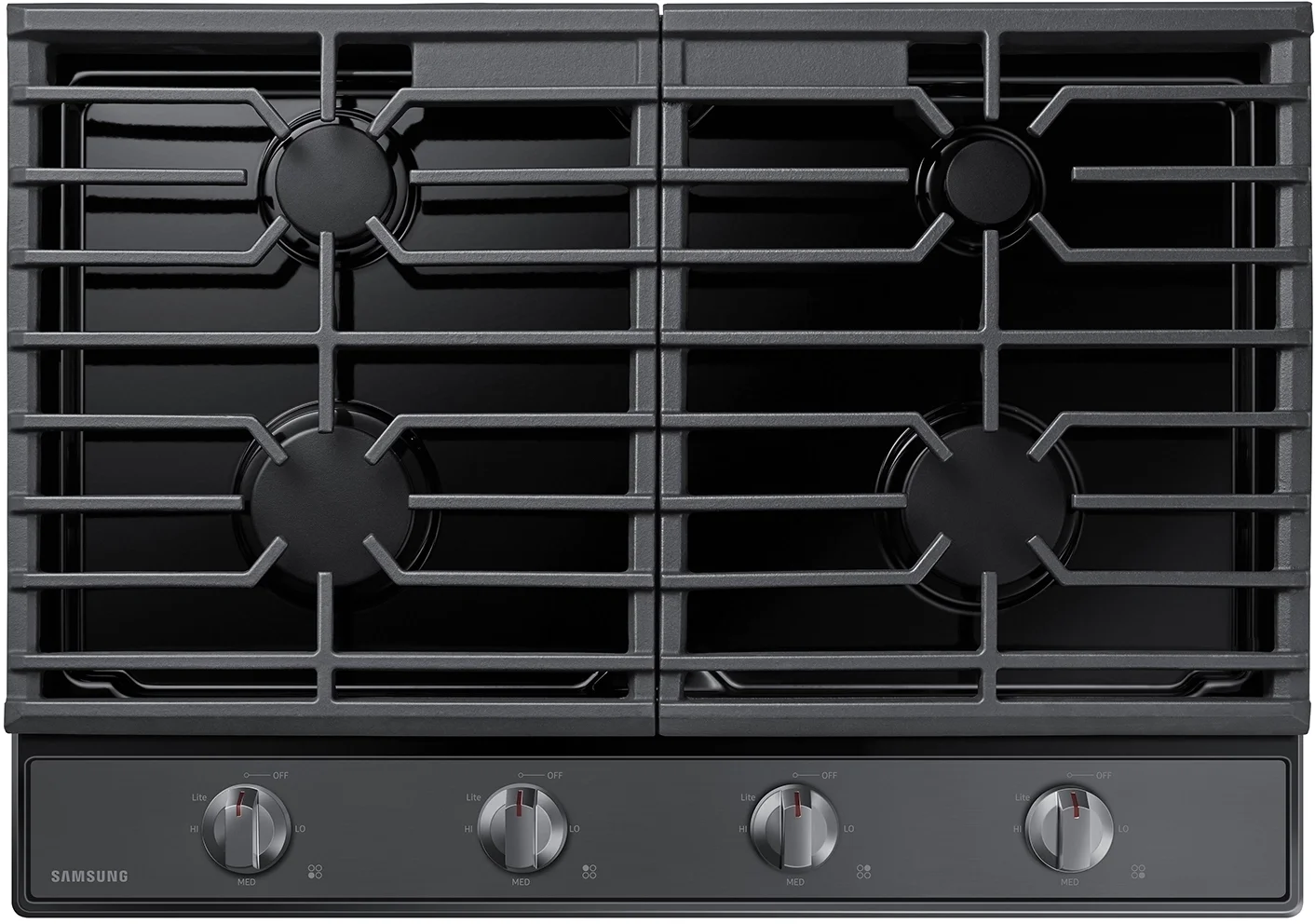

Samsung NA30R5310FG 30 Inch Gas Sealed Burner Cooktop
Model: NA30R5310FG








| Highest Burner Output | 17000 BTU |
|---|---|
| Warranty Terms | 1 Year Parts and Labor |
| Weight | 60.7 lbs. |
| Brand | Samsung |
|---|---|
| UPC | 887276298917 |
| Warranty Info | 1 Year Warranty* One (1) year * Warranty coverage can differ by model/year, please look at the user manual for your unit to check your coverage. Eight (8) years for Magnetron *Varies by model Ten (10) years for Magnetron *Varies by mode |
| Cast Iron Grates | Yes |
|---|---|
| Light | No |
| Sealed Burners | Yes |
| Amps | 15 Amps |
|---|---|
| Volts | 120 Volts |
| Width | 30" |
|---|---|
| Height | 5.8125" |
| Cutout Depth | 19.625" |
| Depth | 21" |
| Exterior Width | 30" |
| Cutout Width | 28.5" |
| Cutout Height | 3.25" |
| Convertible to Liquid Propane | Yes |
|---|---|
| Control Location | Front |
| Gas Type | Natural Gas |
| Sabbath Mode | No |
| Timer | No |
| ADA Compliant | Yes |
|---|
| Back Left Output | 13000 |
|---|---|
| Front Left Output | 10000 |
| Back Right Output | 5000 |
| Front Right Output | 17000 |
| Griddle | No |
|---|---|
| Downdraft Venting | No |
| Color | Black Stainless Steel |
| Control Type | Knobs |
| Reversible Grates | No |
| Installs Over Oven | Yes |
| French Top | No |
| Type | Cooktop |
| Style | Sealed Burner |
| Fuel Type | Gas |
| Grill | No |
| Burners | 4 |
