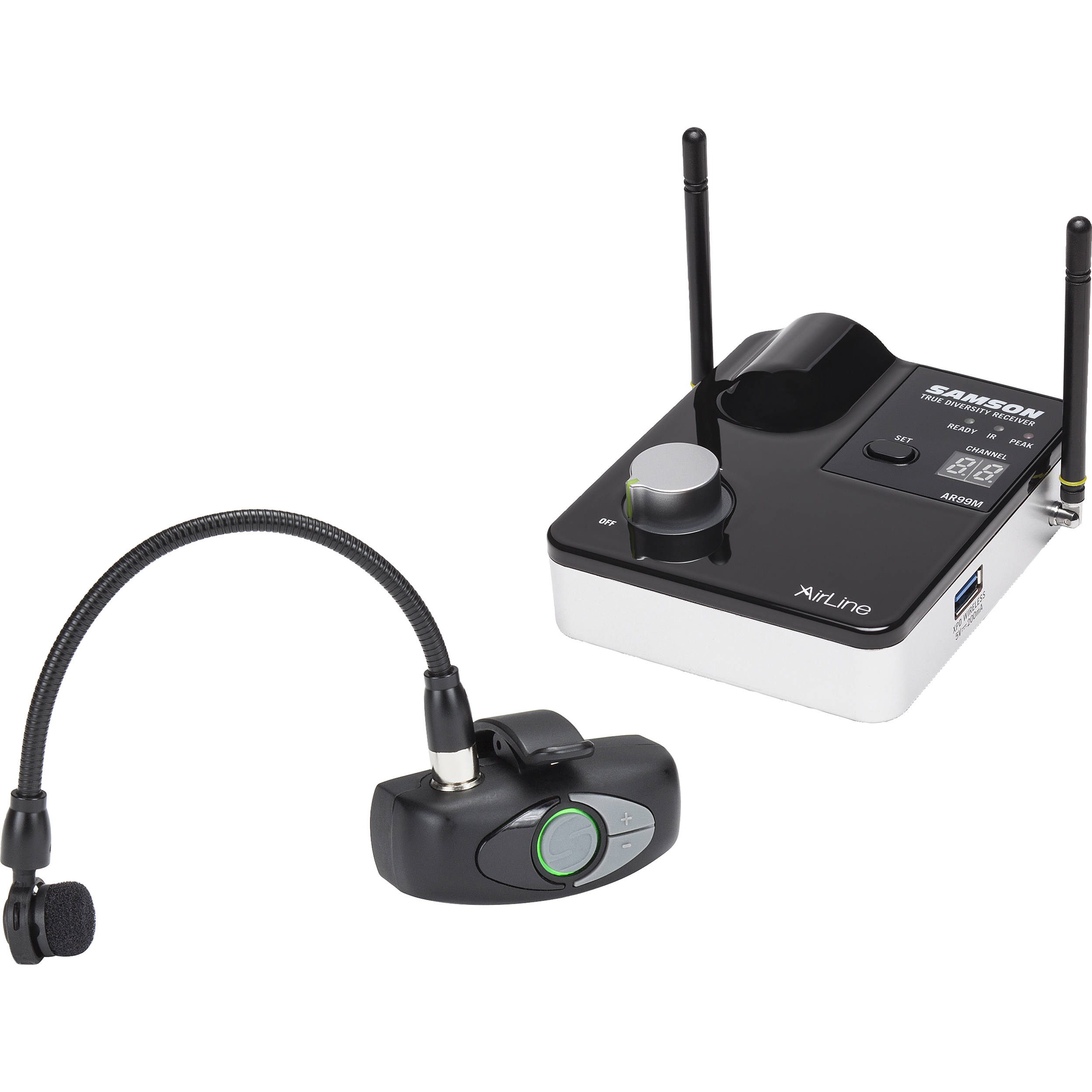

Samson AirLine AWXm Micro UHF Wind Instrument Wireless System (D: 542 to 566 MHz)
Model: SW9A9SHM60-D








| Weight | 2.1 oz / 60.0 g |
|---|---|
| Form Factor | Clip-On with Microphone |
| RF Output Power | Up to 10 mW (10 mW Peak) |
| Audio I/O | None |
| Muting | Mute Switch |
| Gain Range | 20 dB |
| Sync Method | IR |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable (Included, Replaceable) |
| Internal Battery Capacity | 500 mAh |
| Approx. Battery Life | 8 Hours (Rechargeable) |
| USB Port | 1 x Micro-USB (Charging) |
| Display & Indicators | 1 x LED (Battery Status) |
| Housing | ABS |
| Dimensions | 6.7 x 3.9 x 5.9" / 17.0 x 9.9 x 15.0 cm |
| RF Bandwidth | Up to 24 MHz (Region Dependent) |
|---|---|
| Max Systems per Setup | 8 |
| Dynamic Range | >100 dB |
| Encryption | Yes |
| Number of RF Channels | 100 |
| Included Transmitters | 1 x Clip-On with Microphone |
| Diversity | True Diversity |
| RF Frequency Band | D: 542 to 566 MHz |
| Wireless Transmission | Digital UHF |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Housing | ABS |
|---|---|
| Form Factor | Table-Top |
| Mounting Options | Tabletop |
| Antenna | 2 x 1/4 Wave External, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output (Lockable) 1 x 1/4" TS Male Unbalanced Line Output 1 x 1/8" / 3.5 mm TS Male Unbalanced Line Output |
| Audio Output Level | 1/8" / 3.5 mm Output: +14 dBu 1/4" Output: +14 dBu XLR Output: +9 dBu |
| Frequency Response | 50 Hz to 15 kHz |
| USB Port | 1 x USB Type-A |
| Impedance | 1/8" Output: 810 Ohms (Unbalanced) 1/4" Output: 810 Ohms (Unbalanced) XLR Output: 240 Ohms (Balanced) |
| Approximate RF Sensitivity | 100 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | VDC Included |
| Display & Indicators | 1 x LCD (Channel, Peak) |
| Dimensions | 3.4 x 1.5 x 4.3" / 8.6 x 3.8 x 10.9 cm |
| Weight | 0.4 lb / 181.0 g |
| Form Factor | Integrated |
|---|---|
| Sound Field | Mono |
| Polar Pattern | Supercardioid |
| Frequency Range | 20 Hz to 18 kHz |
| Maximum SPL | 125 dB SPL Peak |
| Output Connectors | 1 x TA3/Mini XLR |
