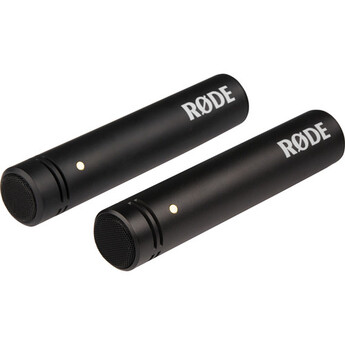

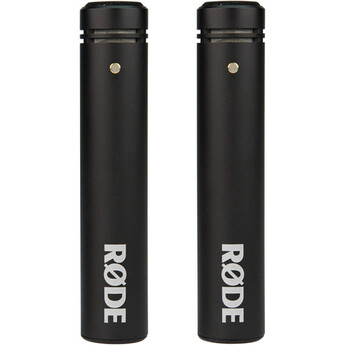

Rode M5 Compact 1/2" Condenser Microphone (Matched Pair)
Model: M5-MP








| Acoustic Principle | Pressure Gradient |
|---|---|
| Active Electronics | JFET impedance converter with bi-polar output buffer |
| Capsule Diameter | 0.50" (12.7 mm) |
| Polar Pattern | Cardioid |
| Address Type | End |
| Frequency Range | 20 Hz to 20 kHz |
| Output Impedance | 200 Ω |
| Maximum SPL | 140 dB SPL (@ 1 kHz, 1% THD into 1 kΩ load) |
| Maximum Output Level | 13.5 dBu (@ 1 kHz, 1% THD into 1 kΩ load) |
| Sensitivity | -34.0 dB re 1 V/Pa (10.46 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz |
| Equivalent Noise Level | 19 dB-A (A-weighted) |
| Phantom Power | 24, 48 V |
| Output | 3-pin XLR |
| Dimensions (HxWxD) | 4 x 1 x 1" (100 x 20 x 20 mm), per microphone |
| Weight | 2.8 oz (80 g), per microphone |
