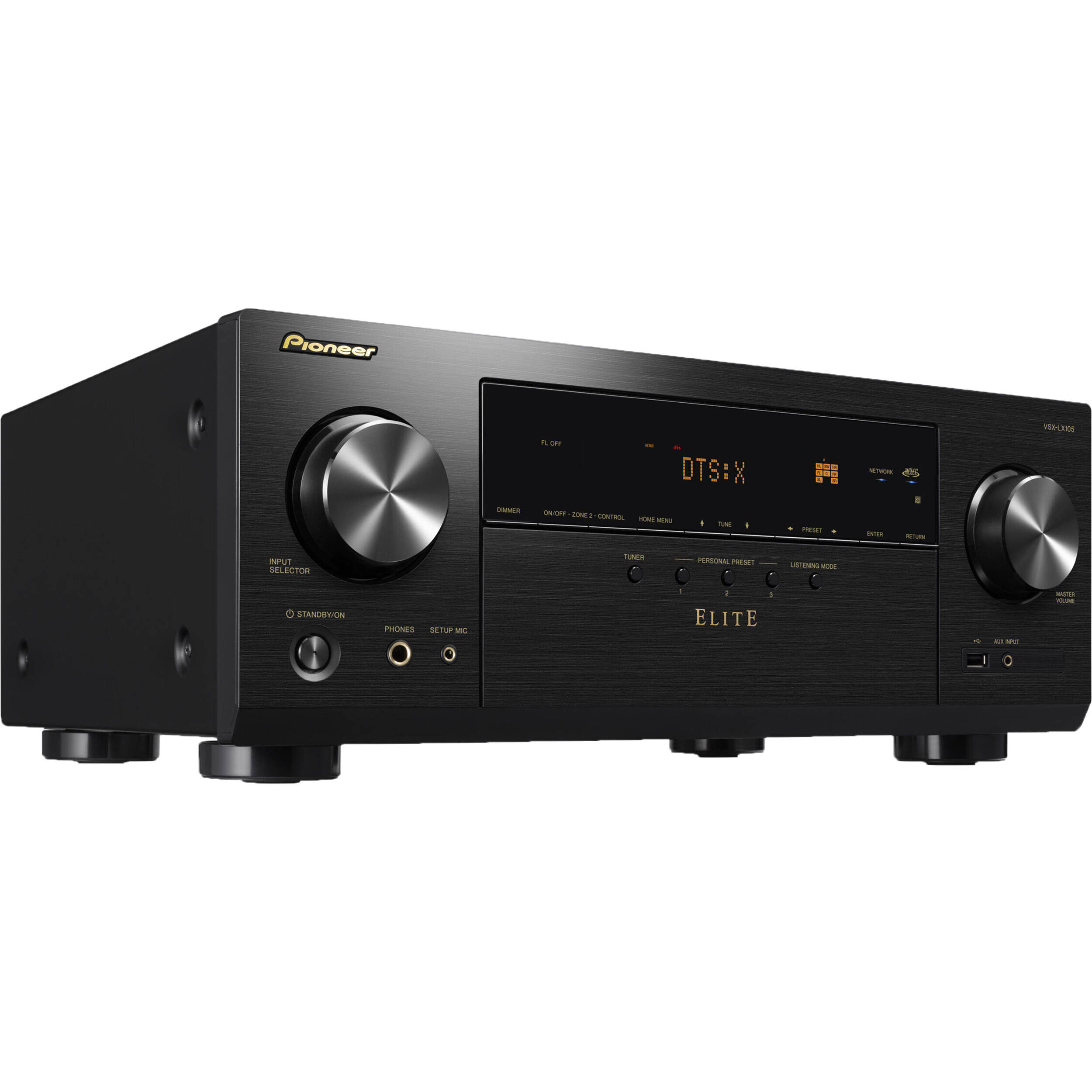

Pioneer Elite VSX-LX105 7.2-Channel Network A/V Receiver

Model: VSXLX105

Pioneer Warranty
Pioneer vsxlx105 1
Pioneer vsxlx105 1
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

Wireless Connectivity

Wireless Audio Protocols AirPlay 2, Chromecast built-in, DTS Play-Fi
Supported Audio Codecs AAC, SBC, aptX, aptX HD
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Video

Upscaling 1080p to 8K UHD
HDR Compatibility HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
GUI Yes

Tuner Section

Number of Tuner Presets 40 Stations
Tuner Type AM, FM

Power

AC Input Power 120 VAC, 60 Hz
Power Consumption Active: 635 W
Standby: 0.1 W

Physical

Weight 21.6 lb / 9.8 kg
Dimensions (W x H x D) 17.1 x 6.8 x 14.6" / 435.0 x 173.0 x 370.5 mm

Packaging Info

Box Dimensions (LxWxH) 21 x 19.4 x 10"
Package Weight 25.625 lb

Control

External Control Support Android/iOS Control App
Virtual Assistant Support Amazon Alexa, Google Assistant

Connectivity

HDMI Compression Modes Not Specified by Manufacturer
Rear A/V Inputs 3 x HDMI 2.1
3 x HDMI
1 x USB Type-A
1 x Digital Coaxial
1 x Optical TOSLINK
4 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs 1 x HDMI
1 x HDMI Zone 2
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 / Zone B Pre-/Line-Out
Front I/O 1 x USB Type-A Input
1 x 1/8" / 3.5 mm Setup Mic Input
1 x 1/8" / 3.5 mm Aux Input
1 x 1/4" / 6.35 mm Headphone Output
Other Rear I/O 1 x RJ45 (Ethernet) Input/Output
1 x DE-9 (RS-232C) Input
1 x 1/8" / 3.5 mm (IR) Input
1 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x FM Coaxial F-Type Input
1 x AM Block Input
Speaker Connectors 9 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround)
HDCP Support Version 2.3
Audio Return Channel (ARC) ARC, eARC
HDMI CEC Yes
Media Card Slot None

Audio Processing

DTS Compatibility DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
DAC 192 kHz / 24-Bit
Supported File Formats 5.6 MHz DSD, AIFF, ALAC, FLAC, WAV via USB
Upmixing Technology Dolby Surround, DTS Neural:X, Dolby Atmos Height Virtualization Technology
Auro 3D Support No
Dolby Compatibility Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD

Amplifier

Power Output per Channel 1-Channel Driven:
210 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven:
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Channels 5.2.2
Product Highlights
  • Up to 100W per Channel at 8 Ohms
  • Up to 8K at 60 Hz or 4K at 120 Hz
  • HDMI 2.1 for Enhanced Gaming
  • 6 x HDMI-In / 2 x HDMI-Out
  • Built-In Streaming Support
  • Zone 2 HDMI Switching
  • Dolby Atmos Height Virtualization
  • DTS Play-Fi Ready
  • MCACC Audio Room Tuning
  • Wi-Fi & Bluetooth
In The Box
  • Pioneer Elite VSX-LX105 7.2-Channel Network A/V Receiver
  • Wired Microphone
  • Remote Control
  • Limited 3-Year Warranty
