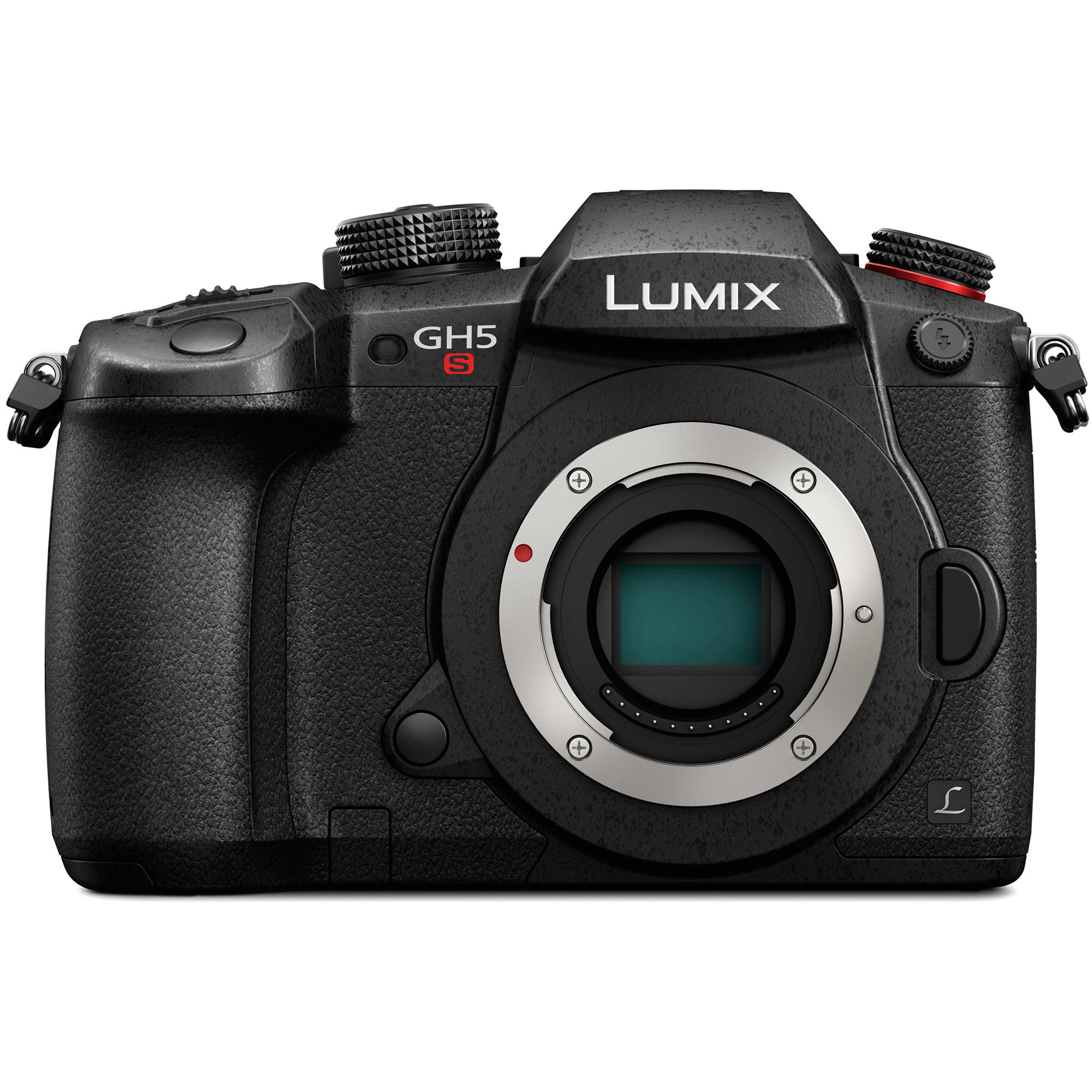

Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera
Model: DC-GH5S








| Viewfinder Pixel Count | 3,686,000 |
|---|---|
| Viewfinder Magnification | Approx. 0.76x |
| Viewfinder Coverage | 100% |
| Viewfinder Eye Point | 21.00 mm |
| Viewfinder Type | Electronic |
| Screen Coverage | 100% |
| Display Screen | 3.2" Rear Touchscreen Swivel Touchscreen LCD (1,620,000) |
| Diopter Adjustment | -4 to +3 m |
| Operating/Storage Temperature | Operating14 to 104°F (-10 to 40°C)Humidity: 10 - 80% |
|---|---|
| Battery | 1 x DMW-BLF19 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh |
| Weight | 1.452 lb / 660 g with battery and memory card |
|---|---|
| Dimensions (W x H x D) | 5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm |
| Connectivity | 1/8" Headphone, 1/8" Microphone, 2.5mm Sub-mini (2-Ring), HDMI A (Full Size), USB 3.0, USB Type-C, Viera Link, X-Sync Socket |
|---|---|
| Self Timer | 10 Seconds, 2 Seconds |
| Interval Recording | Yes |
| Wi-Fi Capable | Yes |
| Pixels | Actual: 11.93 MegapixelEffective: 10.28 Megapixel |
|---|---|
| Max Resolution | 10 MP: 3680 x 2760 |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Camera Format | Micro Four Thirds (2x Crop Factor) |
| Image Stabilization | None |
| Memory Card Type | SDSDHCSDXC |
| Dust Reduction System | Yes |
| Bit Depth | 14-Bit |
| File Formats | Still Images: JPEG, RAWMovies: AVCHD Ver. 2.0, H.264, MOV, MP4, MPEG-4 AVC/H.264Audio: AAC, Dolby Digital 2ch, Linear PCM (Stereo) |
| Sensor Type / Size | MOS, 17.3 x 13 mm |
| Lens Mount | Micro Four Thirds |
| Focus Mode | Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S) |
|---|---|
| Autofocus Points | Contrast Detection: 225 |
| Focus Type | Auto & Manual |
| Flash Compensation | -3 EV to +3 EV (in 1/3 EV steps) |
|---|---|
| Dedicated Flash System | TTL |
| External Flash Connection | Hot Shoe, PC Terminal |
| Flash Modes | AutoAuto/Red-Eye ReductionForced OnForced On/Red-Eye ReductionOffSlow SyncSlow Sync/Red-Eye Reduction |
| Built-in Flash | No |
| Max Sync Speed | 1 / 250 Second |
| Metering Method | Center-Weighted Average Metering, Multiple, Spot Metering |
|---|---|
| White Balance Modes | Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Buffer/Continuous Shooting | Up to 12 fps at 10.3 MP for up to 80 Frames in Raw FormatUp to 11 fps at 10.3 MP for up to 80 Frames in Raw FormatUp to 12 fps at 10.3 MP for up to 600 Frames in JPEG FormatUp to 11 fps at 10.3 MP for up to 600 Frames in JPEG FormatUp to 8 fps at 10.3 MPUp to 7 fps at 10.3 MPUp to 6 fps at 10.3 MPUp to 5 fps at 10.3 MPUp to 2 fps at 10.3 MPUp to 60 fps at 8 MP |
| Remote Control | DMW-RSL1 (Optional) |
| Shutter | Type: Electronic & MechanicalSpeed: 60 - 1/8000 Second Type: Electronic & MechanicalSpeed: 30 - 1 Minute in Bulb Mode1/24 - 1/16000 Second in Movie ModeType: ElectronicSpeed: 1 - 1/16000 Second |
| ISO Sensitivity | Auto, 160-51200 (Extended Mode: 80-204800) |
| Exposure Modes | Modes: Aperture Priority, Manual, Programmed Auto, Shutter PriorityMetering Range: EV 0.0 - EV 18.0Compensation: -5 EV to +5 EV (in 1/3 EV Steps) |
| Video Format | 4096 x 2160p at 23.98, 24, 25, 29.97, 50, 59.94 fps3840 x 2160p at 23.98, 24, 25, 29.97, 50, 59.94 fps3328 x 2496p at 23.98, 24, 25, 29.97, 50, 59.94 fps1920 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94, 120, 240 fps |
|---|---|
| Aspect Ratio | 16:9 |
| Audio Recording | Built-In Mic: With Video (Stereo)Optional External Mic: With Video (Stereo + Mono) |
| Video Recording | Yes, NTSC/PAL |
