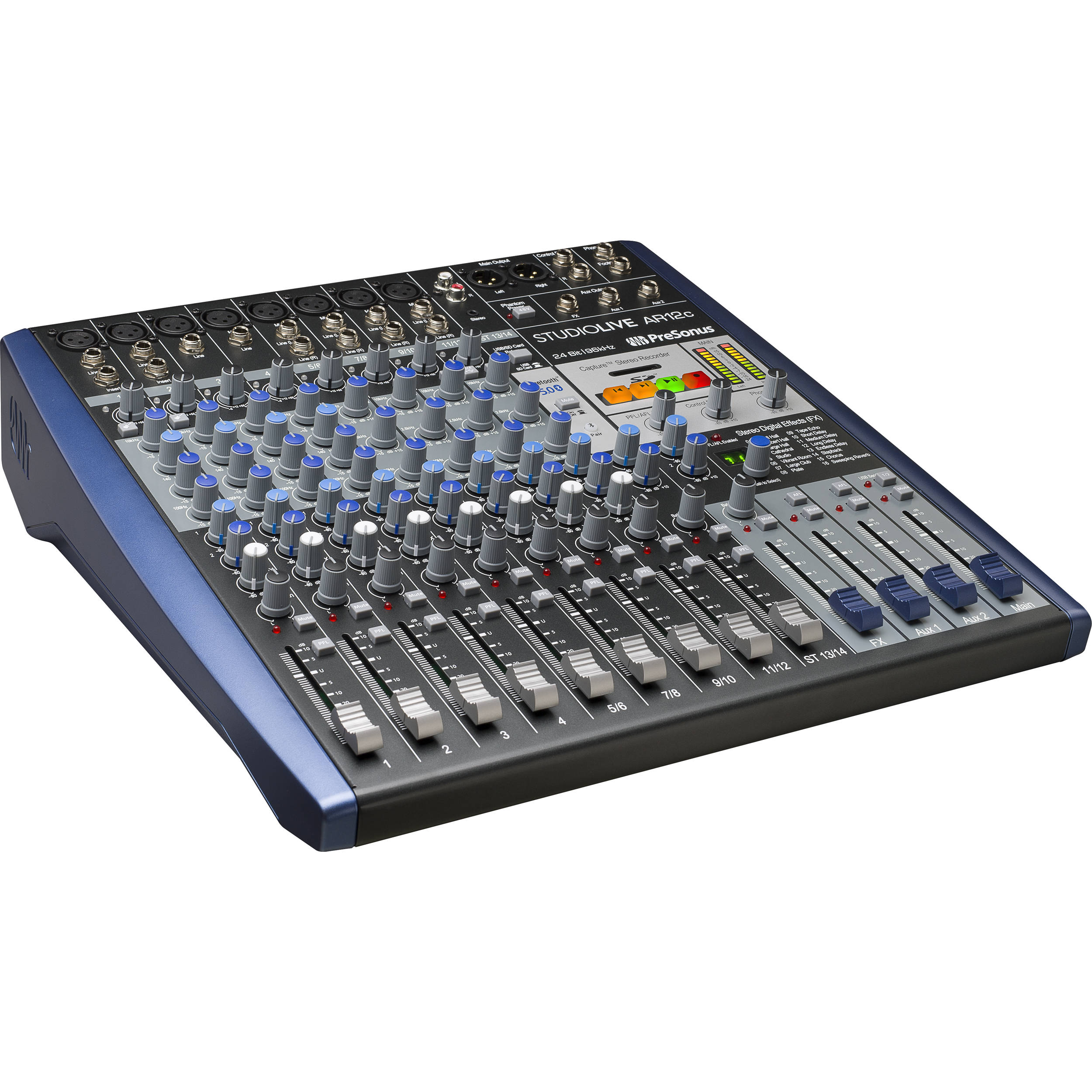

Presonus StudioLive AR12c USB-C 14-Channel Hybrid Performance and Recording Mixer

Name: PRESONUS StudioLive AR12c USB-C 14-Channel Hybrid Performance and Recording Mixer
Brand: PRESONUS
SKU: GT-0362201
Price: 524.99 USD
Availability: BackOrder

Model: SLMAR12C

1/9

4 Mono and 4 Stereo Channels
Stereo Super Channel
14x4 24-Bit / 96 kHz USB Audio Interface
Built-In 2x2 SD Recorder
8 Class-A XMAX Microphone Preamps
Two Instrument Inputs
3-Band EQ & Wireless Bluetooth Streaming
Capture & Studio One Software Included
Studio Magic Plug-In Suite Included

PreSonus StudioLive AR12c USB-C 14-Channel Hybrid Performance and Recording Mixer
Power Cord
USB Cable
Capture Recording Software
Studio One 3 (Artist Production Software)
Studio Magic Plug-In Suite (Download)
Limited 1-Year Warranty

Authorized RetailersManufacturer warranty included

New Products OnlyWe never sell used merchandise

Free ShippingOn most items

30 Days Returns*Minimum return policy

"Name Your Price for Gadgets on New 'Priceline for Tech' Site"View article

Reviewer3707316049

5/5

Best price, easy process.

"I randomly found this site when something for a new bulova watch I wanted, and it was the lowest price I had seen. The checkout was easy. I couldn't ask for better."View article

1ezbuyer

5/5

Great Prices and Great Experience

"I’ve purchased two TVs through Greentoe, and both experiences have been excellent. Best prices I could find anywhere, and both TVs were delivered right to my door without any issues. My only mistake was forgetting that Greentoe offers a lot more than just TVs! I recently purchased applioances elsewhere and afterward realized I should have checked Greentoe first. Greentoe will definitely be one of the first places I check before making a major purchase. Let's get the word out, and let the free market dictate prices. Craig Barton Scottsdale AZ"View article

Specifications

General Information

Outputs	Type (Main Outputs): XLR male, Impedance Balanced Type (Control Room, Monitor, FX Outputs): ¼” / 6.35 mm TRS Female, Balanced Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >108 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01% Output Impedance: 100 Ohms
Computer System Requirements	Mac Mac OS X 10.11 Intel Core 2 Duo Processor (Intel Core i3 or Faster Recommended) Windows Windows 7 x64 SP1 +platform Update, 8.1 x64, 10 x64 Intel Core 2 Duo or AMD Athlon X2 Processor (Intel Core i3 or AMD Athlon X4 or Faster Recommended) Mac and Windows Systems 4 GB RAM (8 GB or More Recommended) 30 GB Hard-Drive Space (Studio One) Internal or External 7200 RPM Storage Drive Highly Recommended Monitor with 1366 x 768 Resolution (High-DPI Monitor Recommended)
Microphone Preamplifier	Type: XLR Female, Class-A Maximum Input Level (Unity Gain): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (Unity to +50 dB) Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/- 1.5 dB S/N Ratio to Outputs (+4 dBu): 94 dB THD+N (Min. Gain, A-Wtd): < 0.01% Input Impedance: 1 Kilohms EIN (+55 dB gain, 150 Ohms input, 20 Hz to 22 kHz, A-Wtd): <128 dBu Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB Phantom Power: +48V, ±3V, Global Note: All Channel Inputs Sum Through Mic Preamp
Instrument Inputs	Type: ¼” / 6.35 mm TS Female, Unbalanced, Hi-Z Maximum Input Level (Min. Gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/-1.5 dB Dynamic Range (Min. Gain, A-Wtd): >105 dB Dynamic Range (Mid. Gain, Unwtd): >100 dB THD+N (1 kHz, -1 dBFS, A-Wtd): <0.01% THD+N (1 kHz, -1 dBFS, Unwtd): <0.01% Input Impedance: >1 Megohms
Line Inputs	Type: ¼” / 6.35 mm TRS Female, Balanced Maximum Input Level (Min. Gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (-20 to +30 dB) Stereo Channel: 50 dB, ±1 dB (-15 to +25 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 10 Hz to 40 kHz, +0.5/-1.5 dB S/N Ratio to Analog Outputs (+4 dBu): 94 dB THD+N (1 kHz, -1 dBFS, A-Wtd): <0.01% Input Impedance (Balanced): 10 Kilohms
Headphone Output	Type: ¼” / 6.35 mm TRS Female, Stereo, Unbalanced Maximum Output Level: 150 mW / Channel at 60 Ohms Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >103 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01%
Crosstalk	Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -85 dBu Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -80 dBu
Signal Level LEDs	Signal: -50 dBFS (pre-EQ) Clip: -3.0 dB Before Clip (Pre EQ or Post EQ)
Graphic Equalizer	Low Cut: 100 Hz, -18 dB/Octave High Shelving: ±15 dB at 12 kHz Mid Peaking (Mono Channels): ±15 dB at 140 Hz to 3.5 kHz (Variable) Mid Peaking (Stereo Channels): ±15 dB at 2.5 kHz Mid-Band Q: Fixed, 0.55 Low Shelving: ±15 dB at 80 Hz
Digital Audio	Host Interface: USB 2.0 ADC Dynamic Range (Component): 114 dB ADC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB DAC Dynamic Range (Component): 114 dB DAC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB Bit Depth: 24-Bit Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz Jitter: <80 ps RMS (20 Hz to 20 kHz) Jitter Attenuation: >60 dB (1 ns in => 1 ps out)
Recorder	SD Recorder Supported Media Format: FAT16 Formatted SD Card, FAT32 Formatted SDHC Card Recording File Format: Stereo WAV Playback File Formats: Stereo WAV, MP3 Sampling Rate (WAV): 44.1 kHz Bit Depth (Recorded WAV): 24-Bit Media Storage Capacity: SD Card: 2 GB SDHC Card: 32 GB
Dimensions (H x W x D)	3.7 x 16.0 x 15.4" / 9.4 x 40.6 x 39.1 cm
Weight	Not specified by manufacturer

4 Mono and 4 Stereo Channels
Stereo Super Channel
14x4 24-Bit / 96 kHz USB Audio Interface
Built-In 2x2 SD Recorder
8 Class-A XMAX Microphone Preamps
Two Instrument Inputs
3-Band EQ & Wireless Bluetooth Streaming
Capture & Studio One Software Included
Studio Magic Plug-In Suite Included

PreSonus StudioLive AR12c USB-C 14-Channel Hybrid Performance and Recording Mixer
Power Cord
USB Cable
Capture Recording Software
Studio One 3 (Artist Production Software)
Studio Magic Plug-In Suite (Download)
Limited 1-Year Warranty

Presonus StudioLive AR12c USB-C 14-Channel Hybrid Performance and Recording Mixer

Model: SLMAR12C

Product Back-Ordered
