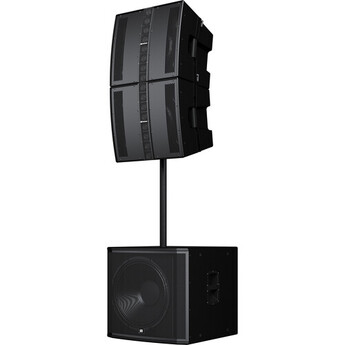

Presonus CDL12P Two-Way 12" 1000W Powered Constant Directivity Sound Reinforcement Loudspeaker (Single)
Model: CDL12 P








| Filters | High-Pass: 90 Hz, 24 dB/Octave Butterworth |
|---|---|
| Dynamic Processing | Compression, HF Limiter, Limiter |
| Alignment Delay | Yes |
| Phase Adjustment | None |
| Max Sample Rate/Resolution | 48 kHz / 24-Bit |
| Crossover | 420 Hz |
| EQ | Yes |
| Parametric EQ | Yes |
| Semi-Parametric EQ | Yes |
| Current Consumption | 4.2 A (1/8 Power) |
|---|---|
| AC Input Power | 90 to 260 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x powerCON Input 1 x powerCON Output |
| Mounting | 1 x 1.4" / 35 mm Pole Socket (Dual Angle) Integrated Rigging |
|---|---|
| Weight | 63 lb / 28.6 kg |
| Dimensions | 18.6 x 20.8 x 17.5" / 472.4 x 528.3 x 444.5 mm |
| Construction Material | Metal Grille, Polypropylene |
| Cooling | Convection |
| Coverage Angle | 120° H x 15° V |
|---|---|
| Maximum SPL | 130 dB |
| Frequency Response | 48 Hz to 18 kHz -3 dB 42 Hz to 19 kHz -10 dB |
| I/O Impedance | Input: 40 Kilohms |
| THD | <0.05% |
| Protections | DC Fault, Overcurrent, Overvoltage, Thermal, Undervoltage |
| Max Input Level | +4 dB |
| Configuration | Active 2-Way |
|---|---|
| Total Power Capacity | 2000 W Peak 1000 W Program 500 W RMS |
| Amplifier Power Rating | LF: 1000 W Peak 500 W Program 250 W RMS HF: 1000 W Peak 500 W Program 250 W RMS |
| Amplifier Class | Class-D |
| HF Driver | 8 x 2" / 50.8 mm Tweeter |
|---|---|
| LF Voice Coil | 2.5" / 63.5 mm |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| MF Driver | None |
| HF Voice Coil | 1" / 25.4 mm |
| USB | None |
|---|---|
| Network I/O | None |
| Audio I/O | 1 x XLR 3-Pin Line Input 1 x XLR 3-Pin Output |
| Wireless Connectivity | None |
