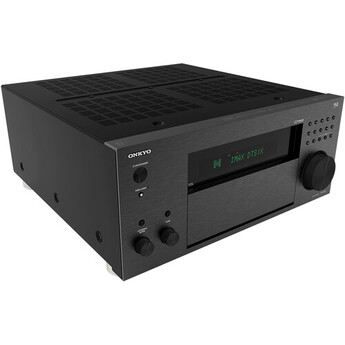

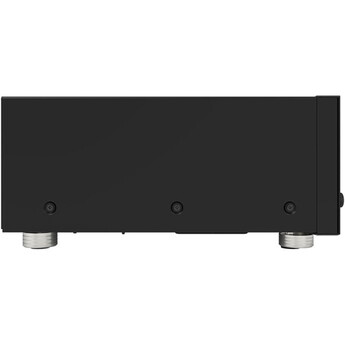

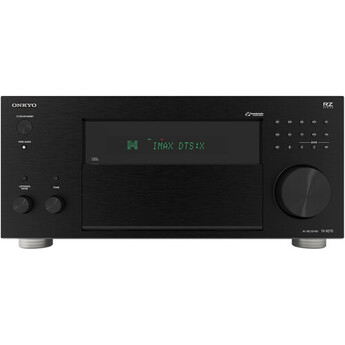

Onkyo TX-RZ70 11.2-Channel Network A/V Receiver
Model: TX-RZ70








| Wireless Audio Protocols | AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready, Spotify Connect |
|---|---|
| Supported Audio Codecs | AAC, aptX, aptX HD, SBC |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| HDR Support | Yes, HDR10+/Dolby Vision |
|---|---|
| Upscaling | No |
| Pass-Through Support | Not Specified by Manufacturer |
| Power Consumption | Maximum: 1095 W |
|---|---|
| Input Power | 120 VAC, 60 Hz |
| Weight | 48.5 lb / 22 kg |
|---|---|
| Dimensions (W x H x D) | 17.1 x 7.9 x 18.9" / 435.0 x 201.0 x 480.0 mm |
| Box Dimensions (LxWxH) | 23.5 x 22.25 x 14" |
|---|---|
| Package Weight | 59 lb |
| Bluetooth | Yes |
|---|---|
| Power Output per Channel | 140 W at 8 Ohms |
| DTS Compatibility | DTS Neural:X, DTS:X, IMAX Enhanced |
| Dolby Compatibility | Dolby Atmos, Dolby Surround |
| HDR Support | Yes, HDR10+/Dolby Vision |
| Pass-Through Support | Not Specified by Manufacturer |
| Upscaling | No |

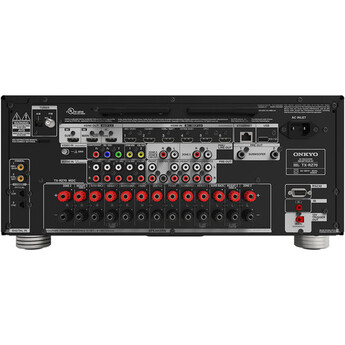

| Rear A/V Inputs | 6x HDMI 2.1 4x Stereo RCA Composite 1x Stereo RCA (Phono) with Ground Screw Composite 2x RCA Composite 1x 3RCA Component 2x Digital Coaxial 2x Optical TOSLINK |

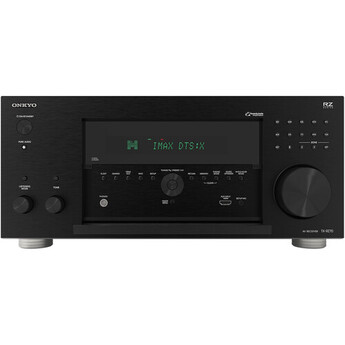

| Front I/O | 1x HDMI Input 1x 1/4" / 6.35 mm Headphone Output 1x 1/8" / 3.5 mm Setup Mic Input |
| Wi-Fi | Yes |
| Channels | 11.2 7.2.4 |
| Virtual Assistant | Apple AirPlay, Works with Alexa, Works with Google Assistant |
|---|---|
| Mobile App Compatible | Yes |
| Speaker I/O | 13x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround) |
|---|---|
| HDCP Support | Yes, Version 2.3 |
| HDMI Compression Modes | Not Specified by Manufacturer |
| Audio Return Channel (ARC) | eARC |
| HDMI CEC | Yes |
| Bi-Amp Capability | Yes |
| Rear A/V Outputs | 3x HDMI 2.1 Zone 2 2x RCA Subwoofer Pre-Out 1x Stereo RCA Composite Zone 3 Pre-/Line-Out 1x Stereo RCA Composite Zone 2 / Zone B Line-Out 3x Stereo RCA Composite Pre-Out 2x Stereo RCA Composite Height Pre-Out 1x RCA Composite Pre-Out |
| Front I/O | 1x HDMI Input 1x 1/4" / 6.35 mm Headphone Output 1x 1/8" / 3.5 mm Setup Mic Input |
| Rear A/V Inputs | 6x HDMI 2.1 4x Stereo RCA Composite 1x Stereo RCA (Phono) with Ground Screw Composite 2x RCA Composite 1x 3RCA Component 2x Digital Coaxial 2x Optical TOSLINK |
| Other Rear I/O | 1x AM Block Input 1x FM Coaxial F-Type Input 1x RJ45 (Ethernet) Input/Output 1x USB-A Input/Output 1x 1/8" / 3.5 mm (12 V Trigger) Output 1x 1/8" / 3.5 mm (IR) Input 1x DE-9 (RS-232C) Input |
| Auro 3D Support | Yes |
|---|---|
| Upmixing Technology | Dolby Surround, DTS Neural:X, Dolby Atmos Height Virtualization Technology |
| Dolby Compatibility | Dolby Atmos, Dolby Surround |
| DTS Compatibility | DTS Neural:X, DTS:X, IMAX Enhanced |
| Speaker Impedance | 4 to 16 Ohms |
|---|---|
| THD+N | 0.08% (20 Hz to 20 kHz) |
| Frequency Response | 10 Hz to 100 kHz +1/-3 dB |
| Power Output per Channel | 140 W at 8 Ohms |
| Amplifier Class | Class-AB |
| Channels | 11.2 7.2.4 |
