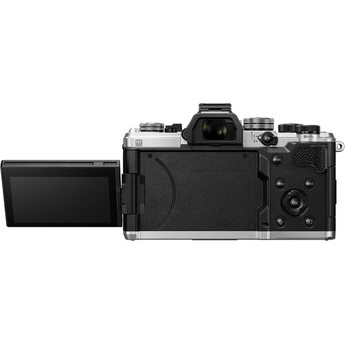

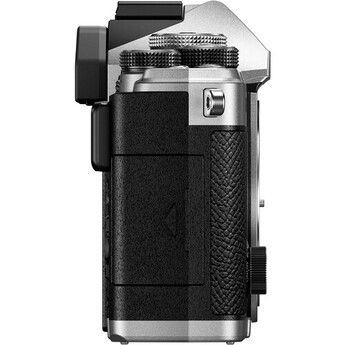

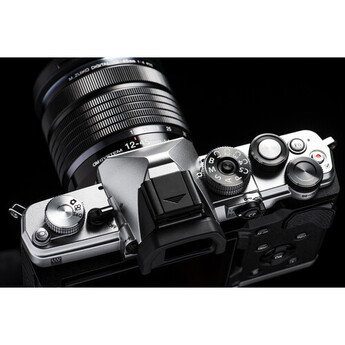

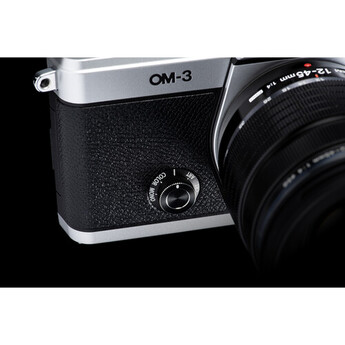

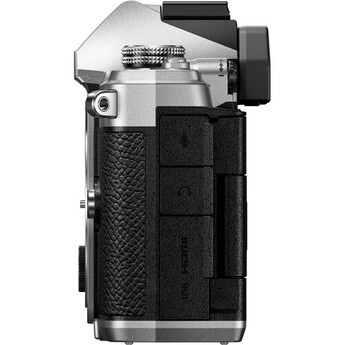

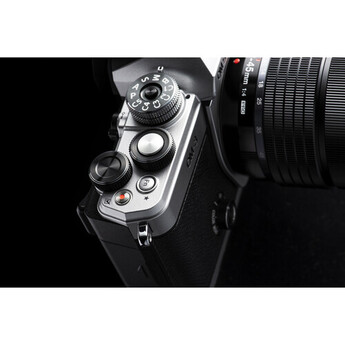

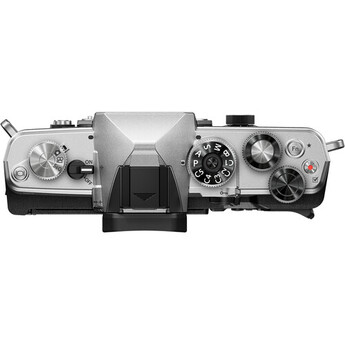

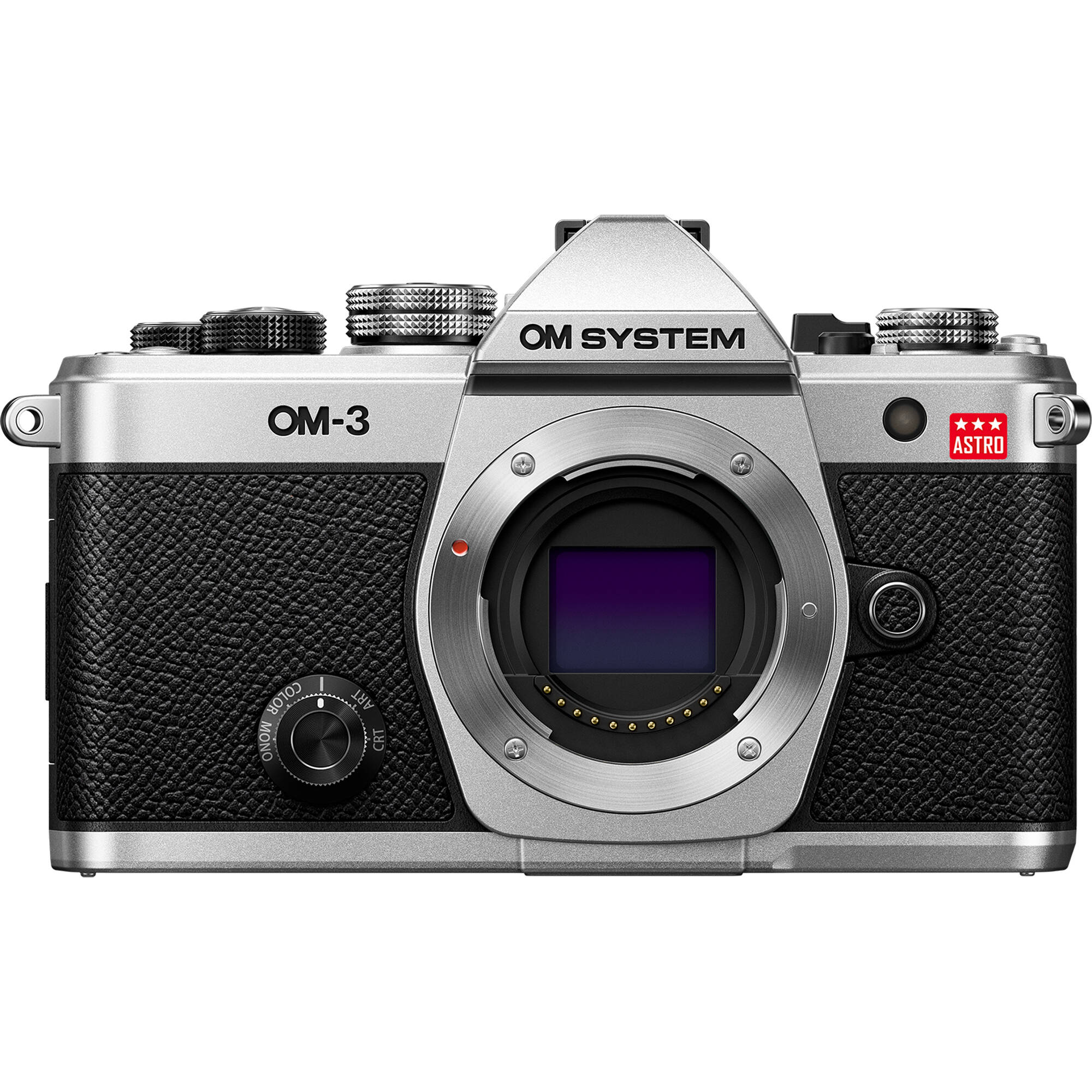

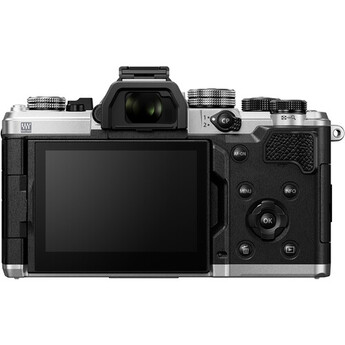

OM SYSTEM OM-3 ASTRO Mirrorless Camera
Model: V7921300U000








| Resolution | 2,360,000 Dot |
|---|---|
| Type | Electronic (OLED) |
| Diopter Adjustment | -4 to +2 |
| Magnification | Approx. 1.23x |
| Coverage | 100% |
| Eye Point | 27 mm |
| IP Streaming | No |
|---|---|
| Recording Limit | 2-Hour Maximum in 4K |
| Gamma Curve | FLAT, HDR-HLG, OM-Log |
| Fast-/Slow-Motion Support | Yes |
| Video Output | 4:2:2/4:2:0 8/10-Bit 4096 x 2160 |
| Internal Recording | H.264/H.264 Long GOP/MOV/MPEG-4 AVC 4:2:0 8-Bit 4096 x 2160 at 24.00/25/30.00/50/60.00 fps (102 to 205 Mb/s) 3840 x 2160 at 24.00/25/30.00/50/60.00 fps (102 to 105 Mb/s) 1920 x 1080 at 24.00/25/30.00/50/60.00 fps (30 Mb/s) H.265/H.265 Long GOP/MOV 4:2:0 10-Bit 4096 x 2160 at 24.00/25/30.00/50/60.00 fps (77 to 155 Mb/s) 3840 x 2160 at 24.00/25/30.00/50/60.00 fps (155 Mb/s) 1920 x 1080 at 24.00/25/30.00/50/60.00 fps (162 Mb/s) |
| Audio Recording | 16-Bit 48 kHz LPCM Audio |
| Built-In Microphone | Stereo |
| Bit Depth | 14-Bit |
|---|---|
| Aspect Ratio | 4:3 |
| Image File Format | JPEG, Raw |
| Package Weight | 2.615 lb |
|---|---|
| Box Dimensions (LxWxH) | 7.6 x 7.4 x 5.7" |
| Resolution | 1,620,000 Dot |
|---|---|

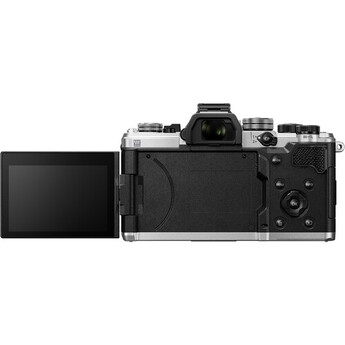

| Display Type | Articulating 3" Touchscreen LCD |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
|---|---|
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Lens Mount | Micro Four Thirds |
| Effective Sensor Resolution | 20.4 Megapixel |
| Image Sensor | Four Thirds |
| Image Stabilization | Sensor-Shift |
| ISO/Gain Sensitivity | Native: 200 to 25,600 |
| Max Recording Modes | H.264/H.264 Long GOP/MOV/MPEG-4 AVC 4:2:0 8-Bit Up to DCI 4K at 24.00/25/30.00/50/60.00 fps H.265/H.265 Long GOP/MOV 4:2:0 10-Bit Up to DCI 4K at 24.00/25/30.00/50/60.00 fps |
| Max Video Output | 4:2:2/4:2:0 8/10-Bit DCI 4K |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C (Data) Output (Shared with Power Input) |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 4.2 |
| Display Type | Articulating 3" Touchscreen LCD |
| Battery | 1x BLX-1 Rechargeable Lithium-Ion (Included) |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
|---|---|
| Internal Storage | No |
| Video I/O | 1x Micro-HDMI Output |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Mobile App Compatible | Yes: Android & iOS App Name: OM Image Share Functionality: Access Stored Files, Remote Control, View Live Feed |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 4.2 |
| Other I/O | 1x USB-C (Data) Output (Shared with Power Input) |
| Power I/O | 1x USB-C Input |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Image Stabilization | Sensor-Shift, 5-Axis |
|---|---|
| Lens Mount | Micro Four Thirds |
| Effective Sensor Resolution | Effective: 20.4 Megapixel Actual: 22.9 Megapixel |
| Image Sensor | 17.4 x 13 mm (Four Thirds) BSI Stacked MOS |
| Capture Type | Stills & Video |
| Built-In ND Filter | No |
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x |
| Dimensions (W x H x D) | 5.5 x 3.5 x 1.8" / 139.3 x 88.9 x 45.8 mm |
|---|---|
| Weight | 0.9 lb / 413 g (Body Only) 1.1 lb / 496 g (With Battery) |
| Shoe Mount | 1x Hot Shoe |
| Battery | 1x BLX-1 Rechargeable Lithium-Ion (Included) |
| Tripod Mount | 1x 1/4"-20 Female |
| Materials | Magnesium Alloy |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 30 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 10 to 90% Humidity |
| Autofocus Points | Phase Detection: 1053 |
|---|---|
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Sensitivity | -5.5 to +19 EV |
| Dedicated Flash System | TTL |
|---|---|
| Non-Shoe Flash Connection | No |
| Built-In Flash/Light | No |
| Flash Modes | Fill In, Flash On, Manual, Off, Slow Sync |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2, 1 EV Steps) |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
|---|---|
| Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
| Metering Range | -2 to 20 EV |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| White Balance | 2000 to 14,000K Presets: AWB, Custom, Flash, Fluorescent, Overcast, Shade, Sunlight, Tungsten, Underwater |
| Self-Timer | 2/12-Second Delay |
| Continuous Shooting | Up to 120 fps at Maximum Resolution |
| Interval Recording | Yes |
| Shutter Speed | Electronic Shutter 1/32000 to 60 Seconds Electronic Front Curtain Shutter 1/320 to 60 Seconds Mechanical Shutter 1/8000 to 60 Seconds |
| Bulb/Time Mode | Bulb Mode |
| ISO/Gain Sensitivity | Native: 200 to 25,600 |
| Metering Method | Center-Weighted Average, Multi-Zone, Spot |
