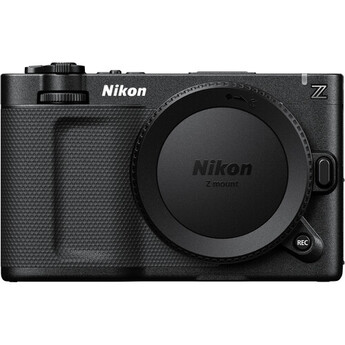

Nikon ZR 6K Cinema Camera
Model: 2006

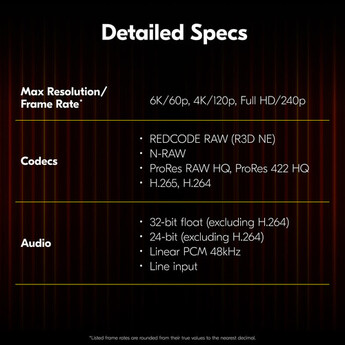

| Internal Recording | ProRes RAW 12-Bit 6048 x 3402 at 23.98/25/29.97 fps 4030 x 2268 at 23.98/25/29.97/50/59.94 fps REDCODE RAW 12-Bit 6048 x 3402 at 23.98/25/29.97/50/59.94 fps [780 to 3780 Mb/s] 4030 x 2268 at 23.98/25/29.97/50/59.94 fps [700 to 1710 Mb/s] UHD 4K (3984 x 2240) at 23.98/25/29.97/50/59.94/100/120 fps H.264 4:2:0 8-Bit 1920 x 1080 at 23.98/25/29.97/50/59.94 fps H.265 4:2:0 8/10-Bit 5376 x 3024 at 23.98/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps ProRes 422 HQ 4:2:2 10-Bit 5376 x 3024 at 23.98/25/29.97 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080 at 50/59.94/100/120 fps |
|---|---|
| IP Streaming | No |
| Audio Recording | ProRes, Raw: 2-Channel, 32-Bit ProRes, Raw: 2-Channel, 24-Bit |
| Built-In Microphone | Stereo |
| Gamma Curve | Nikon N-Log, REDWideGamutRGB |
| Fast-/Slow-Motion Support | Yes |
| Video Output | Micro-HDMI 3840 x 2160 |
| Battery | Nikon EN-EL15c |
|---|
| Package Weight | 2.27 lb |
|---|---|
| Box Dimensions (LxWxH) | 8 x 7 x 5.3" |
| Resolution | Primary Monitor: 3,070,000 Dot |
|---|---|

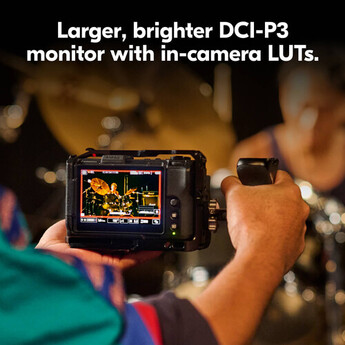

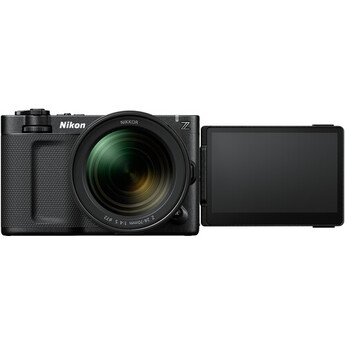

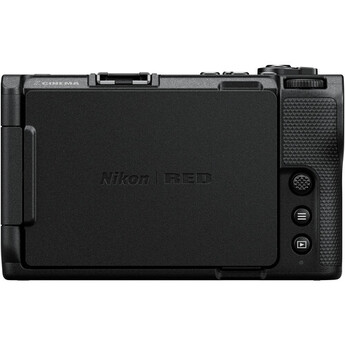

| Display Type | Primary Monitor: Articulating 4" Touchscreen LCD |
| Battery | Nikon EN-EL15c |
|---|---|

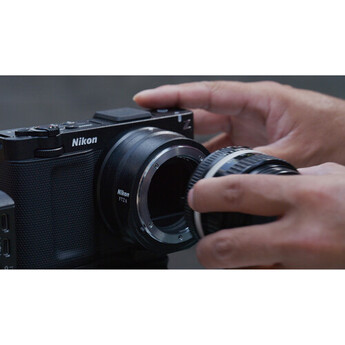

| Lens Mount | Nikon Z |
| Image Sensor | 35.9 x 23.9 mm (Full-Frame) CMOS |
| Sensor Resolution | Effective: 24.5 Megapixel |
| Image Stabilization | Sensor-Shift |
| Internal Recording | ProRes RAW 12-Bit 6048 x 3402 at 23.98/25/29.97 fps 4030 x 2268 at 23.98/25/29.97/50/59.94 fps REDCODE RAW 12-Bit 6048 x 3402 at 23.98/25/29.97/50/59.94 fps [780 to 3780 Mb/s] 4030 x 2268 at 23.98/25/29.97/50/59.94 fps [700 to 1710 Mb/s] UHD 4K (3984 x 2240) at 23.98/25/29.97/50/59.94/100/120 fps H.264 4:2:0 8-Bit 1920 x 1080 at 23.98/25/29.97/50/59.94 fps H.265 4:2:0 8/10-Bit 5376 x 3024 at 23.98/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps ProRes 422 HQ 4:2:2 10-Bit 5376 x 3024 at 23.98/25/29.97 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080 at 50/59.94/100/120 fps |
| ISO/Gain Sensitivity | Dual Base: 800 / 6400 Native: 100 to 64,000 |
| Video Output | Micro-HDMI 3840 x 2160 |

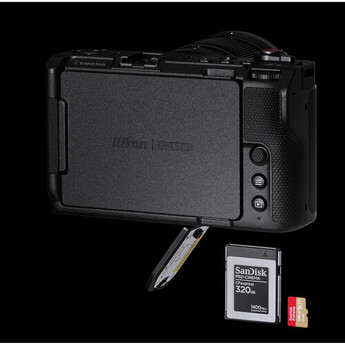

| Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: microSD/microSDHC/microSDXC (UHS-I) |
| Video I/O | 1x Micro-HDMI Output |
| Mobile App Compatible | Yes: Android & iOS |
| Power I/O | 1x USB-C Input |
|---|---|
| Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: microSD/microSDHC/microSDXC (UHS-I) |
| Internal Storage | No |
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input) |
| Wireless | Wi-Fi / Bluetooth |
| Mobile App Compatible | Yes: Android & iOS App Name: SnapBridge |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Capture Type | Stills & Video |
|---|---|
| Internal Filter Holder | No |
| Built-In CC Filter | No |
| Built-In ND Filter | No |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Image Sensor | 35.9 x 23.9 mm (Full-Frame) CMOS |
| Lens Communication | Yes: with Autofocus Support |
| Lens Mount | Nikon Z |
| Sensor Resolution | Effective: 24.5 Megapixel |

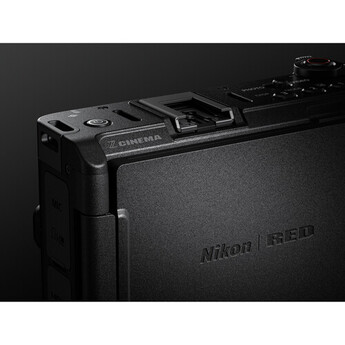

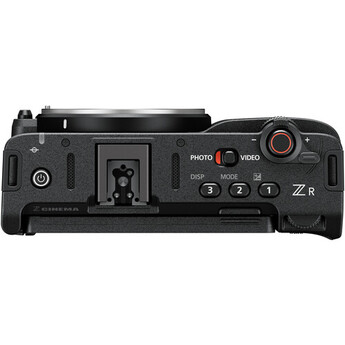

| Shoe Mount | 1x Intelligent Hot Shoe |
|---|---|
| Weight | 1.19 lb / 540 g (Body Only) |
| Tripod Mount | 1x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread | No |
| Dimensions (W x H x D) | 5.2 x 3.2 x 1.9" / 133 x 80.5 x 48.7 mm |
| Focus Mode | Automatic, Continuous-Servo AF, Full-Time Servo, Manual Focus |
|---|
| Shutter Speed | Electronic Shutter 1/16000 to 900 Seconds |
|---|---|
| Shutter Angle | 5.6 to 360° |
| ISO/Gain Sensitivity | Dual Base: 800 / 6400 Native: 100 to 64,000 |
| Signal-to-Noise Ratio | Not Specified by Manufacturer |

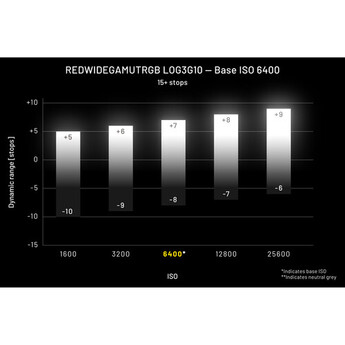

| Advertised Dynamic Range | 15 Stops |
| White Balance | Range: 2500 to 10,000K Presets: Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade |
| Exposure Modes | Auto, Manual |
| Shutter Type | Electronic Rolling Shutter |
