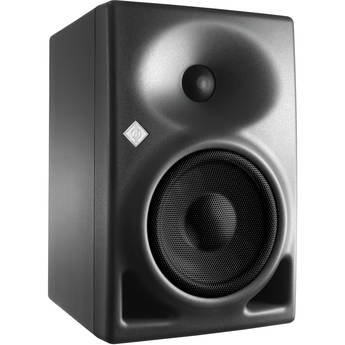

Neumann KH 120 D Studio Monitor with Digital I/O and Digital Delay
Model: KH 120 D
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Packaging Info
Package Weight | 19.2 lb |
Box Dimensions (LxWxH) | 16.299 x 14.173 x 11.181" |
Mechanical
Volume | Internal: 6.5 litersExternal: 9.7 liters |
Mounting | 2x M8 on rear panel |
Drivers | Magnetically ShieldedWoofer: 5.25" (130 mm)Tweeter: 1.00" (25.0 mm) |
Operating Conditions | +50 to +104° F (+10 to +40° C) |
Weight | 14.3 lb (6.50 kg) |
Cabinet | Painted aluminum, anthracite (RAL 7021)Powder-coated aluminum, white (RAL 9016) |
Dimensions (H x W x D) | 10.875 x 7.125 x 8.625 (277.0 x 182.0 x 220.0 mm) |
Electronics
Input Gain Control | 0 to -15 dB |
Output Level Control | 94, 100, 108, 114 dB |
CMRR | >56 dB at 15,000 Hz |
Maximum Input Level | 24 dBu |
Indicators | Power On: Neumann logo "white"Limit/Clip: Neumann logo "red"Digital Error: flash "red" |
Power Supply | 100 to 240 V; 50/60 Hz |
Power Consumption | Idle: 20 WFull Output AC: 200 W |
Amplifier | Woofer: 50 W (80 W peak)Tweeter: 50 W (80 W peak) |
Controller Design | Analog, active |
Crossover Frequency | 2,000 Hz |
Crossover Slope | 24 dB/octave, 4th order |
Equalization | Bass: 0, -2.5, -5. -7.5 dBMid: 0, -1.5, -3, -4.5 dBHigh: +1, 0, -1, -2 dB |
Protection Circuits | Limiter, low, high |
Infrasonic filter protection | 30 Hz; 6 dB/octave |
Impedance | 10 k Ohms in position 94/108 dB SPL at 1 m20 k Ohms in position 100/114 dB SPL at 1 m |
Digital Audio I/O
Sampling Rate | 32 to 192 kHz |
Sensitivity | -18 dBFS |
Dynamic Range | 120 dB |
Delay | Audio-Video: 0 to 409.5 msTime-of-Flight: 0 to 409.5 ms Audio-Video/Lip Sync Max Frames: 0 to 10.2 (40 ms) frames, 0 to 12.3 (33 ms) frames |
Time | Resolution: 0.1 ms / 3.4 cm (1.375") |
Resolution | 16 to 24-bit DAC, Δ∑ |
Input Switching | Analog, Digital A, Digital B, Digital A+B (all available with and without delay) |
Impedance | 75 Ohms (input/output) |
BNC Connectors | AES3S/P-DIF |
Acoustics
Frequency Response | Free Field: 52 to 21,000 Hz ±3 dBPass Band Free Field: 54 to 20,000 Hz ±2 dB |
Bass Capability | 104.8 dB (Averaged between 50 and 100 Hz at Max SPL in half space at 3% THD at 1 m) |
Max SPL Level | Full Space: 105.1 dB Half Space at 3% THD at 1 M: 111.1 dB Short Term SPL with IEC-Weighted Noise: 107 dB(C) With Music Material at 2.3 m (pair): 97 dB(C) (full range), 104 dB(C) (with subwoofer) Long Term SPL with Pink Noise at 2.3 M, In Typical Listening Conditions (single/pair): 88/93 dB(C) SPL (full range, 89/94 dB(C) SPL (with subwoofer) |
Total Harmonic Distortion (THD) | > 100 Hz ( |
Self Noise |
The Neumann KH 120 powered studio monitor represents the marriage between the impressive build standards of Neumann and the pristine audio quality of Klein + Hummel. The KH 120 features a Mathematically Modeled Dispersion (MMD) waveguide, resulting in a wide sweet spot no matter where you sit in the...
Pound for pound, the best 5" active monitors available (IMO). Very neutral sounding with little coloration. They are designed for monitoring but I enjoy listening for pleasure as well.
-
+
Excellent imaging, flat frequency response
-
-
Industrial looking, fairly expensive, subwoofer is very expensive
Neumann has been setting standards in front-end transducer technology for 83 years, as well as producing phonograph record-cutting lathes, mixing desks and even rechargeable batteries.
I have been using a pair of these monitors along with a Neumann KH 805 subwoofer for several months now. They are very good. They will play quite loud for their size. I consider them to be a bargain at this price. They integrate well with the sub. The transition to the sub is audibly seamless.
I recently did an upgrade and replaced my Digidesign 192 with an HD Omni and decided to upgrade to the KH-120s as well. The difference in my mixes was night and day. After configuring the Omni (PITA!) and playing back a finished mix I was blown away.
Money well spent. I have Focal 50's Dynaudio BM15A's and just added The Neumann kh120's they translate your mixes so well and they are beatiful sounding on all levels. Highly recommended.
I can't believe the big sound they deliver for the size. I use these along my PMC mastering monitors and my DynAudio bm6a. They fill in the gap for sure. Love em!
Wonderfully accurate and loud (when required) monitors.
- 5.25" Composite Sandwich Woofer Cone
- 1" Titanium Dome Tweeter
- Digital BNC Input and Buffered Ouput
- Lipsync and Time-of-Flight Delay
- 160 W Peak Analog Class-AB Amplifier
- Elliptical Modeled Dispersion Waveguide
- Wide Horizontal Dispersion
- Narrow Vertical Dispersion
- 4-Position Bass, Low-Mid, Treble Control
- New Mounting Hardware Options
- Neumann KH 120 D Studio Monitor with Digital I/O and Digital Delay
- Power Cable (European and US Version)
- Limited 1-Year Warranty
