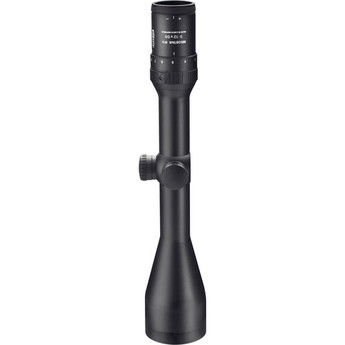

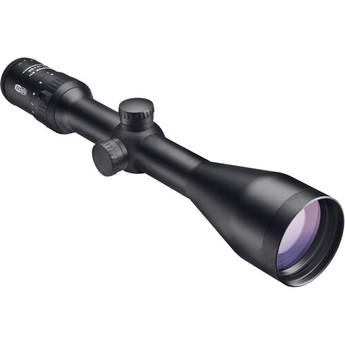

Meopta 3-12x56 MeoStar R1r RD MR Riflescope (BDC-2 Illuminated Reticle)
Model: 580131

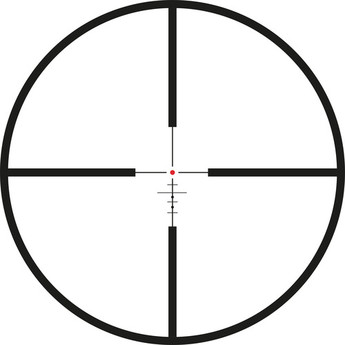

| Reticle Type | BDC-2 Reticle (Second Focal Plane) |
|---|---|
| Illumination | Partially Illuminated |
| Illumination Type | LED |
| Illuminated Color | Red |
| Brightness Settings | Adjustable Brightness (7 Levels) |
| Magnification | 3 to 12x |
|---|---|
| Diopter Correction | -3.0 to +3.0 |
| Objective Lens Diameter | 56 mm |
| Field of View | 3x: 33.1' @ 100 yd / 11 m @ 100 m 12x: 10.2' @ 100 yd / 3.4 m @ 100 m |
| Exit Pupil Diameter | 3x: 14.8 mm 12x: 4.6 mm |
| Eye Relief | 3.5 to 3.1" / 9 to 8 cm |
| Weight | 22.9 oz / 650 g |
|---|---|
| Maintube Diameter | 30 mm |
| Battery | 1 x CR2354 |
| Material | Aluminum |
| Dimensions | Length: 13.3" / 33.8 cm |
| Impact Point Correction | 1/4 MOA per Click |
|---|---|
| Elevation Adjustment | 50 MOA |
| Parallax Correction | No |
| Filter Thread | M59 x 0.75 |
| Windage Adjustment | 50 MOA |
| Fogproof | Yes, Nitrogen Filled |
|---|---|
| Water Resistance | Waterproof |
