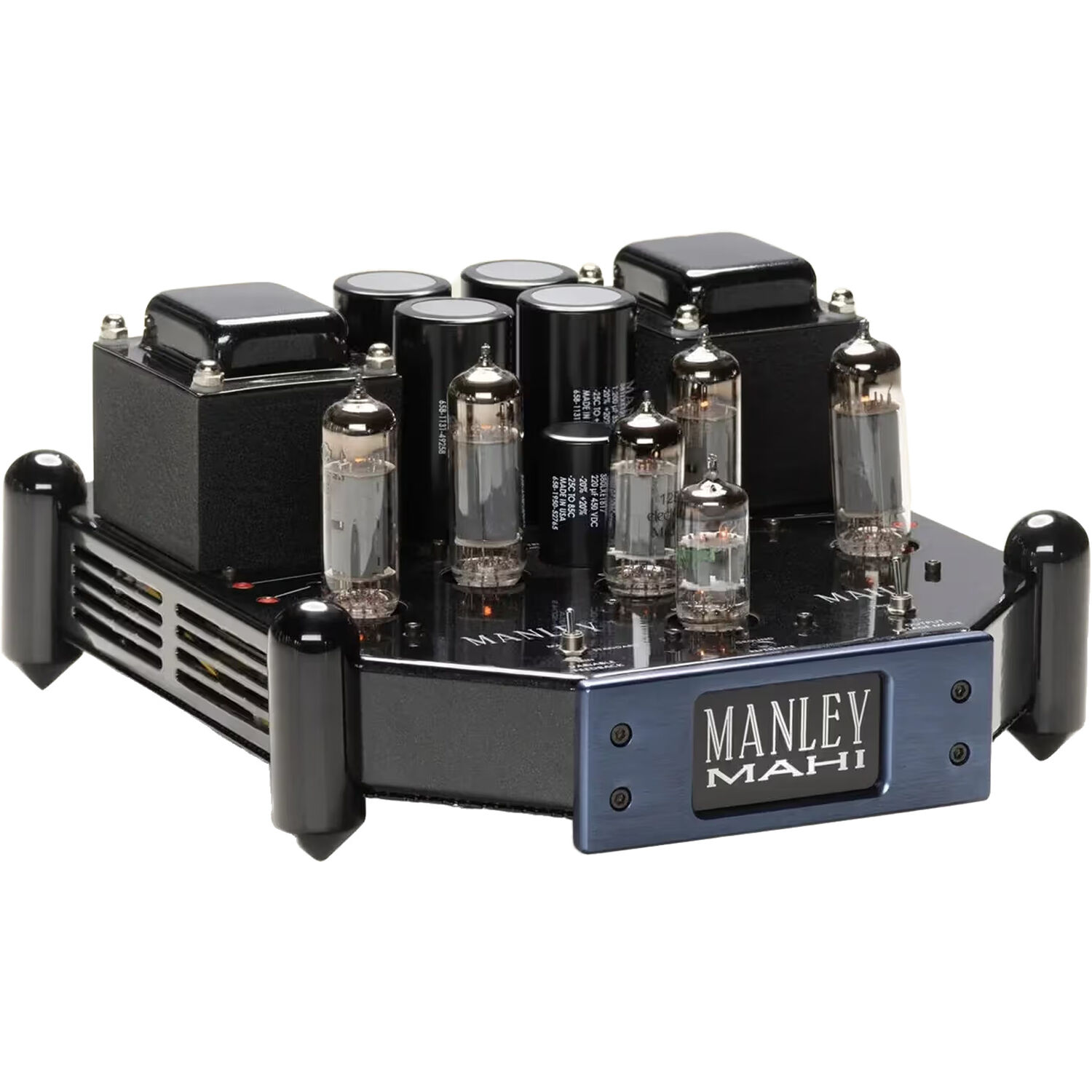

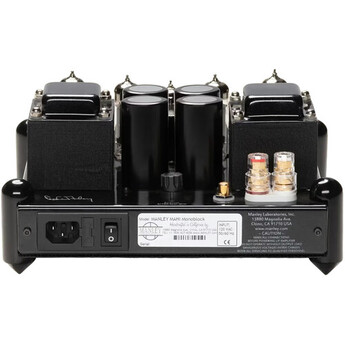

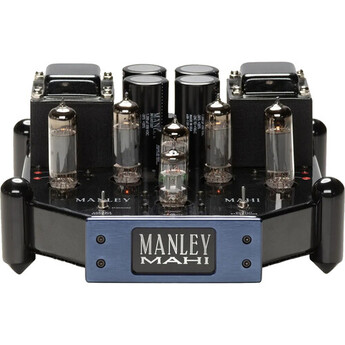

Manley labs Mahi Monoblock Tube Power Amplifier
Model: MAHI 120V








| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Power Consumption | Active: 168 W No Sound: 102 W |
|---|---|
| Input Power | 120 VAC, 60 Hz |
| Dimensions (W x H x D) | 12.0 x 5.0 x 10.0" / 30.5 x 12.7 x 25.4 cm |
|---|
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Channels | Object-Based Configuration: 1.0 |
| Rear A/V Outputs | No |
| Speaker I/O | 1x Gold-Plated Binding Post Pair |
| Power Output per Channel | 1-Channel Driven: 40 W at 8 Ohms 24 W at 8 Ohms |
| External Control Support | No |
|---|---|
| Mobile App Compatible | No |
| Rear A/V Inputs | 1x RCA Line |
|---|---|
| Rear A/V Outputs | No |
| Front I/O | No |
| Speaker I/O | 1x Gold-Plated Binding Post Pair |
| Media Card Slot | No |
| A/B Speaker Selection | No |
| Bi-Amp Capability | No |
| Input Impedance | 110 Kilohms |
| Dynamic Range | Line: 83 dB |
| Signal to Noise Ratio | 82 dB (1 W Output / 20 Hz to 20 kHz / A-Weighted) |
| Auro 3D Support | No |
|---|---|
| Supported Sample Rates | No |
| Tone Control | No |
|---|---|
| Amplifier Type | Power Amplifier |
| Amplifier Class | Class-AB |
| Channels | Object-Based Configuration: 1.0 |
| Speaker Impedance | Not Specified by Manufacturer |
| THD | 1.5% (1 kHz, Full Power) |
| Frequency Response | 20 Hz to 20 kHz |
| THD+N | < 0.15% |
| Power Output per Channel | 1-Channel Driven: 40 W at 8 Ohms 24 W at 8 Ohms |
