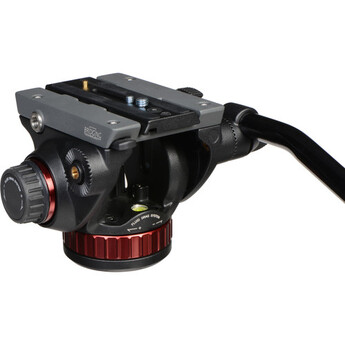

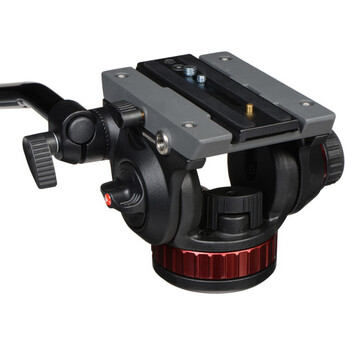

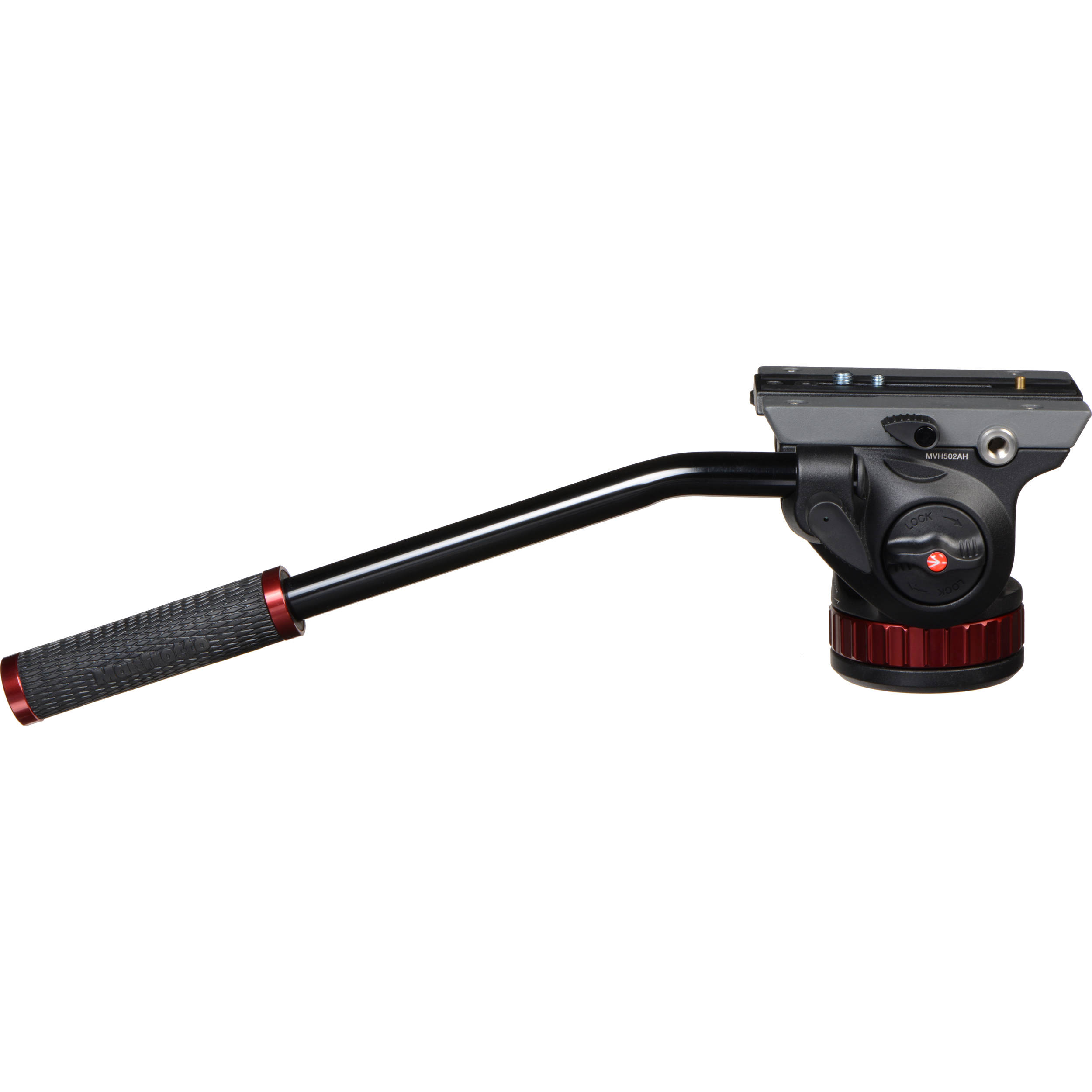

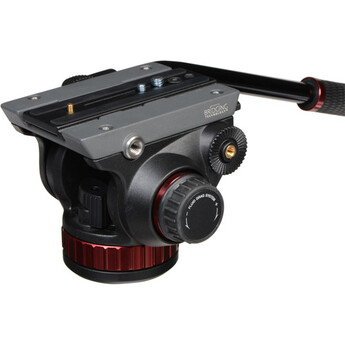

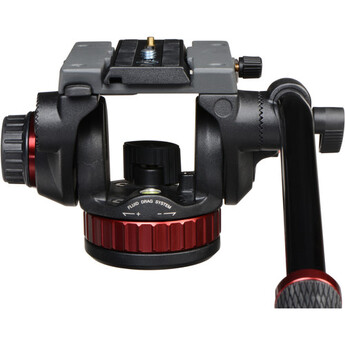

Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection)
Model: MVH502AH








| Load Capacity | 12.2 lb static (5.5 kg) Counterbalance supports 8.8 lb (4 kg) |
|---|---|
| Head to Tripod Mounting Thread | 3/8"-16 thread |
| Counter Balance System | Spring-loaded |
| Counter Balance Range | One fixed spring for 8.8 lb (4 kg) camera weight |
| Center of Gravity | Not specified by manufacturer |
| Quick Release/Wedge Plate | 504PLONG plate with 1/4"-20 & 3/8"-16 screws |
| Balance Plate | 504PLONG plate slides 3.27" (83.0 mm) |
| Tilt Drag | Continuously adjustable from 0 to max level |
| Tilt Range | -80° to +90° tilt range front to back |
| Tilt Lock | Yes |
| Spring Loaded Counter Balance | Yes |
| Pan Drag | Continuously adjustable from 0 to max level |
| Pan Range | 360° |
| Pan Lock | Yes |
| Pan Bar | 1 included 2 possible positions |
| Leveling Bubble/Illuminated | Yes/not specified by manufacturer |
| Material | Aluminum |
| Color | Black |
| Temperature Range | -4 to 104 °F (-20 to 40 °C) |
| Height | 5.12 in (13.0 cm) |
| Weight | 3.53 lb (1.6 kg) |
