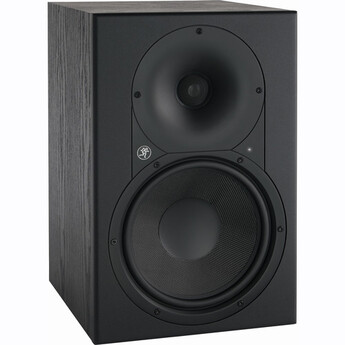

Mackie XR824 - 160W 8" Two-Way Active Professional Studio Monitor (Single)

Name: MACKIE XR824 - 160W 8" Two-Way Active Professional Studio Monitor (Single)
Brand: MACKIE
SKU: GT-0213332

Model #2047122-00

MACKIE Warranty

How it works

You name the price you want to pay for a product.
We send your offer to a network of Certified Retailers.
If the retailer likes your offer, you get that price for the product.

Greentoe Guarantee

Guaranteed Brand New Products
All Products Sold by Manufacturer Authorized Retailers
30 Day Return Policy
Free Shipping
No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Specifications

Specifications

Transducers

Low Frequency Driver	8" (203 mm) Kevlar woofer
High Frequency Driver	1" (25 mm) black anodized aluminum tweeter

Power Requirements

Voltage Selector Switch	Yes
AC Connector	3-pin IEC 250 VAC, 16 a male 100 to 120 VAC, 50 to 60 Hz, 150W 220 to 240 VAC, 50 to 60 Hz, 150 W
On/Off Control	Auto On/Off Standby Mode: <0.5 W
Fuse	115 VAC: T 2.5 AL, 250 V 230 VAC: T 1.25 AL, 250V

Physical Dimensions

Dimensions (H x W x D)	16.8 x 10.8 x 13.8" (427 x 274 x 351 mm)
Weight	36.4 lb (15.7 kg)
Finish	Black, wood grain vinyl and black paint
Damping	Open cell adiabatic "foam fill" acoustic batting
Enclosure	All-wood MDF construction and internal cabinet bracing

Packaging Info

Package Weight	22.0 lb
Box Dimensions (LxWxH)	19.0 x 14.5 x 13.5"

Input

Input Type	Balanced differential XLR and 1/4" TRS (6.3 mm)
Input Impedance	20 kOhms balanced bridging 10 kOhms unbalanced
Input Protection	RFI and level protected
Maximum Input Level	+20 dBu

Equalization

Low Frequency EQ	-3 dB @ 36 Hz -3 dB @ 80 Hz
Acoustic Space Filter	Whole: Flat Half: -2 dB @ 100 Hz Quarter: -4 dB @ 100 Hz
High Frequency EQ	±2 dB @ 10 kHz, shelving

Crossover

Crossover Frequency	2.2 kHz
Type	Linkwitz-Riley, 24 dB/octave

Amplifier Specifications

Power	Low Frequency: 100 W High Frequency: 60 W
Type	Class D power amplifier

Acoustic Specifications

Sound Pressure Level	+4 dBu into Balanced Input @ 3.3' / 1 m: 109 dB SPL @ 3.3' / 1 m
Maximum SPL	Per Pair: 115 dB SPL @ 3.3' / 1 m
Frequency Response	36 Hz to 22 kHz (-3 dB)

Product Highlights

8" Kevlar Woofer
1" Black Anodized Aluminum Tweeter
160W Bi-Amplified Class-D Amplifier
Logarithmic Waveguide
36 Hz to 22 kHz Frequency Response
LF and HF Filters
XLR and TRS Input Connectors
Includes Power Cable

In The Box

Mackie XR824 - 160W 8" Two-Way Active Professional Studio Monitor (Single)
AC Power Cord
Limited 1-Year Warranty
