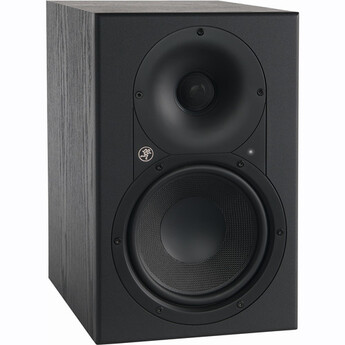

Mackie XR624 - 160W 6.5" Two-Way Active Professional Studio Monitor (Single)
Model #2047121-00
MACKIE Warranty


- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Product Back-Ordered
We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.
Thank you! We will be in touch.
Something went wrong. Please try again later.
Specifications
Transducers
Low Frequency Driver | 6.5" (165 mm) Kevlar woofer |
High Frequency Driver | 1" (25 mm) black anodized aluminum tweeter |
Power Requirements
Voltage Selector Switch | Yes |
AC Connector | 3-pin IEC 250 VAC, 16 a male 100 to 120 VAC, 50 to 60 Hz, 150W 220 to 240 VAC, 50 to 60 Hz, 150 W |
On/Off Control | Auto On/Off Standby Mode: <0.5 W |
Fuse | 115 VAC: T 2.5 AL, 250 V 230 VAC: T 1.25 AL, 250 V |
Physical Dimensions
Dimensions (H x W x D) | 13.1 x 8.6 x 12.6" (333 x 218 x 320 mm) |
Weight | 23.4 lb (10.6 kg) |
Finish | Black, wood grain vinyl and black paint |
Damping | Open cell adiabatic "foam fill" acoustic batting |
Enclosure | All-wood MDF construction and internal cabinet bracing |
Packaging Info
Package Weight | 17.5 lb |
Box Dimensions (LxWxH) | 16.0 x 14.0 x 11.5" |
Input
Input Type | Balanced differential XLR and 1/4" TRS (6.3 mm) |
Input Impedance | 20 kOhms balanced bridging 10 kOhms unbalanced |
Input Protection | RFI and level protected |
Maximum Input Level | +20 dBu |
Equalization
Low Frequency EQ | -3 dB @ 45 Hz -3 dB @ 80 Hz |
Acoustic Space Filter | Whole: Flat Half: -2 dB @ 100 Hz Quarter: -4 dB @ 100 Hz |
High Frequency EQ | ±2 dB @ 10 kHz, shelving |
Crossover
Crossover Frequency | 2.7 kHz |
Type | Linkwitz-Riley, 24 dB/octave |
Amplifier Specifications
Power | Low Frequency: 100 W High Frequency: 60 W |
Type | Class D power amplifier |
Acoustic Specifications
Sound Pressure Level | +4 dBu into Balanced Input @ 3.3' / 1 m: 107 dB SPL @ 3.3' / 1 m |
Maximum SPL | Per Pair: 113 dB SPL @ 3.3' / 1 m |
Frequency Response | 45 Hz to 22 kHz (-3 dB) |
- 6.5" Kevlar Woofer
- 1" Black Anodized Aluminum Tweeter
- 160W Bi-Amplified Class-D Amplifier
- Logarithmic Waveguide
- 45 Hz to 22 kHz Frequency Response
- LF and HF Filters
- XLR and TRS Input Connectors
- Includes Power Cable
- Mackie XR624 - 160W 6.5" Two-Way Active Professional Studio Monitor (Single)
- AC Power Cord
- Limited 1-Year Warranty
