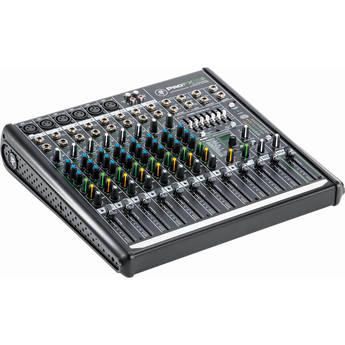

Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer with Built-In FX

Model: PROFX12V2

MACKIE Warranty
Image coming big
Image coming big
Mackie profx12v2 2
Mackie profx12v2 3
Mackie profx12v2 4
Mackie profx12v2 5
Mackie profx12v2 6
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • Guaranteed Brand New Products
  • All Products Sold by Manufacturer Authorized Retailers
  • 30 Day Return Policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.

Specifications

Packaging Info

Package Weight 13.85 lb
Box Dimensions (LxWxH) 18.8 x 17.8 x 7.1"

General Information

Frequency Response Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output):
Attenuation and Crosstalk Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
Common Mode Rejection Ratio Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
Impedance Mic In 3.8 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
Maximum Voltage Gain Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 50 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 76 dB FX Send: 90 dB Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 30 dB XLR Main Output: 56 dB Monitor Send: 56 dB FX Send: 70 dB Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB XLR Main Output: 46 dB Monitor Send: 46 dB FX Send: 60 dB Tape Input to: XLR Main Output: 36 dB USB Input to:XLR Main Output: 36 dB Stereo Return to: XLR Main Output: 26 dB
Equivalent Input Noise 150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -125 dBu
Meters Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
USB USB Recording to Computer (Mac & PC)
Phantom Power 48 VDC to all mic channels simultaneously
AC Power Requirements Power Consumption: 30 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
Operating Temperature 32 - 104˚F (0 - 40˚C)
Dimensions 3.6 x 14.6 x 14.1" (91 x 370 x 358 mm)
Weight 9.0 lb (4.1 kg)
Digital Effects I/O: mono input / stereo output Number of Presets: 16
Residual Output Noise All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -80 dBu
Product Highlights
  • 12 Input Channels
  • 6 Low-Noise Mackie Vita Mic Preamps
  • USB Recording to Computer (Mac & PC)
  • 16 FX Including Reverb, Delay & Chorus
  • Per Channel 3-Band EQ
  • Dual 7-Band Graphic EQ
  • Stereo RCA Tape Input
  • Monitor & FX Sends, Stereo & FX Returns
  • Hi-Z Input for Direct Guitar & Bass
In The Box
  • Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Cord
  • Limited 1-Year Warranty
